Device for supporting and attaching panels or the like, and roof system comprising such a device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 8, 2015
Grant Date -
May 30, 2013
app pub date -
Jul 7, 2011
filing date -
Jul 9, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

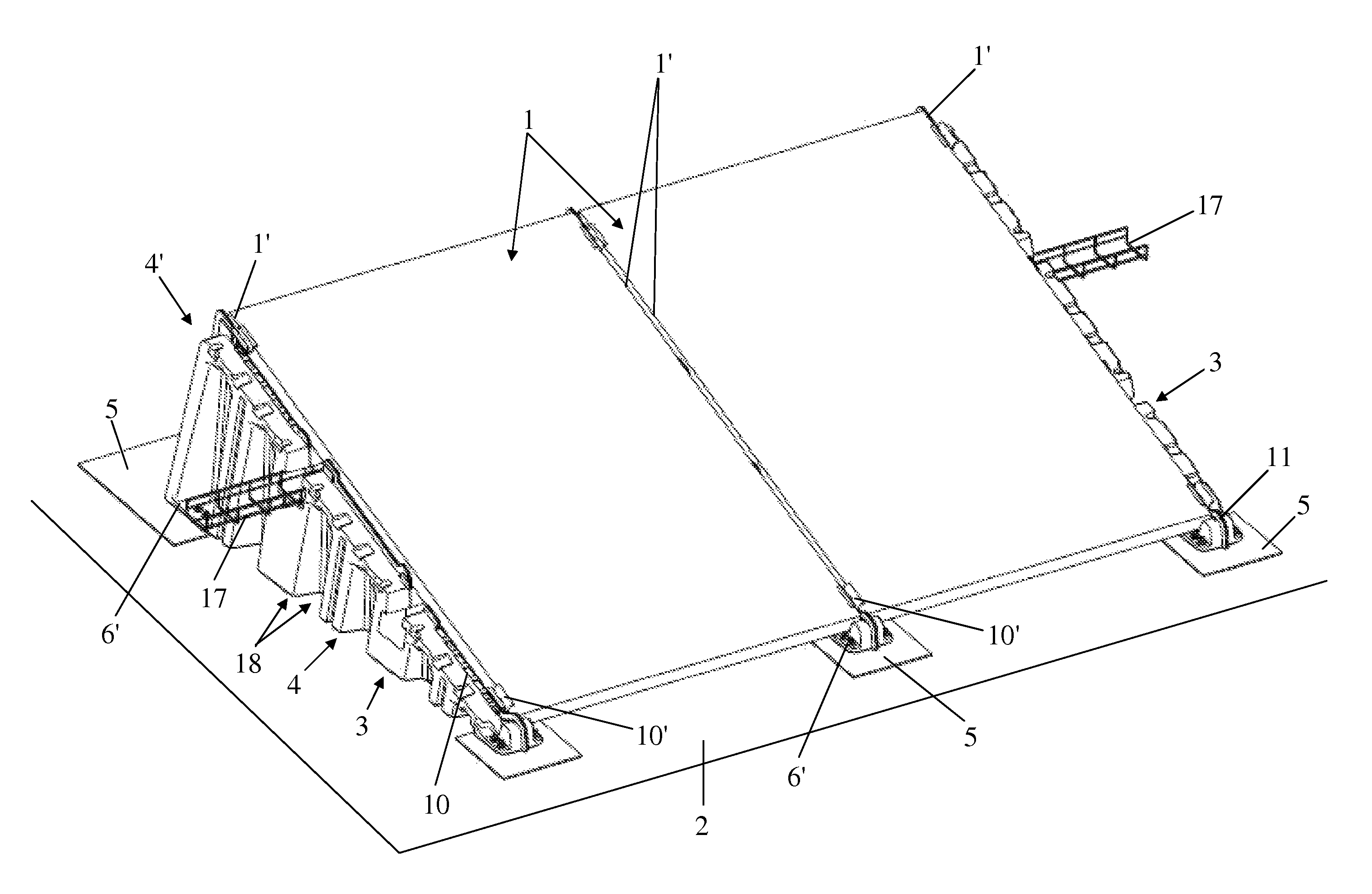

A device for supporting and attaching panels to a roof including an added sealing covering on the surface thereof includes brackets for tiltedly supporting and bearing the panels, including a bottom bearing portion and at least one top portion for supporting the panels, the brackets having a triangular structure and consisting of a hollow body. The device is characterized in that the bottom portion (4) of the brackets (3) is provided, on the underside thereof, with at least one added plate (5) secured to the console (3), wherein the plate(s) (5) consist of a material or contain a material that is compatible with and/or similar to the layer or the surface coating of the roof covering (2), and are bonded to the layer or the covering by an adhesive bond, and in that the top portion (4′) provides bearing surfaces for the edges of the panels or profile members for mounting such panels.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- H01L Class
- 19146 Applications Filed
- 15997 Patents Issued To-Date
- 83.56 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H01L Class
- 10.46 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 8, 2027 |
