Method and system for measuring noise of a magnetic head
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 8, 2015
Grant Date -
Jan 26, 2012
app pub date -
Sep 13, 2010
filing date -
Jul 23, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

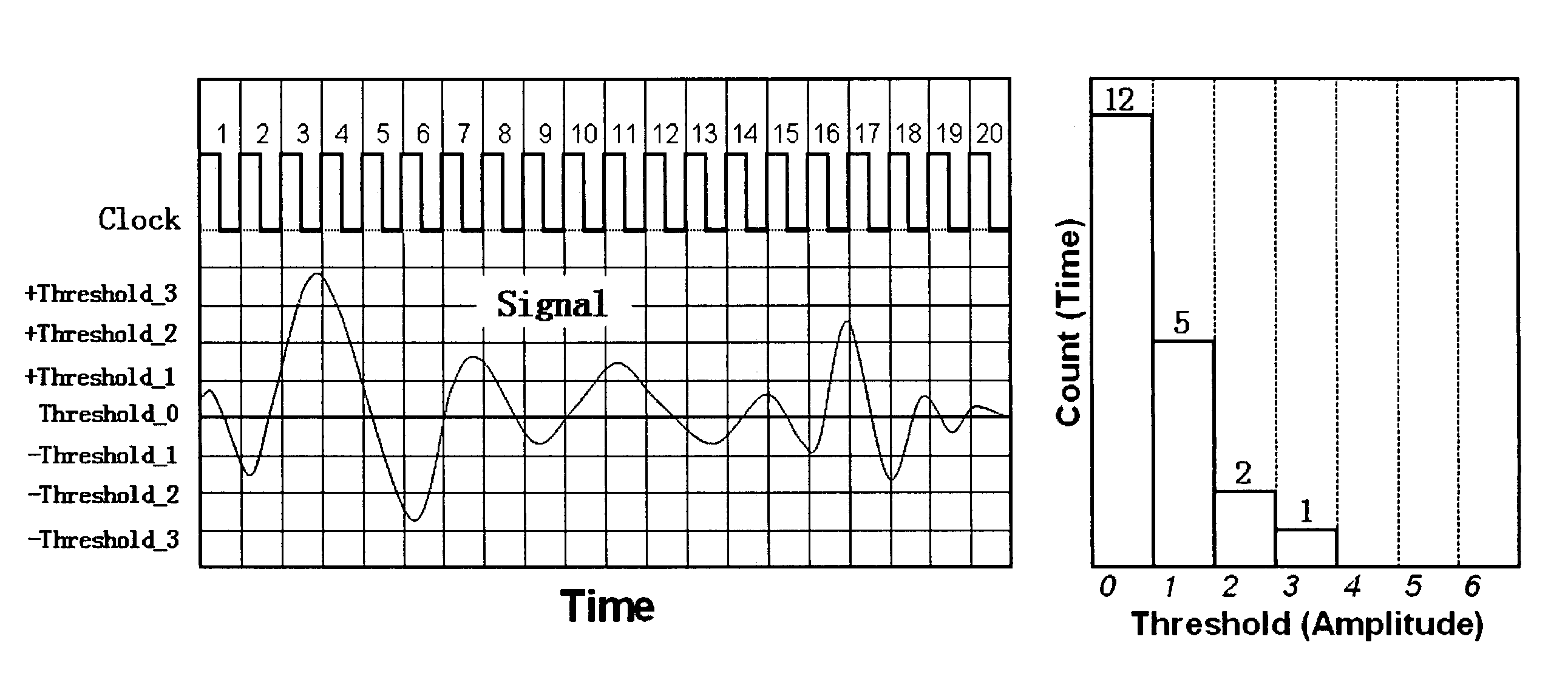

A method for measuring noise of a magnetic head includes setting a plurality of threshold values, applying bias current or voltage to a read element of the magnetic head, applying an external transverse magnetic field to the magnetic head, amplifying output signal from the read element to produce an amplified signal, filtering the amplified signal to produce a filtered signal, generating an enable signal for each threshold value in a predetermined time window by a counting control means with input signals which include the filtered signal and the threshold value, measuring the cumulative time duration of each enable signal, making an amplitude-duration distribution according to the cumulative time durations and the threshold values, calculating a plurality of parameters according to the amplitude-duration distribution and analyzing the parameters with a plurality of predetermined criteria to determine the defects of the magnetic head. Accordingly, the invention also discloses a system for measuring noise of a magnetic head.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G11B Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 8, 2027 |
