Servo press apparatus driven by multiple motors
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 8, 2015
Grant Date -
Dec 1, 2011
app pub date -
Mar 8, 2011
filing date -
May 28, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

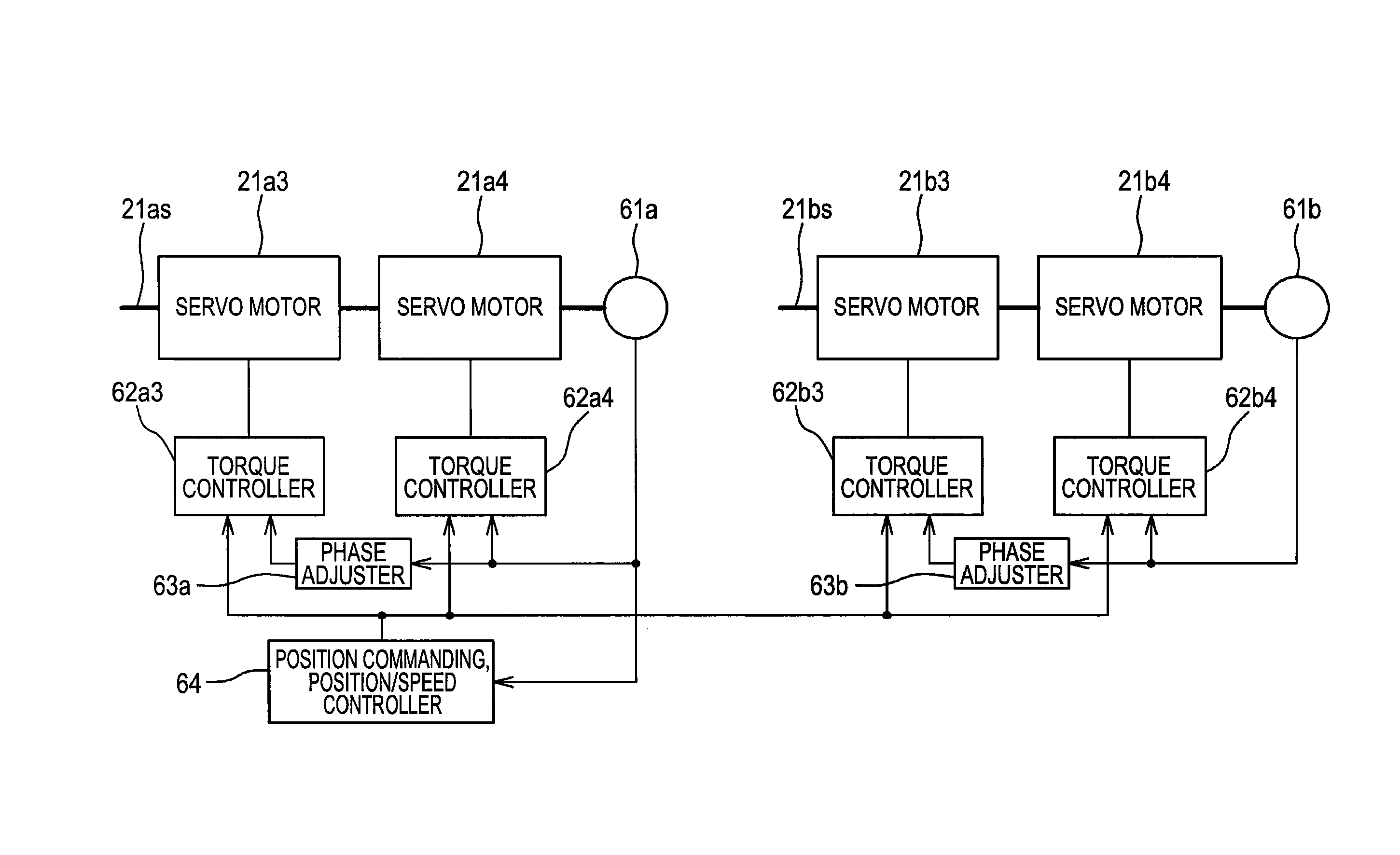

This invention is intended to provide a large-capacity servo press apparatus driven by multiple motors, the servo press apparatus enabling a drive at a high efficiency and with reduced torque pulsations in a simple structure. The disclosed servo press comprises a slide that is moved up and down by a plurality of crank structures (including eccentric rings and connecting rods), main gears that drive the crank structures, a plurality of drive gears interlinked with the main gears directly or indirectly, intermediate gears interlinked with the main gears directly or indirectly, and servo motor sets connected to drive shafts to drive the drive gears. In each of the servo motor sets, a plurality of servo motors are directly connected to each servo motor shaft.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- B30B Class
- 167 Applications Filed
- 130 Patents Issued To-Date
- 77.85 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B30B Class
- 15.70 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 8, 2027 |
