Leveling machine with multiple rollers
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 8, 2015
Grant Date -
Jul 12, 2012
app pub date -
Sep 30, 2009
filing date -
Sep 9, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

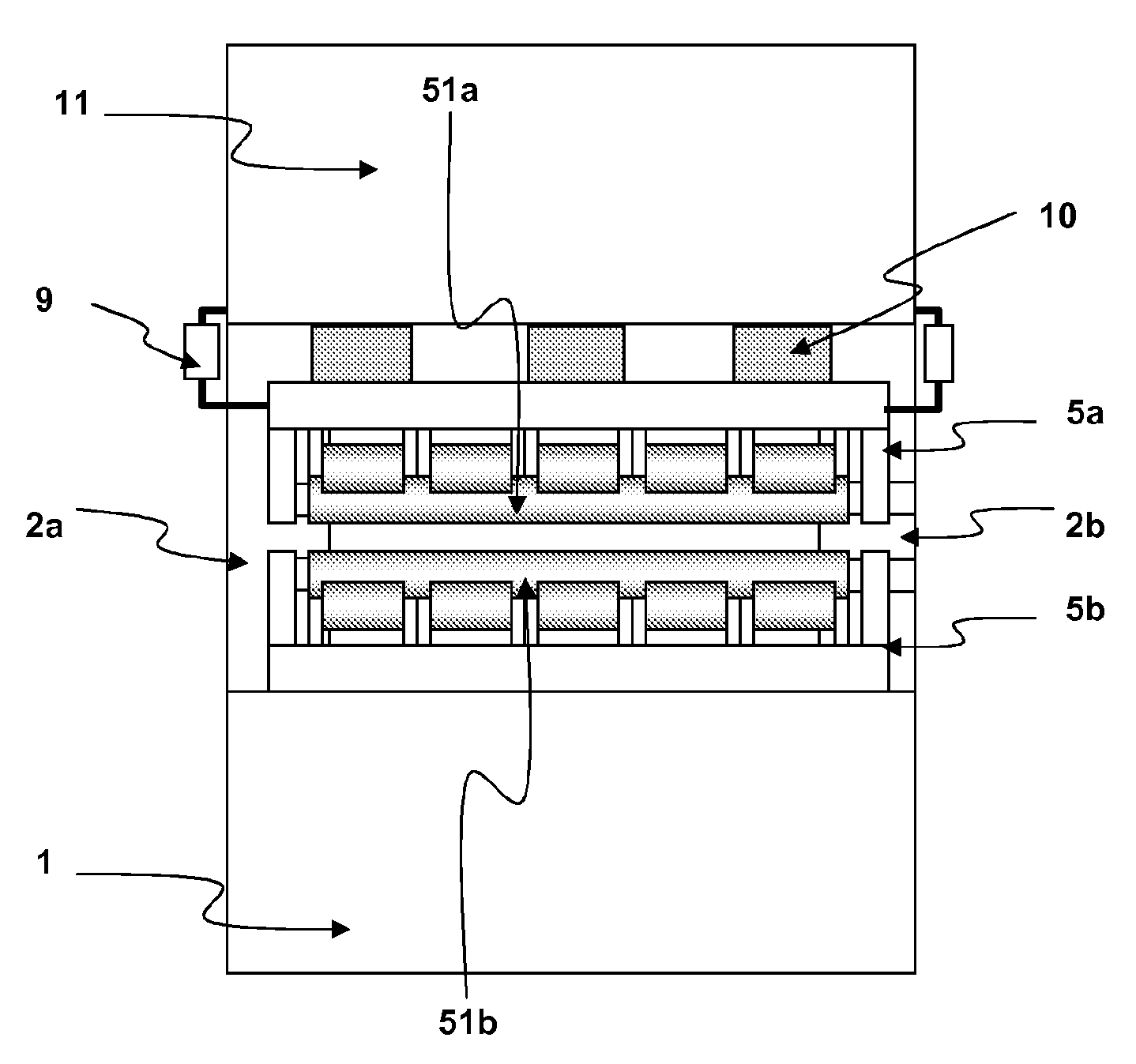

A machine for leveling a strip of material contains a lower stationary back plate from which extends vertical beams located on either side of a longitudinal axis. A lower stationary leveling chassis and an upper leveling chassis are provided. Each chassis contains spaced apart rollers. An upper stationary back plate is rigidly secured to the upper end of each beam, and a moving coupling device couples the upper leveling chassis to the upper back plate. A device allows a vertical translational movement of the upper leveling chassis in relation to the upper stationary back plate between a rest position where the rollers of the upper leveling chassis are moved away from rollers of the lower leveling chassis and a leveling position where rollers of the upper leveling chassis are moved towards rollers of the lower leveling chassis and the strip is forced to travel along an undulating path.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2009 Application Filing Year
- B21D Class
- 871 Applications Filed
- 436 Patents Issued To-Date
- 50.06 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B21D Class
- 19.97 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 8, 2027 |
