Device for receiving notes of value and method for determining the stock of a drum storage on the basis of a motor position
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 1, 2015
Grant Date -
Oct 23, 2014
app pub date -
Apr 18, 2014
filing date -
Apr 19, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

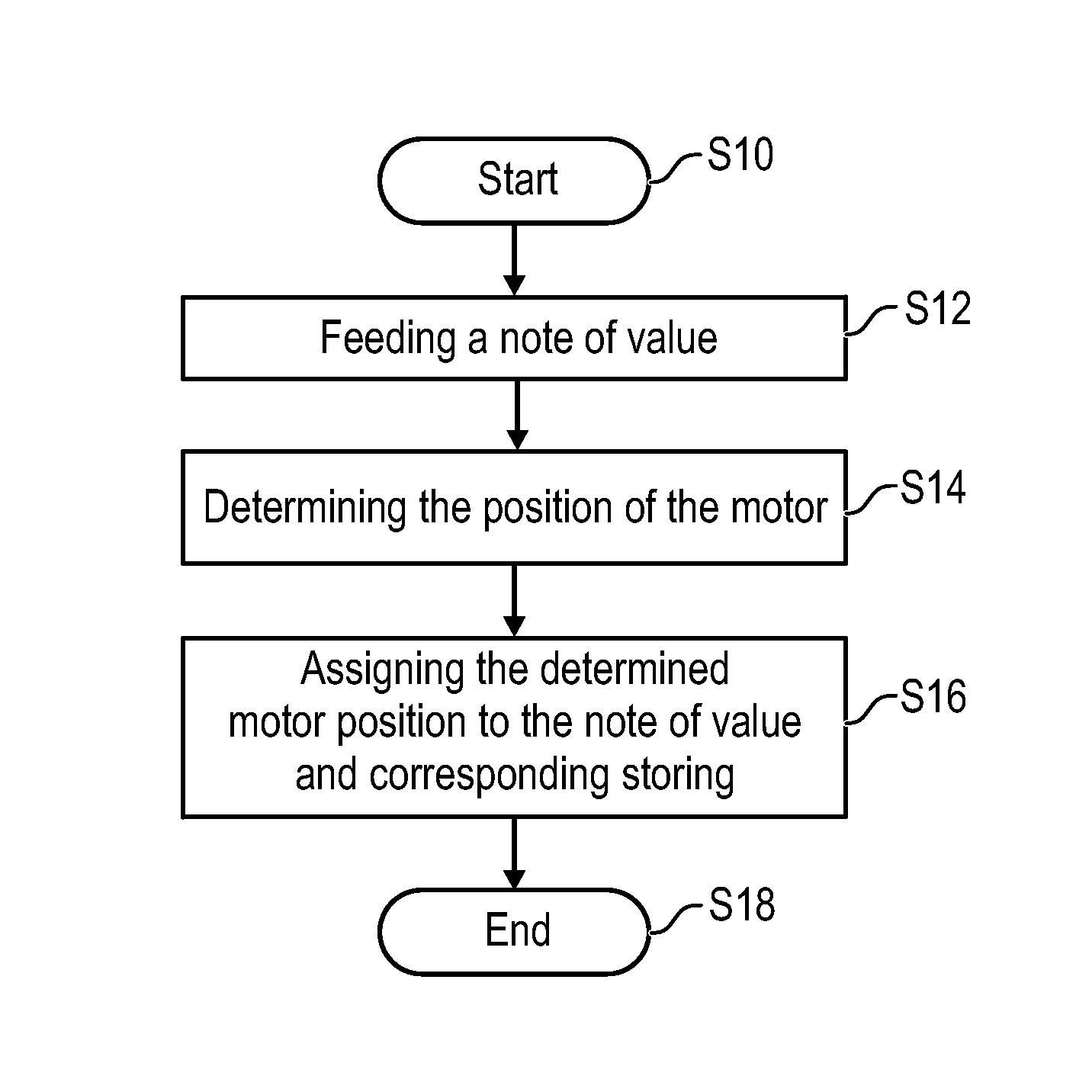

The invention relates to a method for determining the stock of notes of value of a drum storage (22). For at least a part of the notes of value, the current motor position is determined after winding up the note of value and stored such that it is unambiguously assigned to the respective note of value. For determining the stock of the drum storage (22), the current motor position is determined and compared with the stored motor positions. Dependent on the result of this comparison, the stock is determined. Further, the invention relates to a device (10, 22, 30) for receiving notes of value, which comprises a drum storage (22), a memory element and a control unit (26), the control unit (26) implementing the above-described method steps.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- G07D Class
- 254 Applications Filed
- 218 Patents Issued To-Date
- 85.83 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G07D Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 1, 2027 |
