Adjustable flush valve and assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 1, 2015
Grant Date -
Apr 4, 2013
app pub date -
Sep 28, 2012
filing date -
Sep 30, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

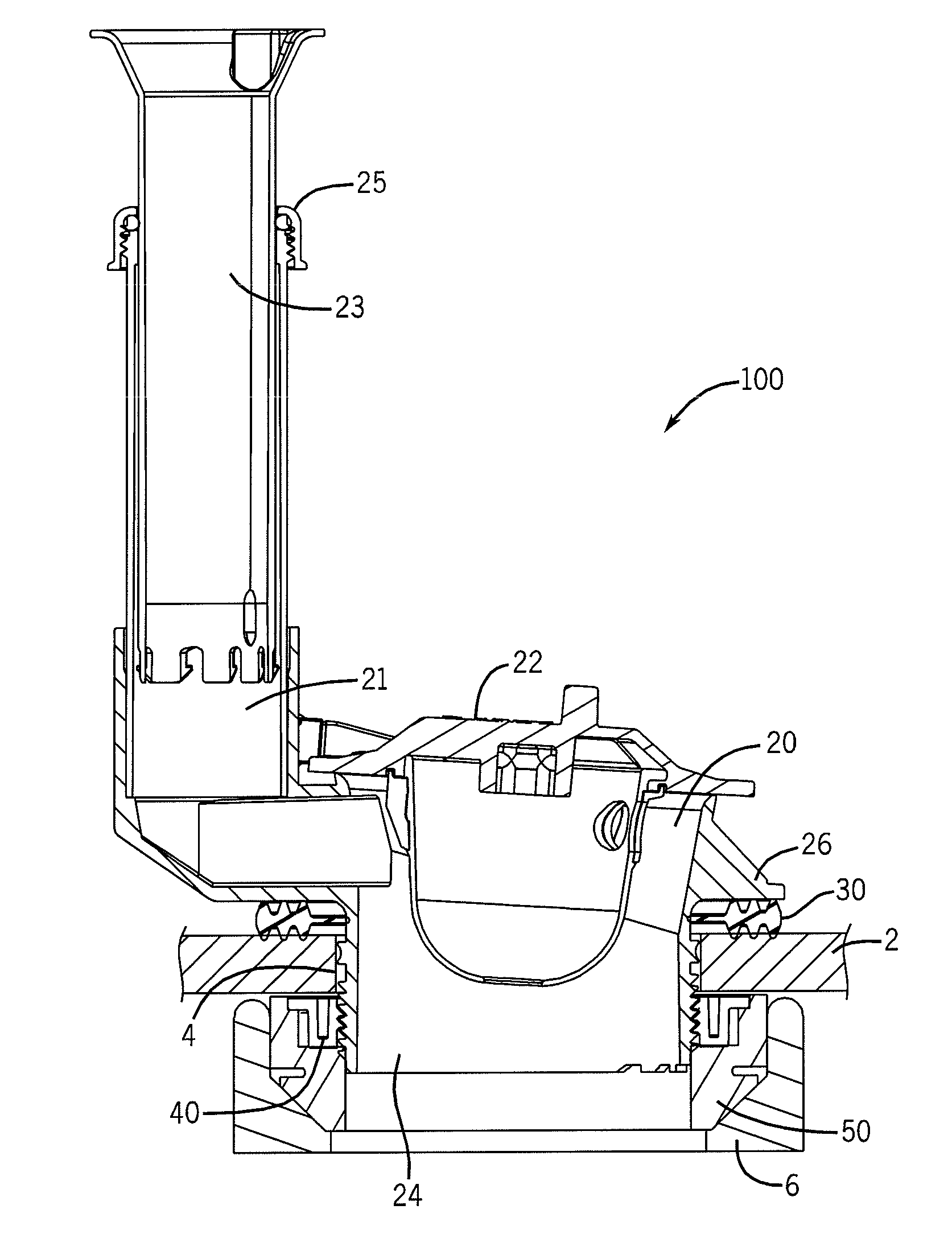

A tank to bowl sponge gasket is provided for use with a flush valve used in the drain hole of a toilet tank, the tank sitting above the throat of a toilet bowl. The flush valve comprises a flange above the bottom wall, a lower externally threaded portion that extends through the drain hole and an internally threaded lock nut which complements the lower threaded portion of the flush valve, a tank seal disposed between the flange and the tank wall, and the gasket is disposed between the lower threaded portion of the flush valve, the lock nut and the tank wall and the throat of the toilet bowl. The gasket has a generally L-shaped upper portion with a circumferential outer surface, a circumferential inner surface and a bottom shelf, a lower portion comprising a circumferential inner surface and an inwardly tapered outer surface, and a circumferential trim line.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- E03D Class
- 116 Applications Filed
- 100 Patents Issued To-Date
- 86.21 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E03D Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 1, 2027 |
