Low profile material handling system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 1, 2015
Grant Date -
Aug 9, 2012
app pub date -
Feb 9, 2012
filing date -
Feb 9, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

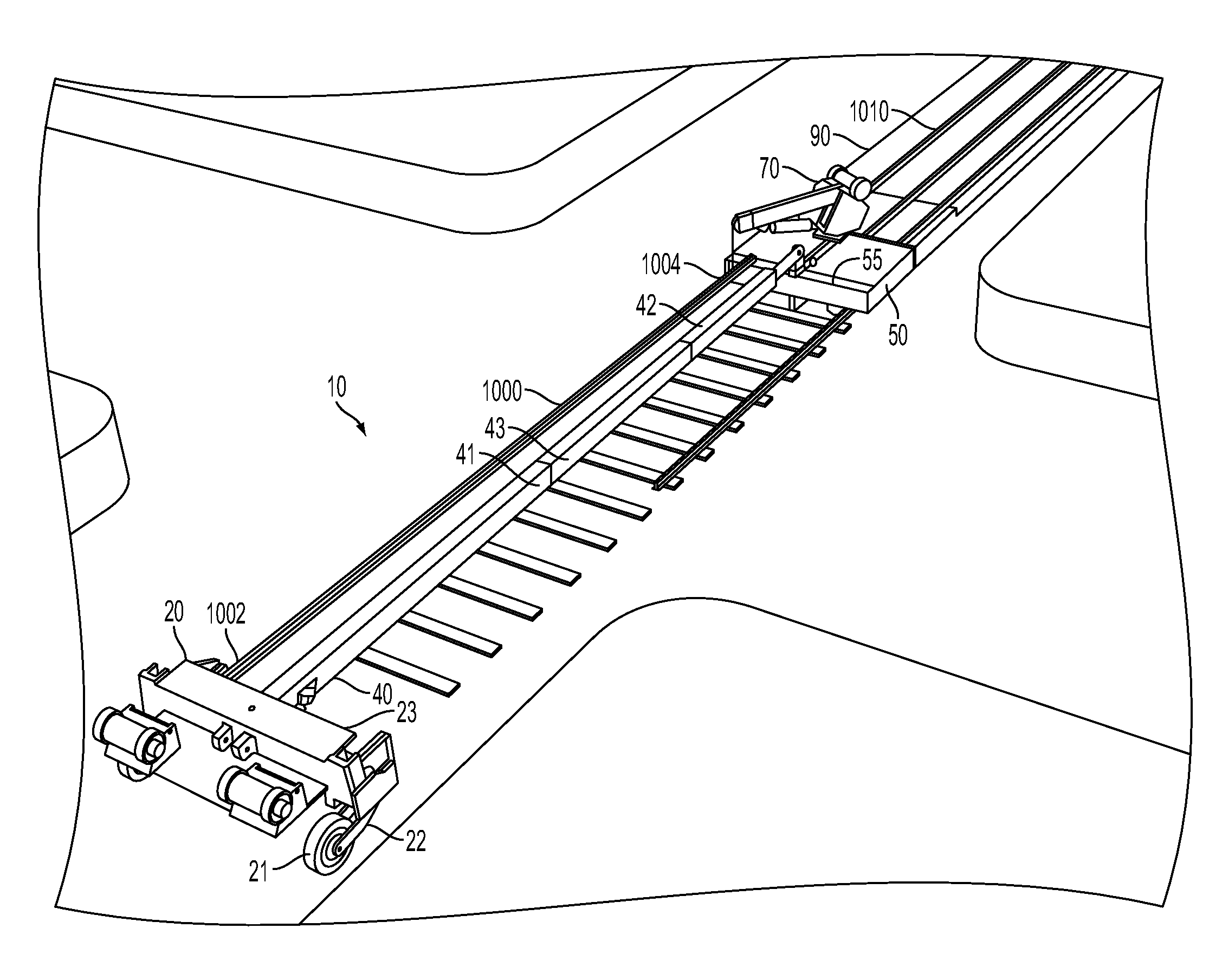

A material handling system has a shuttle car attached by an extension element either directly to a supply car or to a staging car attached to a supply car. An object manipulator moves an object into place for acquisition by the shuttle car which is brought into position by retraction of the extension element. The extension element extends and moves the shuttle car away to draw the object most of the way from the staging car. A second object manipulator opposite to the shuttle engages the object before the object is pulled completely from the supply car. The shuttle car and the second manipulator lower the object. Objects may also be retrieved and placed on the supply car. In some embodiments, a track on the staging and supply cars may allow a manipulator to travel along the cars to acquire objects.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B65G Class
- 1128 Applications Filed
- 889 Patents Issued To-Date
- 78.82 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B65G Class
- 16.98 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 1, 2027 |
