Wheel for pedal-assisted bikes
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 1, 2015
Grant Date -
Feb 27, 2014
app pub date -
Mar 12, 2012
filing date -
Mar 16, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

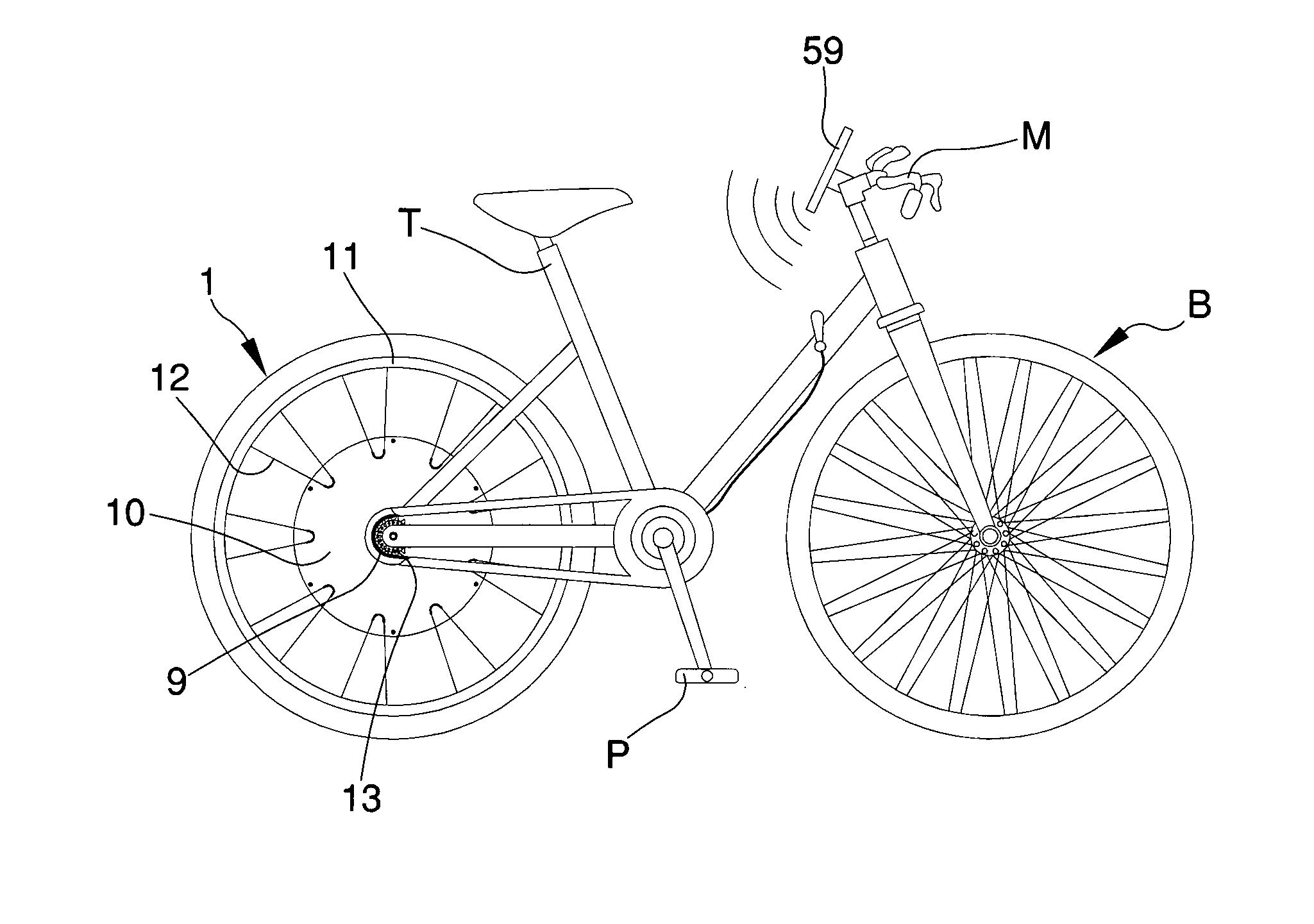

Wheel for pedal-assisted bikes includes:
- a fixed structure associable with the frame of a bike having a driving pedal crank; a circle element mounted on the structure for rotation around a main rotation axis;a propulsion disc rotatably mounted on the structure and connectable to the crank;an electric motor associated with the structure and for cooperating with the propulsion disc to motorize the circle element; andtransmission elements for transmitting rotary motion from the disc to the circle element which include a first detection device for detecting the force transmitted to the circle element from the disc, and including:a first plate associated in rotation with one of the disc and the circle element;a second plate associated with the other of the disc and the circle element;at least a motion transmission part between the first plate and second plate.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- B60K Class
- 6.45 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 1, 2027 |
