Nozzle insert device and methods for dispensing head atomizer
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 1, 2015
Grant Date -
Aug 29, 2013
app pub date -
Feb 29, 2012
filing date -
Feb 29, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

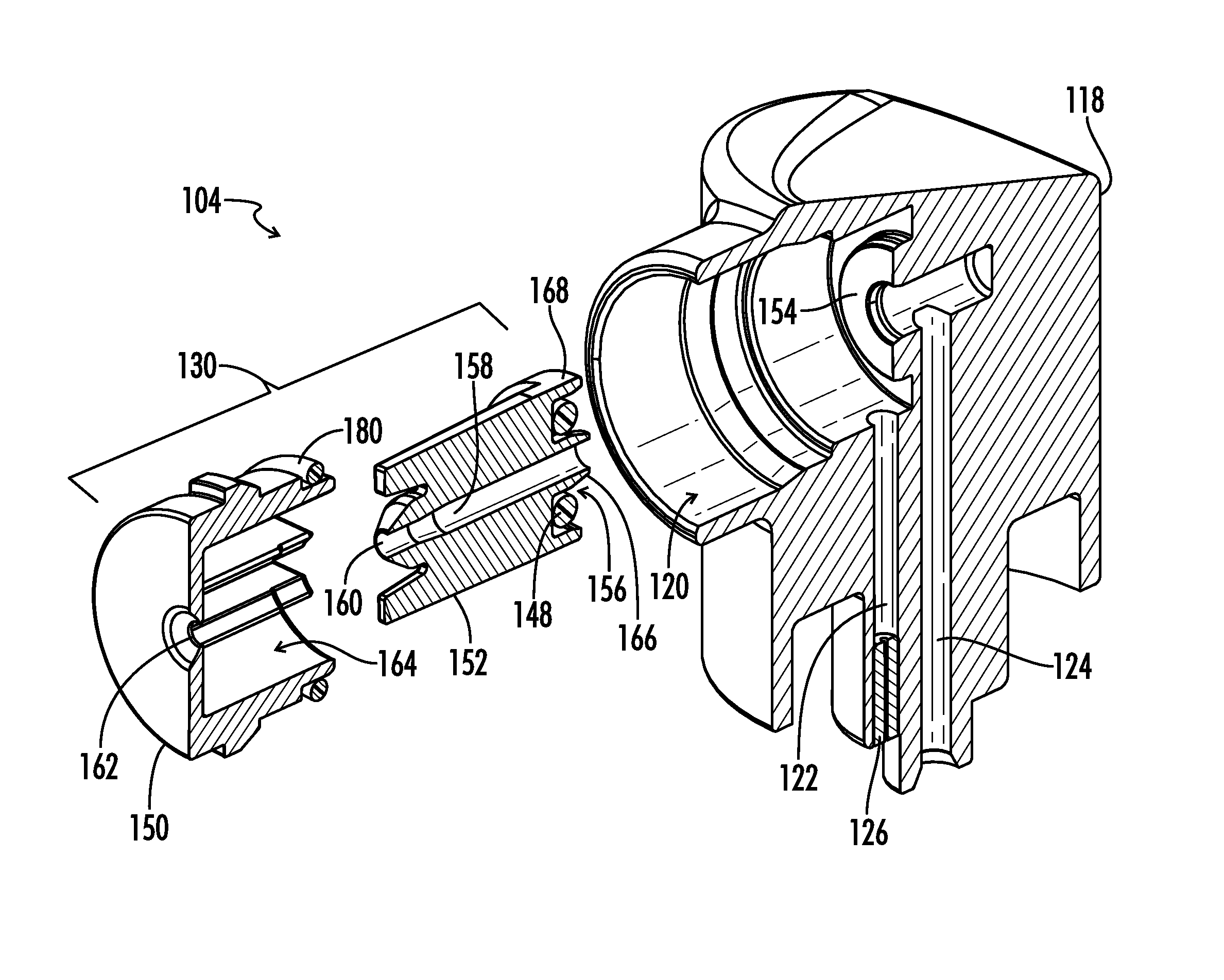

A dispensing head for emitting an atomized spray of liquid droplets includes an actuator and a nozzle insert. The actuator includes a gas duct and a liquid duct and may be attached to a container housing a propellant gas and a liquid product. The nozzle insert includes at least one modular structure that can be installed in an actuator socket on the actuator. The nozzle insert includes a pressure cap defining a pressure chamber having an exit orifice. A liquid conduit is disposed in the pressure chamber and defines a liquid supply channel having a liquid supply channel exit opening. The nozzle insert is configured to form a reflux cell in the liquid supply channel upstream of the liquid supply channel exit opening to achieve flow blurring interaction between the liquid product and the gas propellant.
