Device for stacking securities, in particular bank notes
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 25, 2015
Grant Date -
Mar 3, 2011
app pub date -
May 15, 2009
filing date -
May 16, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

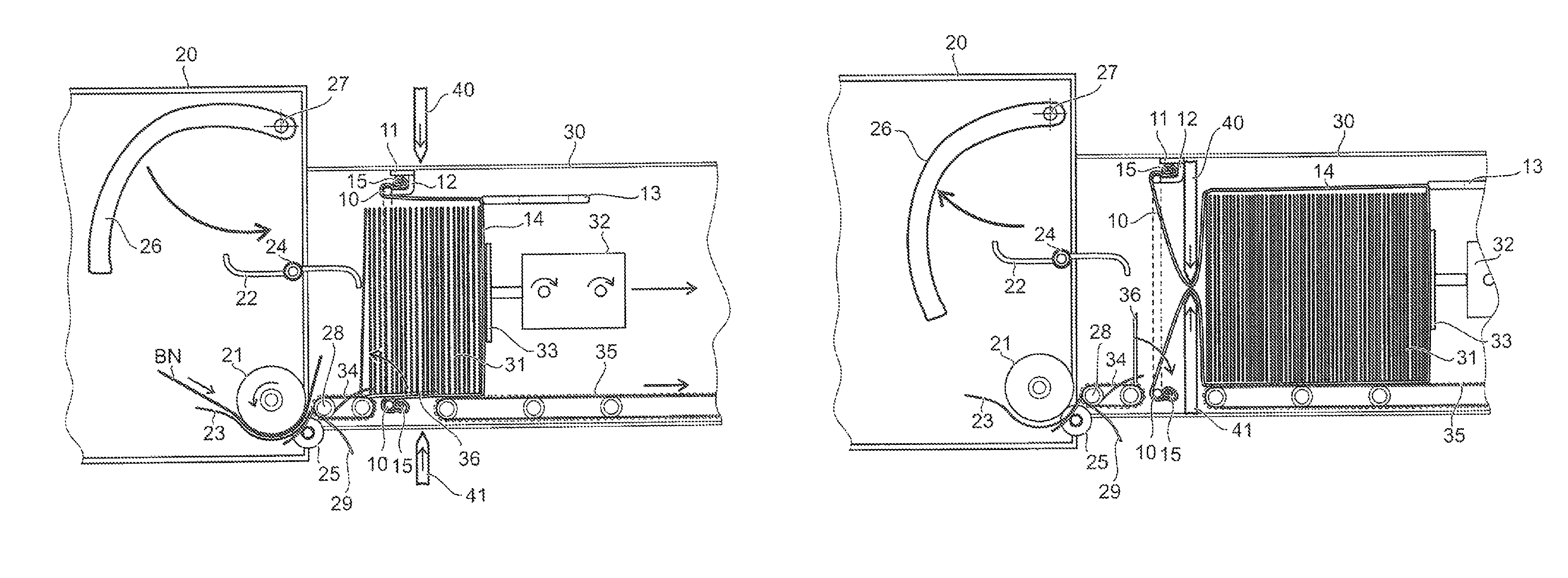

An apparatus for stacking financial documents, in particular banknotes. The financial documents (BN) are stacked upright in a stacking area on a stacking surface, and the stacking operation is terminated when a predetermined stack length is reached. The stack formation takes place in a receiving bag (14) which is stationarily held by a holding frame (10) in the entry area of the financial documents (BN) and which forms a stock (15) around the circumference of the holding frame (10). With increasing stack length, receiving bag material is automatically taken from the stock (15) so that the length of the receiving bag (14) continuously adapts to the length of the value note stack (31). At the end of the stacking operation the receiving bag (14) is closed at its opening, e.g. by welding, and can subsequently be removed from the stacking area and can be used as a transport container or, respectively, a security bag.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2009 Application Filing Year
- G07D Class
- 83 Applications Filed
- 67 Patents Issued To-Date
- 80.73 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- G07D Class
- 12.24 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 25, 2027 |
