Oven door
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 25, 2015
Grant Date -
Jan 24, 2013
app pub date -
Jul 19, 2012
filing date -
Jul 21, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

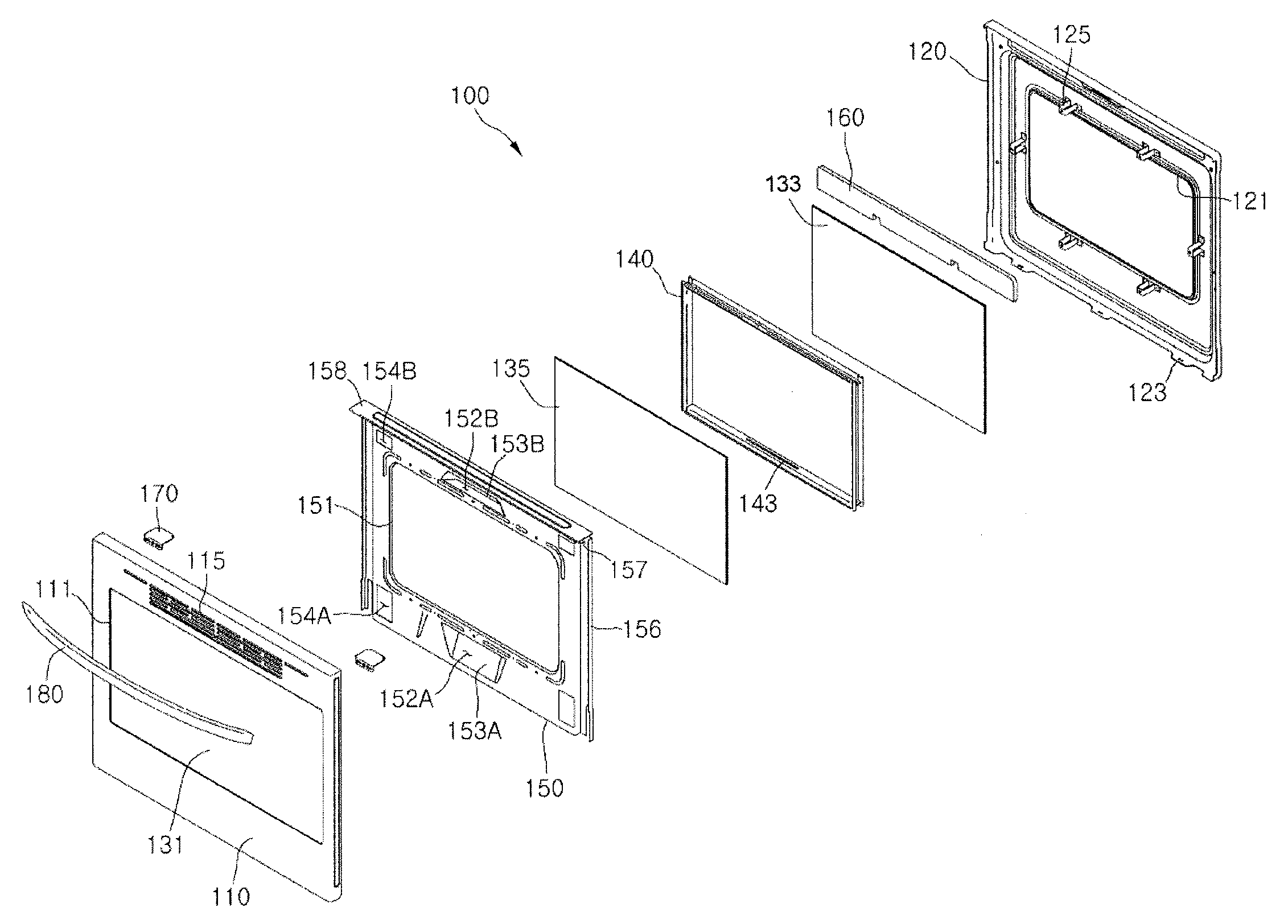

An oven door is provided. The oven door includes a door panel having an air discharging opening part configured to discharge air flowing in the oven door, a door frame coupled to the door panel, the coupled door panel and door frame providing at least one air introducing hole in the bottom of the door to introduce air into the door, an inner cover located between the door panel and the door frame, the inner cover having an inner opening, the inner cover and the door frame defining a space to allow airflow, an inner glass located in the inner opening of the inner cover, and a glass holder supporting the inner glass. Air introduced through the air introducing hole flows through the space between the door frame and the inner cover at both lateral sides of the glass holder.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- F23M Class
- 32 Applications Filed
- 29 Patents Issued To-Date
- 90.63 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 10 Citation Count
- F23M Class
- 17.39 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 25, 2027 |
