Batch carbonator and method of forming a carbonated beverage
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 25, 2015
Issued Date -
N/A
app pub date -
Mar 8, 2013
filing date -
Mar 8, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

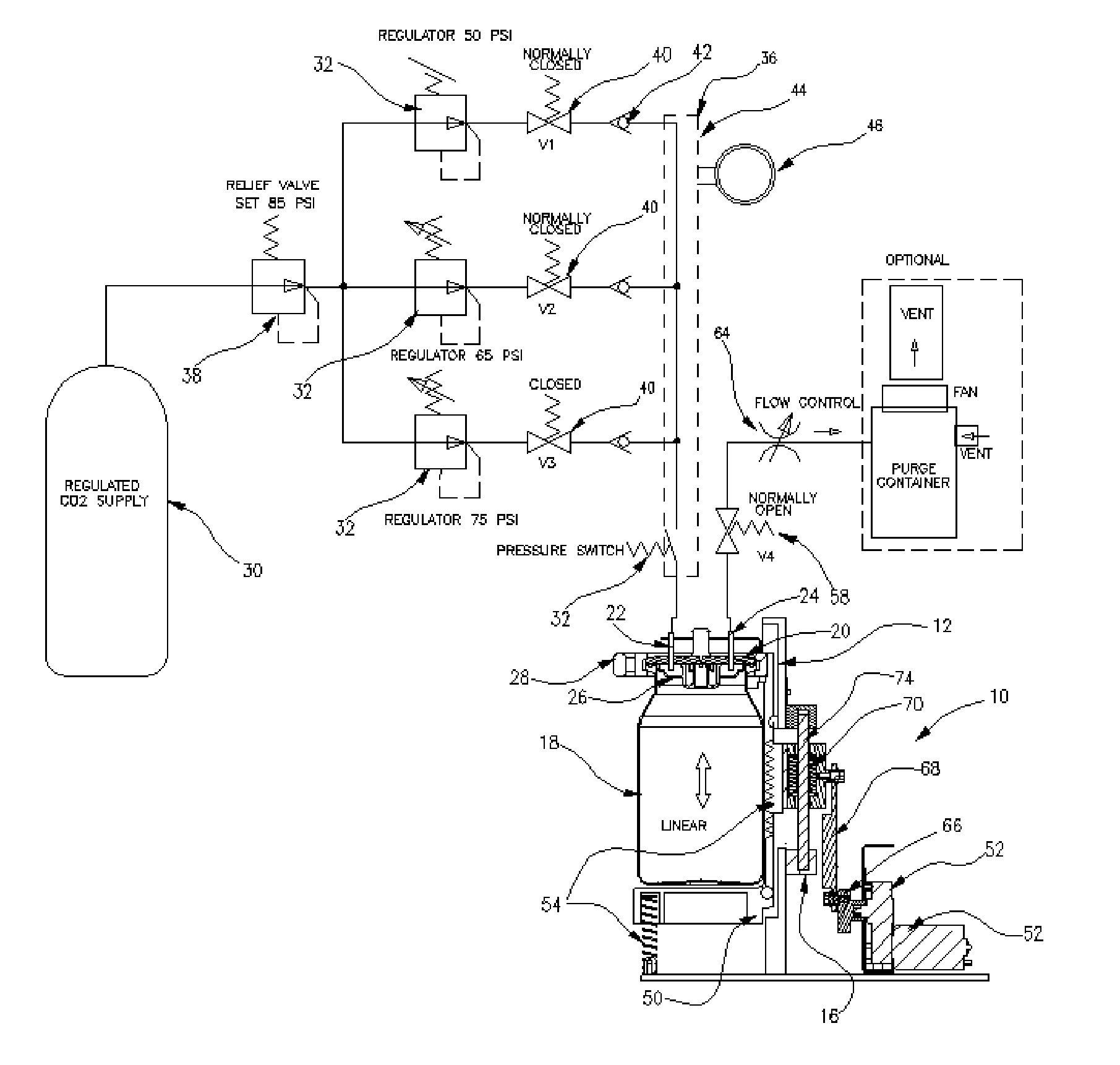

A batch carbonation apparatus includes a housing defining a vessel cavity. The housing includes an agitation mechanism. The pressure vessel includes a cap that has a CO2 inlet and a CO2 outlet is provided. The pressure vessel also includes a seal. The pressure vessel is moveable into an out of the vessel cavity. A locking mechanism is provided and is attached to the agitation mechanism to removably lock the cap and seal relative to the pressure vessel. A CO2 source is connected to a plurality of valves where each valve has a differing pressure. A selection toggle is attached to the housing. A control mechanism is coupled to the plurality of valves. A user selects a desired carbonation level using the selection toggle and CO2 is introduced to the pressure vessel at a specified pressure wherein the agitation mechanism agitates liquid within the pressure vessel forming a carbonated beverage having a selected carbonation level. Also disclosed is a process of forming a carbonated beverage in a batch.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- A23L Class
- 1180 Applications Filed
- 834 Patents Issued To-Date
- 70.68 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 22 Citation Count
- A23L Class
- 98.72 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 25, 2027 |
