Toilet and support bars for the disabled
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 25, 2015
Grant Date -
Oct 24, 2013
app pub date -
Jun 17, 2013
filing date -
Sep 30, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

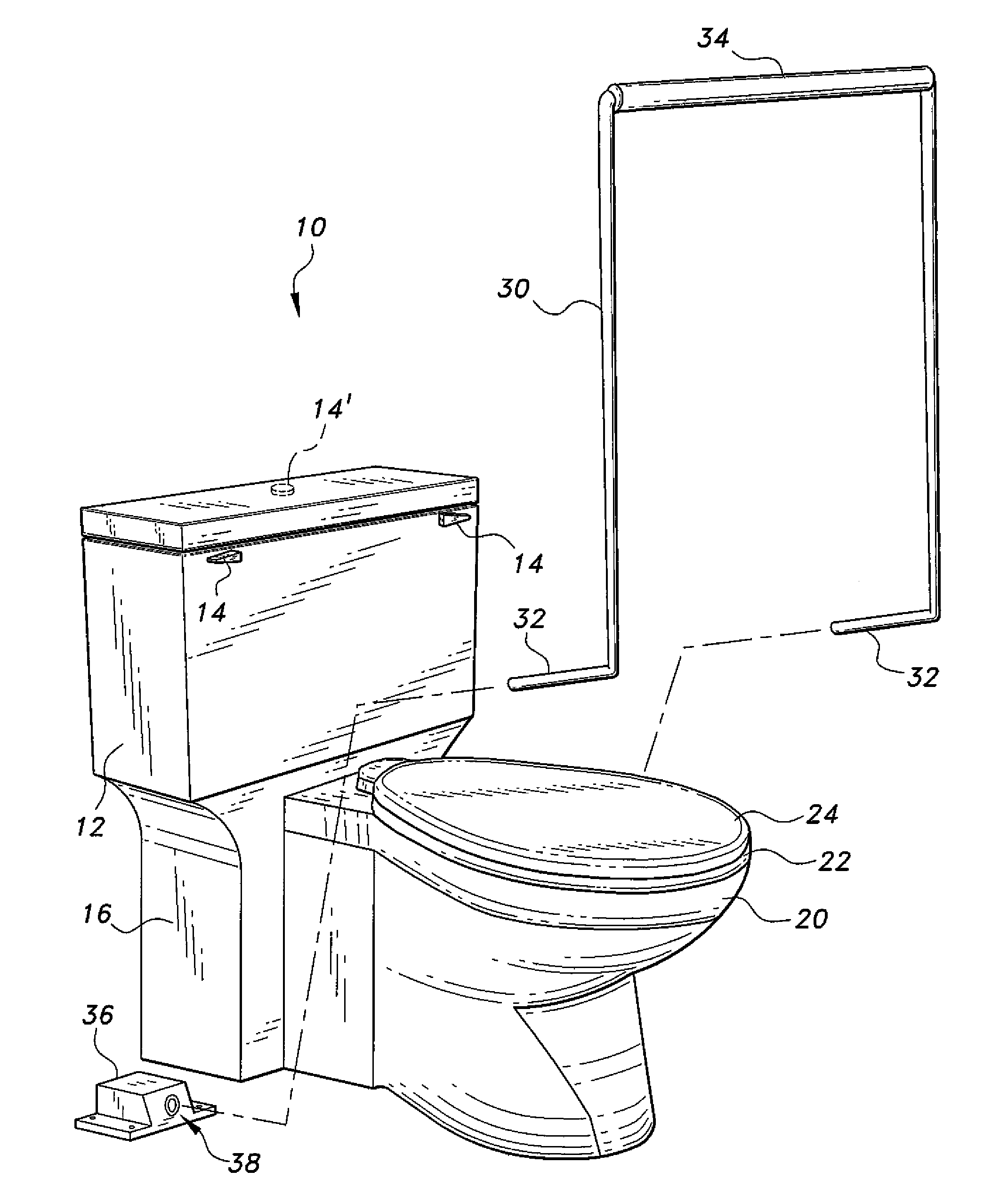

The toilet and support bars for the disabled has a toilet bowl and toilet seat configured to face the toilet tank, thereby enabling disabled and physically debilitated persons to move forward to sit on the toilet seat. The toilet has a pedestal on which the tank is mounted, and an inverted U-shaped support bar having legs supported by the building structure, to provide stability for the disabled person to use the toilet. The support bar includes a crossbar handle above the level of the tank that a disabled person may grasp for assistance in moving forward onto the toilet seat and rearward off the toilet seat. The handle may have a resilient grip. The support bar may also include stabilizers for maintaining the support bar in a rigid and fixed position so that the user is assured to find the necessary support.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- A47K Class
- 351 Applications Filed
- 307 Patents Issued To-Date
- 87.47 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- A47K Class
- 16.15 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 25, 2027 |
