Refresh charging method for an assembled battery constituted from a plurality of lead-acid storage batteries and charging apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 18, 2015
Grant Date -
Nov 20, 2014
app pub date -
Sep 3, 2012
filing date -
Sep 3, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

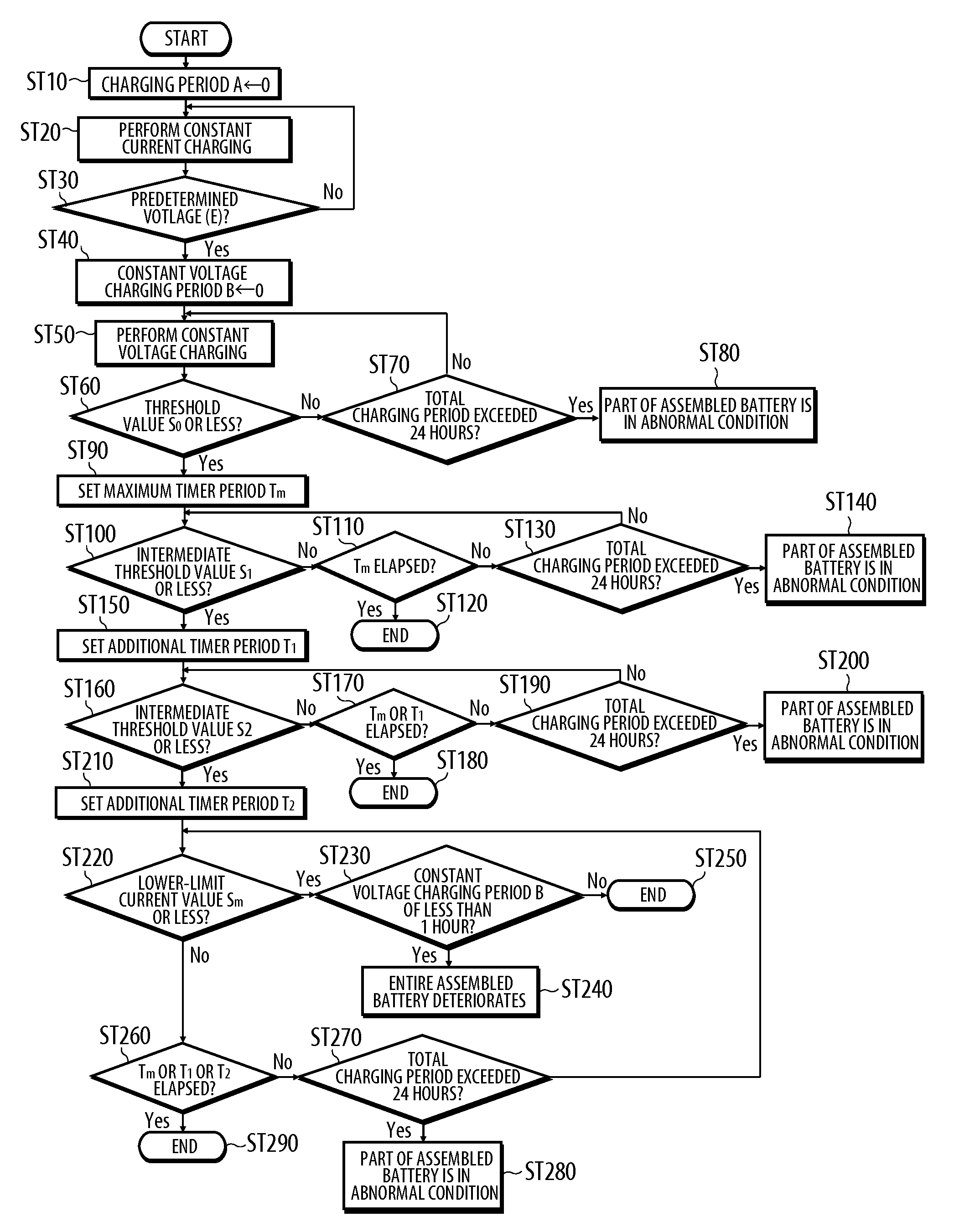

Provided are a refresh charging method and a refresh charging apparatus for an assembled battery constituted from lead-acid storage batteries, by which a necessary charging rate may be performed while shortening a charging period. In a constant voltage charging mode, n intermediate threshold values S1 to Sn which decrease stepwisely are set between a predetermined threshold value S0 and a lower-limit current value, and n additional timer periods T1 to Tn are set where n is an integer equal to or larger than one. Counting of the n additional timer periods T1 to Tn is respectively started when the charging current reaches the n intermediate threshold values S1 to Sn. A maximum timer period Tm and the n additional timer periods T1 to Tn are set to satisfy a relationship of Tm>T1> . . . >Tn. Charging is stopped when the counting of one of the maximum timer period Tm and the n additional timer periods T1 to Tn is completed before the lower-limit current value is detected.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- H02J Class
- 3166 Applications Filed
- 2735 Patents Issued To-Date
- 86.39 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- H02J Class
- 8.76 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 18, 2027 |
