Method of converting an open-top gas burner arrangement into an infrared radiant burner arrangement
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 18, 2015
Grant Date -
Dec 6, 2012
app pub date -
May 29, 2012
filing date -
Jun 1, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

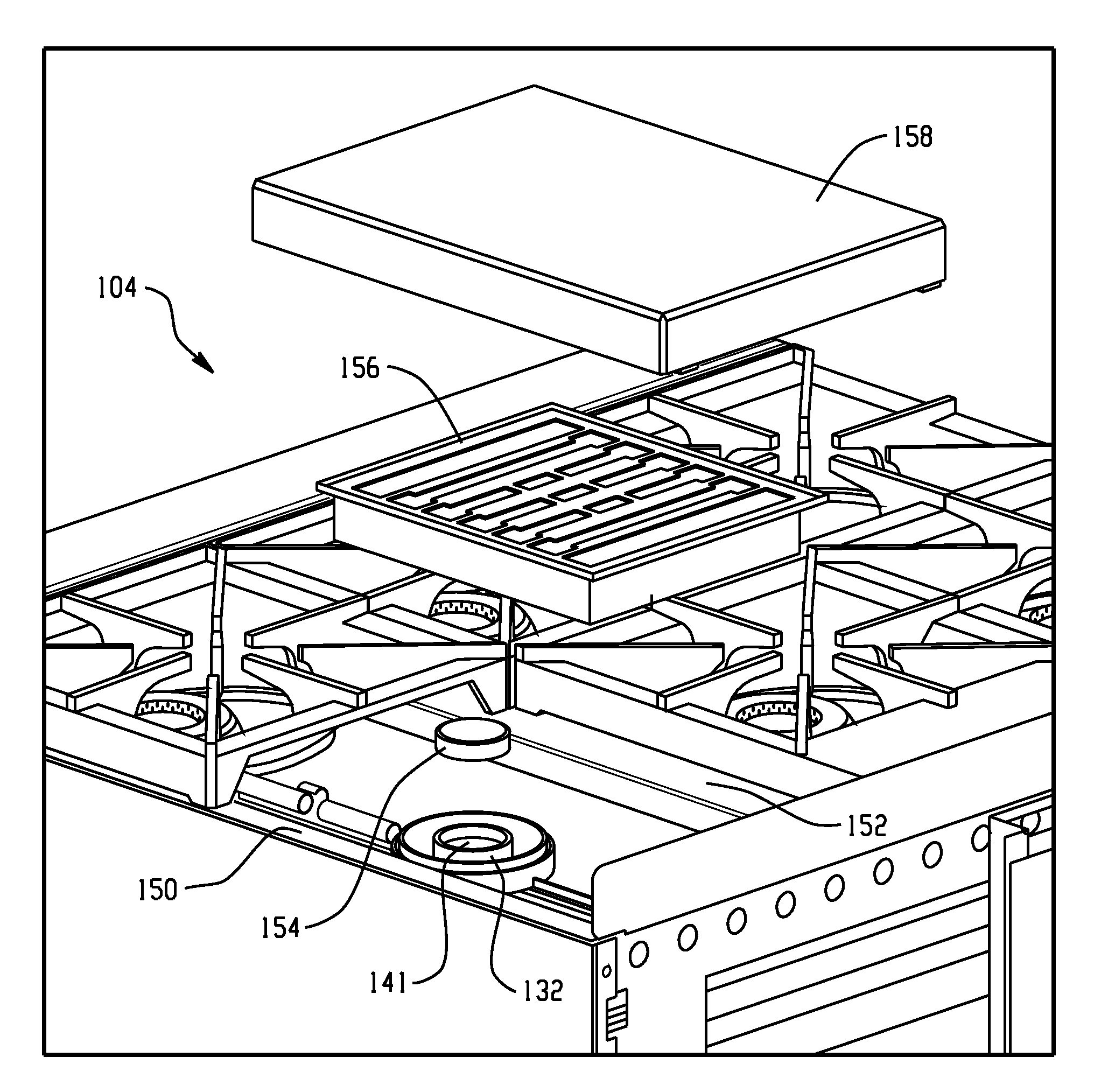

A method for modifying an open-top burner system to a radiant burner system involves providing a stovetop having an open top burner system which includes a grate, burner head, and a venturi burner. The venturi burner includes an open top annular channel about a central opening. Further provided are a central hole plug, an emitter, and a radiant burner head assembly. To modify the stovetop, the grate and burner head are removed from the stovetop and the central plug is used to block airflow through the central opening. The radiant burner head assembly is next positioned over the venturi burner and the emitter is positioned over the radiant burner head assembly. This series of steps thereby converts the assembly from a traditional open-top burner system to a radiant burner system. A kit may be provided to facilitate the process.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- F24C Class
- 192 Applications Filed
- 158 Patents Issued To-Date
- 82.30 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F24C Class
- 19.49 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 18, 2027 |
