Compensated compressed gas storage systems
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 18, 2015
Grant Date -
Jul 12, 2012
app pub date -
Jan 13, 2012
filing date -
Jan 14, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

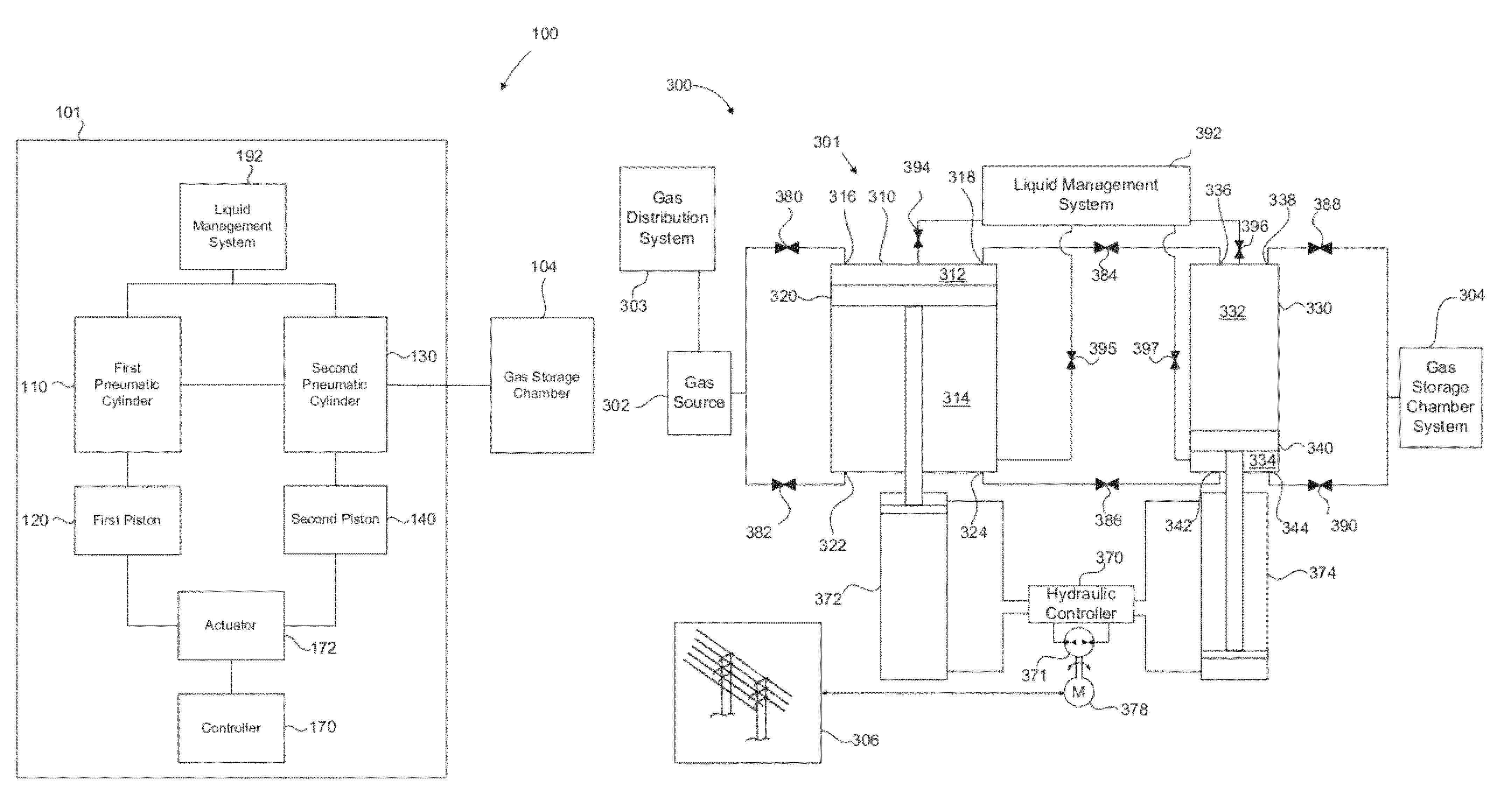

Systems, devices and methods for the compression, expansion, and/or storage of a gas are described herein. An apparatus suitable for use in a compressed gas-based energy storage and recovery system includes a pneumatic cylinder having a working piston disposed therein for reciprocating movement in the pneumatic cylinder, a hydraulic actuator coupled to the working piston, and a hydraulic controller fluidically coupleable to the hydraulic actuator. The apparatus is fluidically coupleable to a compressed gas storage chamber which includes a first storage chamber fluidically coupleable to the pneumatic chamber, and a second storage chamber is fluidically coupleable to the first storage chamber. The first storage chamber is disposed at a first elevation and is configured to contain a liquid and a gas. The second storage chamber is disposed at a second elevation greater than the first elevation, and is configured to contain a volume of liquid.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- H02J Class
- 8.76 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 18, 2027 |
