Cover opening-and-closing support mechanism employing gas spring, and automatic transaction apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 18, 2015
Grant Date -
Sep 13, 2012
app pub date -
Dec 1, 2010
filing date -
Mar 2, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

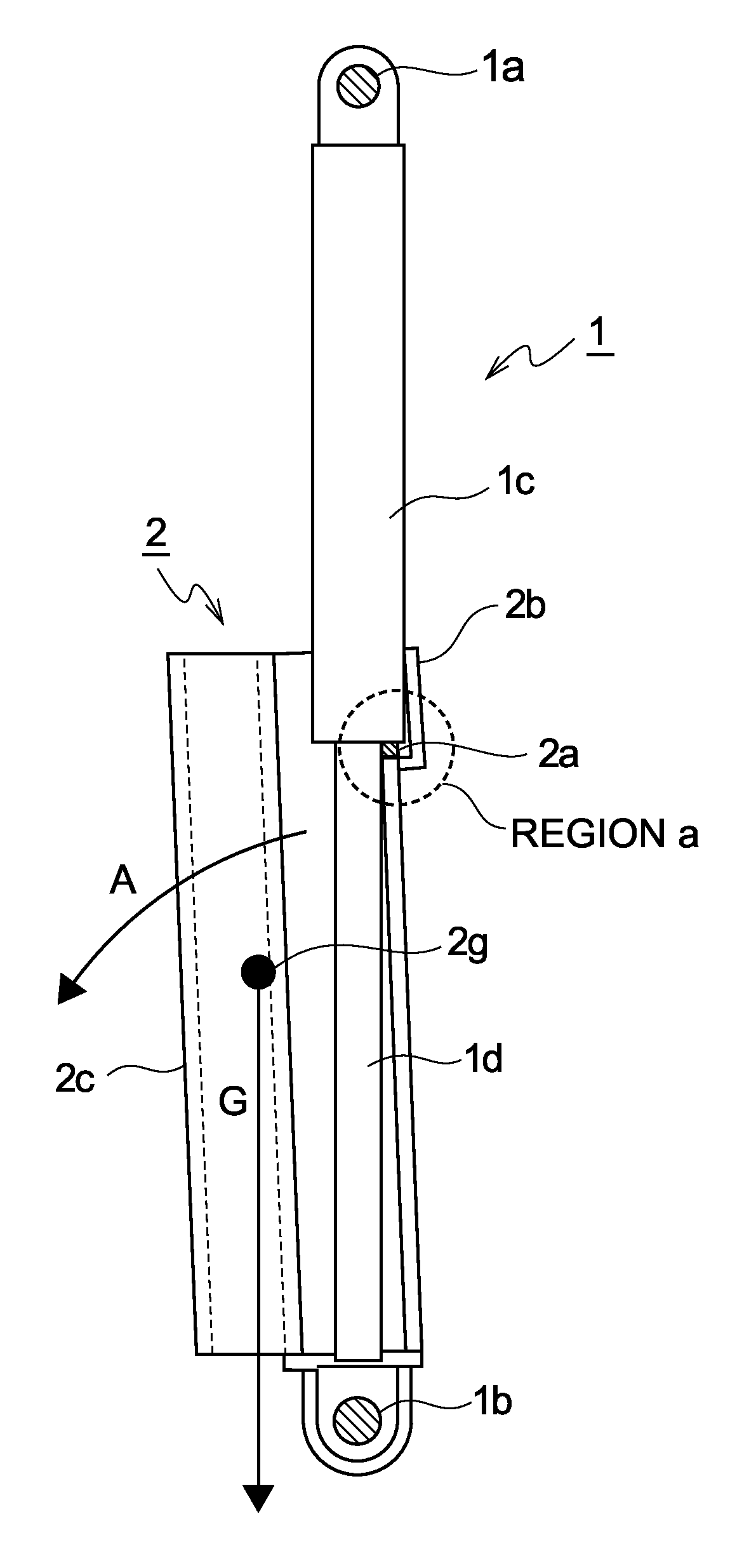

A cover opening-and-closing support mechanism is provided that reliably locks a gas spring, and in which a rod section of a gas spring is not damaged by a stopper portion. The cover opening-and-closing support mechanism includes: a gas spring equipped with pivot points at both end portions and including a cylinder section and a rod section; a stopper portion rotatably provided at the pivot point at a first of the end portions, the stopper portion making contact with the cylinder section when the gas spring has been extended so as to lock the gas spring; a gas spring stopper including a limiter portion that makes contact with the cylinder section before the stopper portion makes contact with the rod section; and a release handle portion for releasing the locking, provided at the gas spring stopper on substantially an opposite side to the stopper portion, such that the gas spring stopper swings towards substantially the opposite side to the stopper portion due to a weight of the release handle portion.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2010 Application Filing Year
- E05C Class
- 248 Applications Filed
- 151 Patents Issued To-Date
- 60.89 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- E05C Class
- 13.60 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 18, 2027 |
