Unit for picking-up a tubular blank in a flattened configuration and for opening out the tubular blank
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 18, 2015
Grant Date -
Aug 8, 2013
app pub date -
Dec 21, 2012
filing date -
Jan 3, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

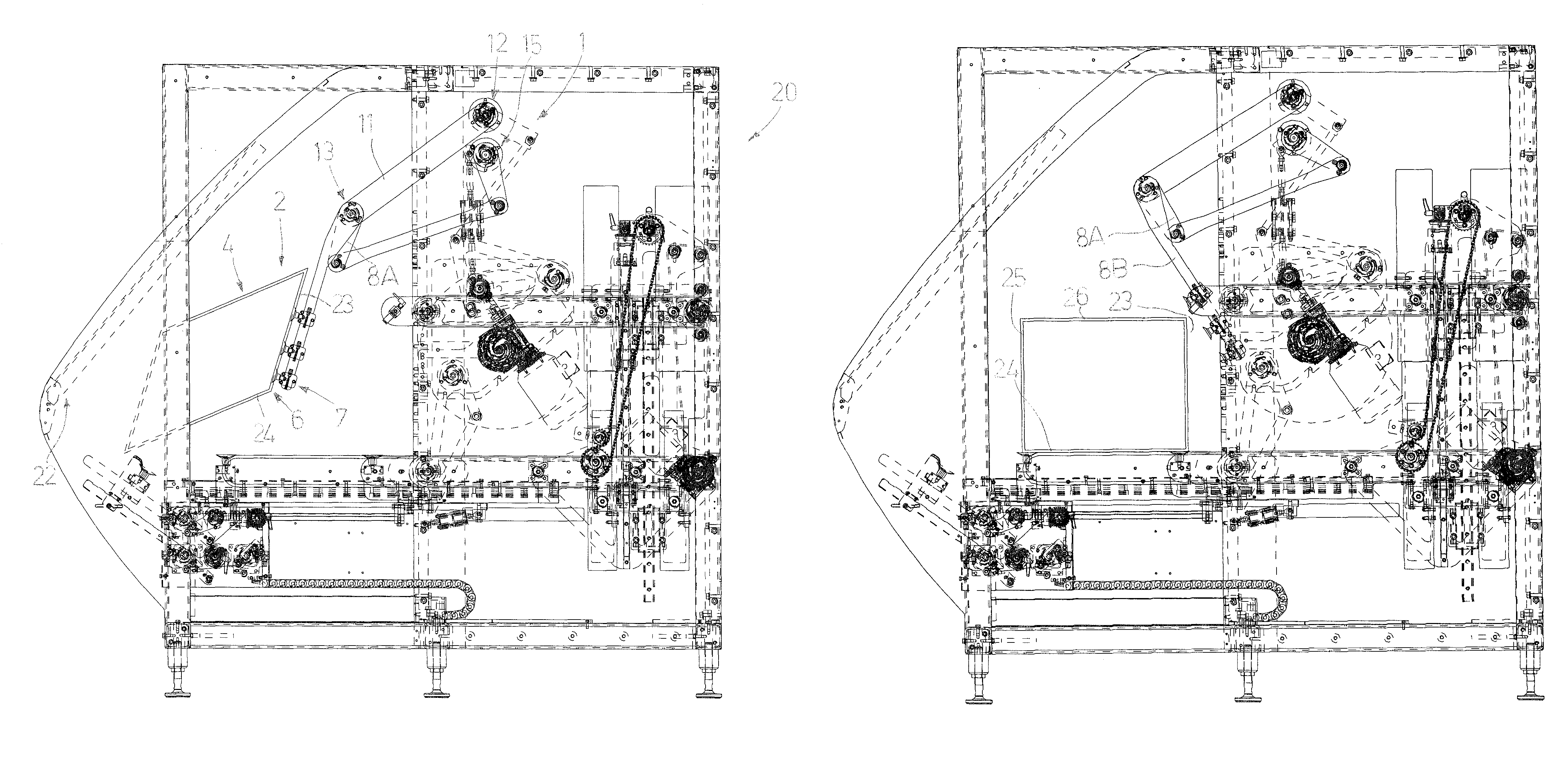

A unit for picking-up a flattened tubular blank and for opening out the blank has gripping devices borne by a pick-up member, a frame, and a first arm hinged to the frame and to the pick-up member. A second arm is hinged to the frame, at a hinge axis being arranged at a lower height than the first arm hinge axis. A third arm is hinged to the second arm and which to the pick-up member. The first arm and the second arm are activatable in phase relation with one another. The unit is configured such that the pick-up member picks up the flattened tubular blank from the pick-up position (P), rests the tubular blank on a rest plane, and opening-out the tubular blank. The unit then moves the pick-up member towards the pick-up position (P), passing over the opened-out tubular blank.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B31B Class
- 217 Applications Filed
- 125 Patents Issued To-Date
- 57.61 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B31B Class
- 28.79 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 18, 2027 |
