Cart braking system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 18, 2015
Grant Date -
Nov 21, 2013
app pub date -
May 16, 2012
filing date -
May 16, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

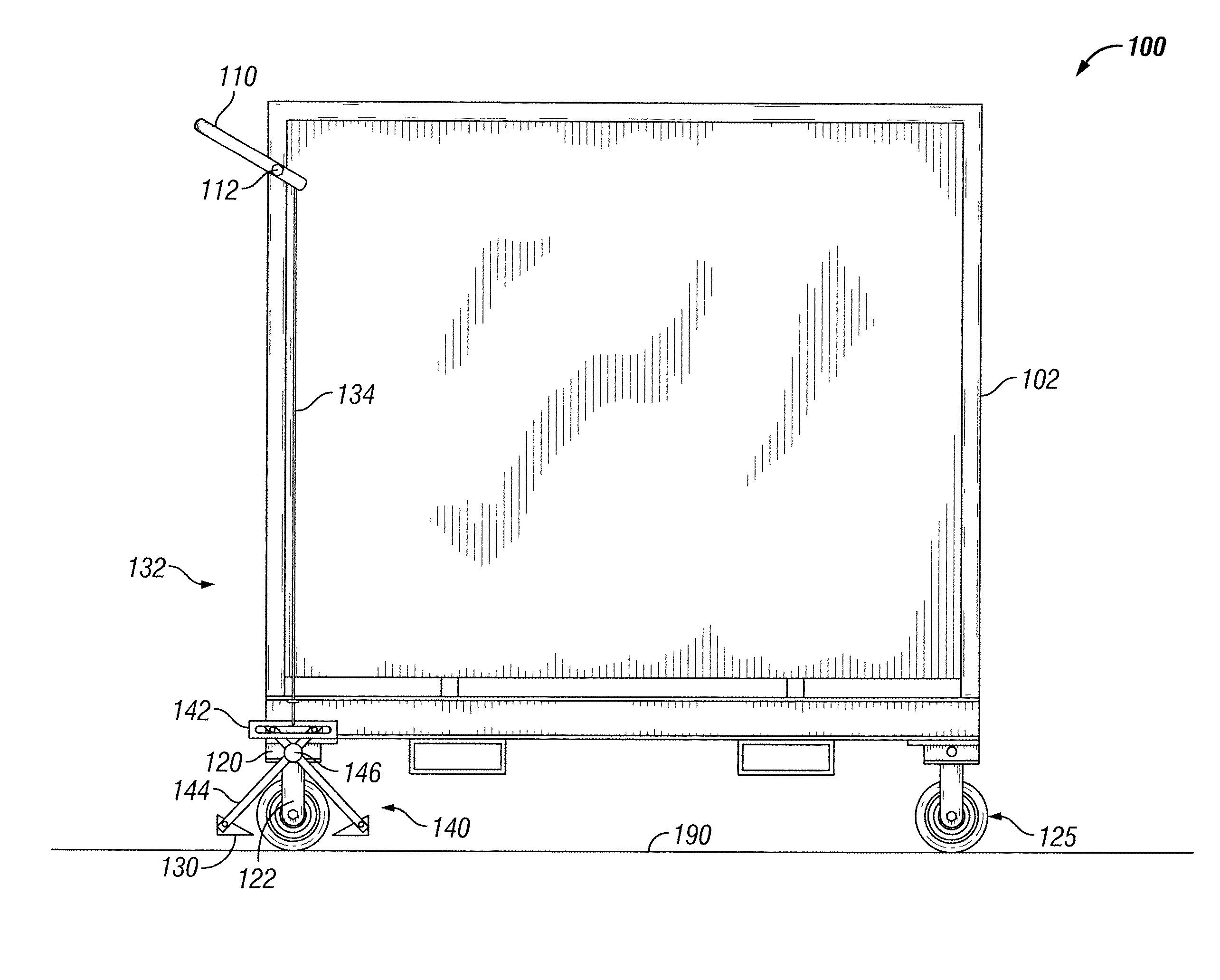

A braking system for a cart is described herein. The braking system can include a pair of chocks positioned proximate to a wheel of a wheel assembly, where the wheel assembly is coupled to a cart frame. The braking system can also include a handle mechanically coupled to the cart frame, where the handle has an engaged position when a force is applied to the handle, and where the handle has a disengaged position when no force is applied to the handle. The braking system can also include a brake release mechanism coupled to the pair of chocks and the handle. When the handle is in the disengaged position, the pair of chocks are engaged with the wheel and the brake release mechanism is disengaged. When the handle is in the engaged position, the pair of chocks are disengaged from the wheel and the brake release mechanism is engaged.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B60T Class
- 686 Applications Filed
- 614 Patents Issued To-Date
- 89.51 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- B60T Class
- 11.39 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 18, 2027 |
