Electrical connection device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 11, 2015
Grant Date -
Jul 31, 2014
app pub date -
Oct 9, 2013
filing date -
Oct 11, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

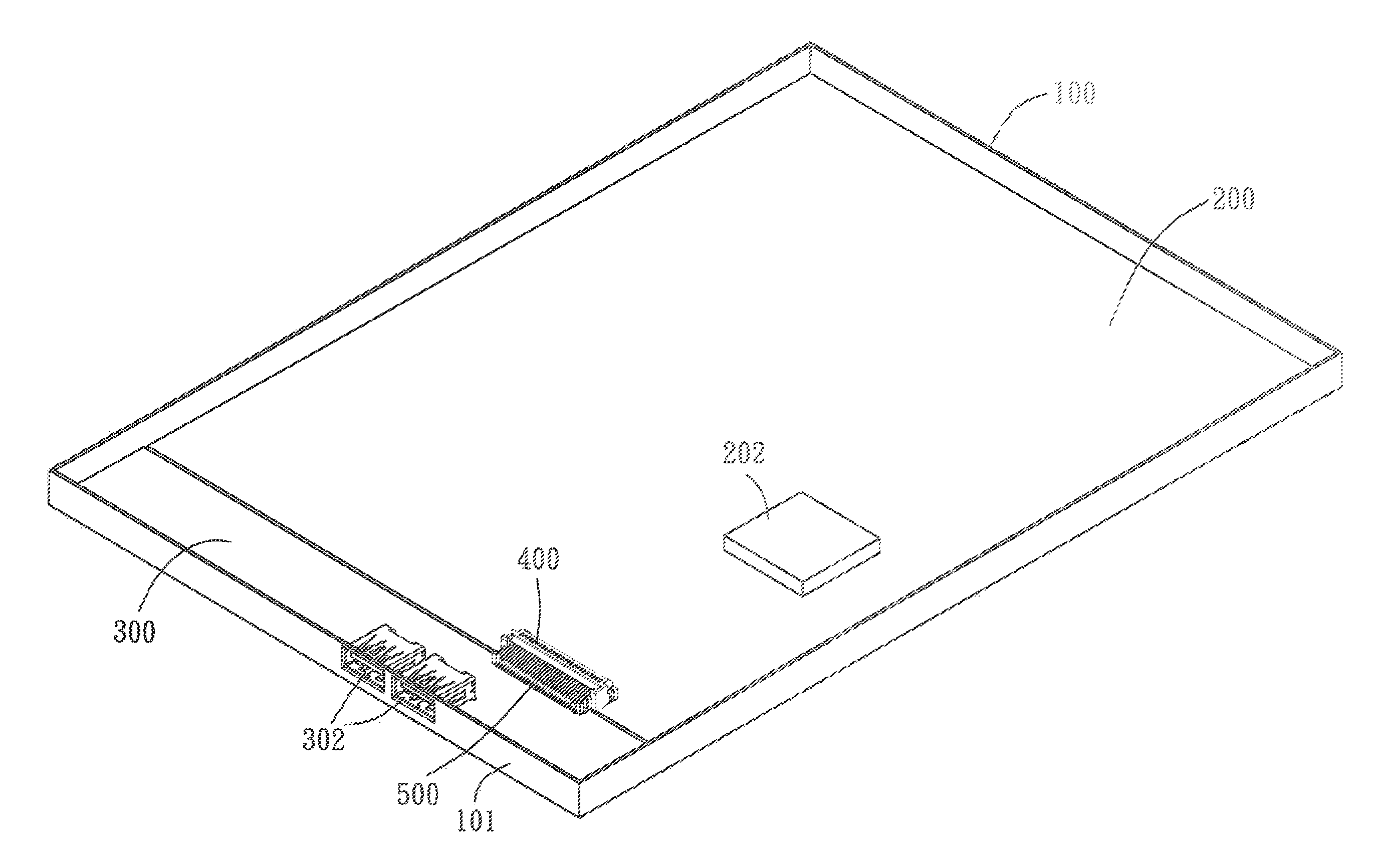

An electrical connection device is used to be provided in an electronic device casing, and comprises a first circuit board and a second circuit board which are substantially coplanar, a receptacle connector provided to the first circuit board and a plug connector provided to the second circuit board. The receptacle connector comprises a housing and a plurality of first terminals. The housing has a first mating surface, and a pair of sliding contact grooves respectively adjacent to both sides of the first mating surface. The plug connector comprises a body and a plurality of second terminals. The body has a pair of side flanges respectively engaged with and received in the sliding contact grooves. The plug connector is mated with the receptacle connector in a direction perpendicular to a board surface of the first circuit board.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H01R Class
- 11.37 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 11, 2027 |
