Mounting panel structure for a rocker switch knob
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 11, 2015
Grant Date -
Sep 12, 2013
app pub date -
Mar 7, 2013
filing date -
Mar 9, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

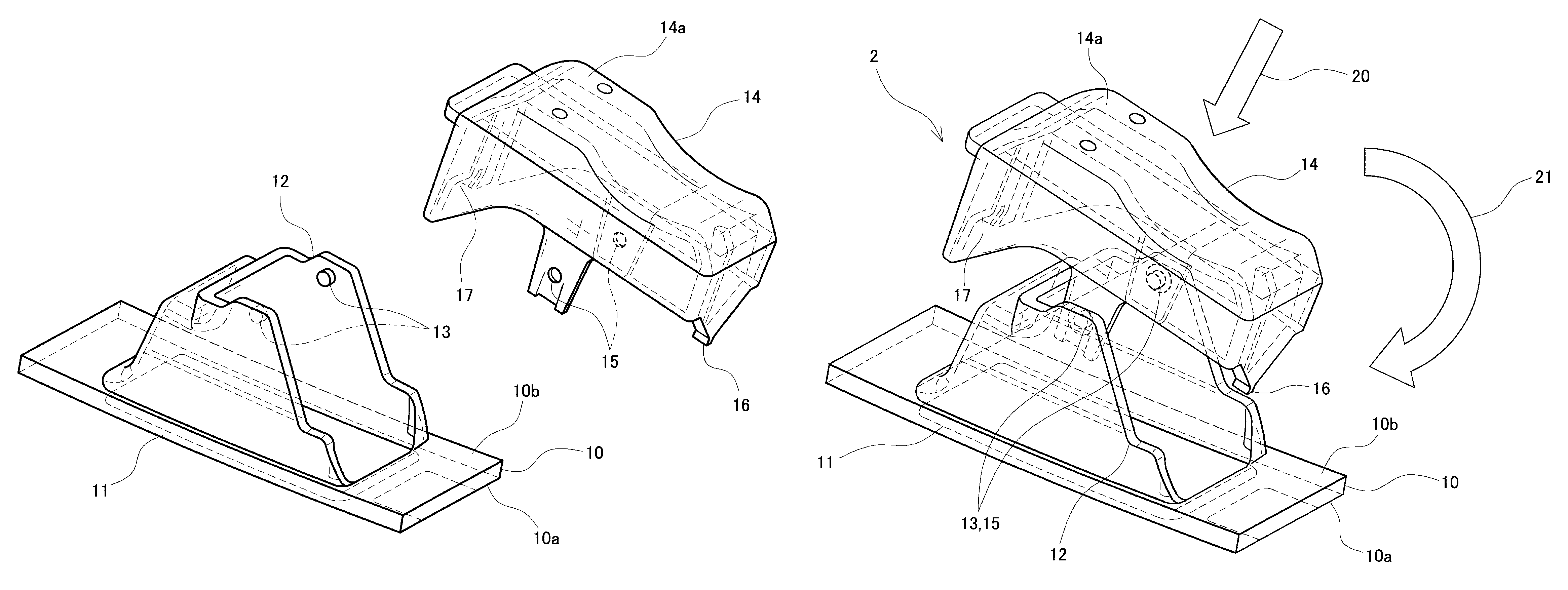

A mounting structure of a switch knob for a vehicle includes a panel 10 having an opening portion 11 and a switch knob 14 having a front surface 14a exposed through the opening portion 11. The panel 10 includes a pair of support portions 12 respectively extending upright on opposing edge portions of the opening portion 11 on the back surface 10b of the panel 10 in a direction perpendicular to the panel 10, and the switch knob 14 is pivotably supported by the support portions 12. Thus, there is provided a mounting structure of a switch knob for a vehicle, which is simple, with the number of components for mounting being reduced and in which a possibility of scratching a panel surface during the mounting operation can be reduced.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- H01H Class
- 1269 Applications Filed
- 1195 Patents Issued To-Date
- 94.17 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01H Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 11, 2027 |
