Method to determine the mass concentration of particles in a dispersion including particles and fluid
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 4, 2015
Grant Date -
Dec 5, 2013
app pub date -
May 31, 2012
filing date -
May 31, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

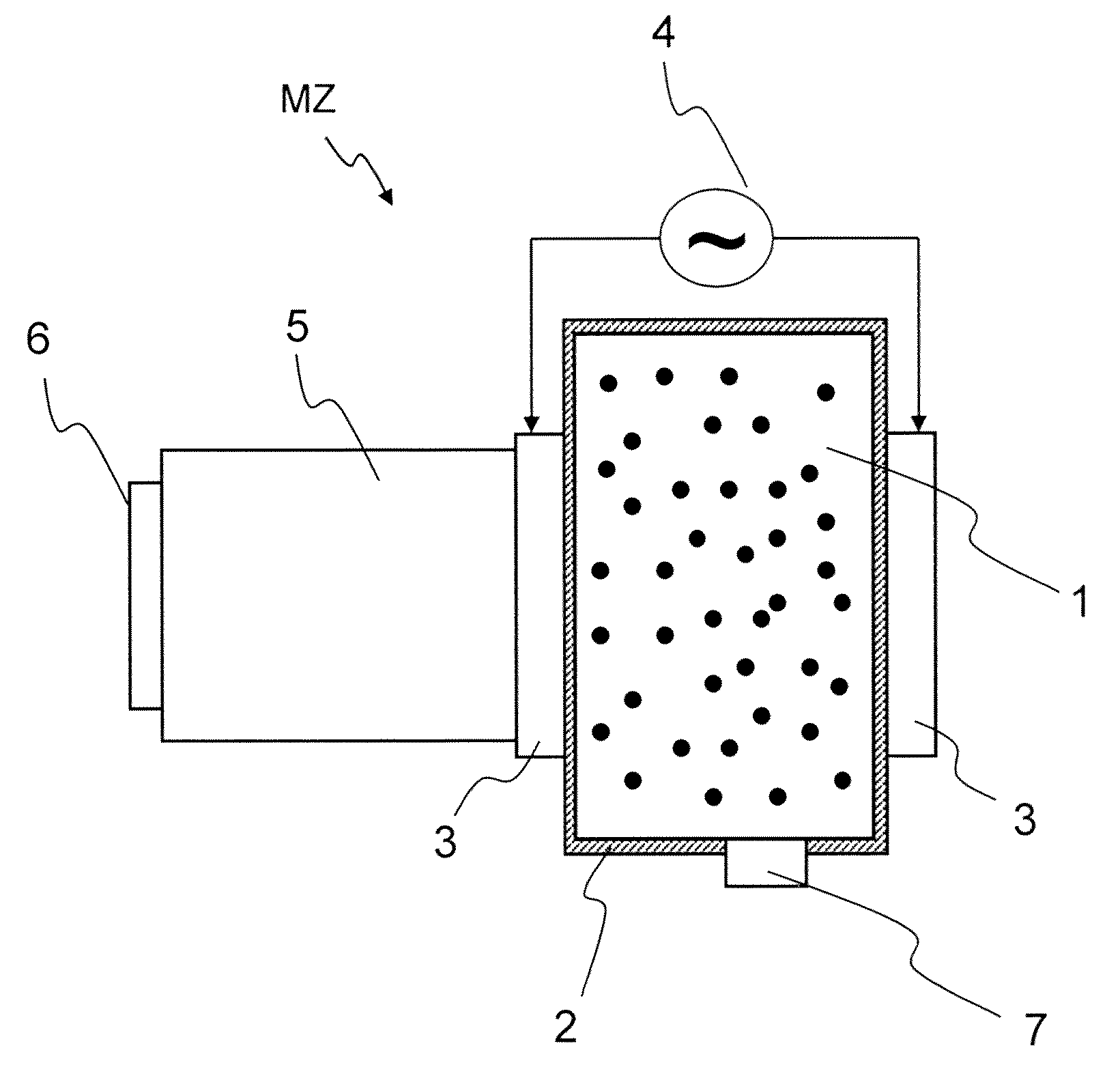

In a method to determine particle mass concentration in a dispersion having particles and fluid, the dispersion in a measurement cell is exposed to an alternating field of variable frequency to set the particles into oscillation to generate sound pressure waves. Amplitudes of the sound pressure waves are measured depending on the frequency so that a maximum amplitude of the sound pressure waves is established and a frequency associated with the amplitude is determined as a resonance frequency of the sound pressure wave. The mass concentration of the particles in the dispersion is established from the resonance frequency.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- G01N Class
- 8064 Applications Filed
- 6361 Patents Issued To-Date
- 78.89 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01N Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 4, 2027 |
