Apparatus for machining an elongated workpiece
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 4, 2015
Grant Date -
Jan 31, 2013
app pub date -
Jul 23, 2012
filing date -
Jul 28, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

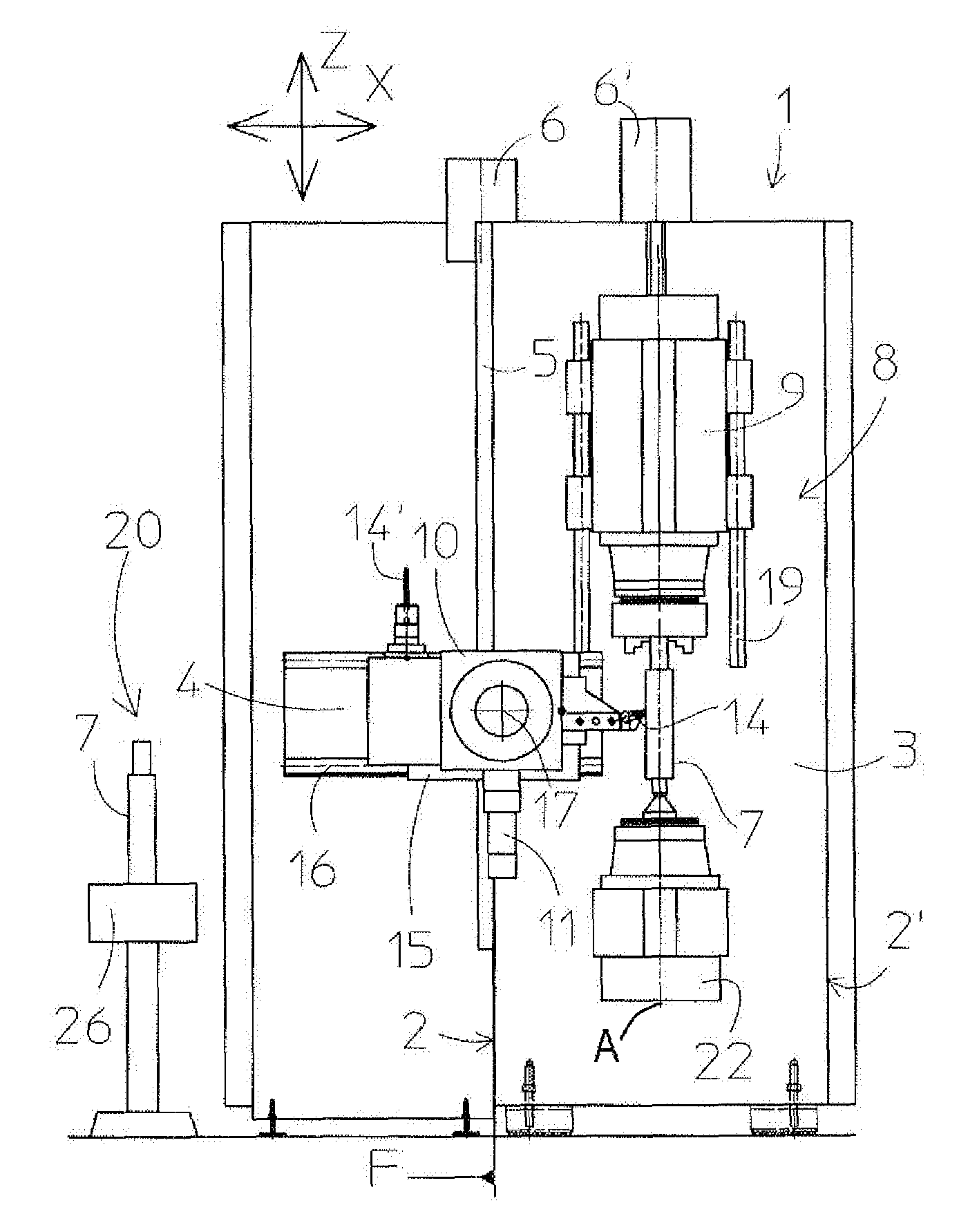

An apparatus for machining an elongated workpiece with a tool a support column having a generally planar and vertical front wall and a pair of generally planar, parallel, and vertical side walls projecting rearward from respective outer edges of the front wall. A workpiece holder on the front wall can hold the workpiece forward of the front wall in a vertical orientation. A vertical guide secured to one of the side walls carries a vertical slide shiftable along the vertical guide. A front horizontal guide on the vertical slide forward of the front wall from the guide carries tool holder shiftable in the front horizontal guide on the vertical slide forward of the front wall and is adapted to hold the tool.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B24B Class
- 493 Applications Filed
- 437 Patents Issued To-Date
- 88.65 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B24B Class
- 16.04 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 4, 2027 |
