Modular tooling apparatus having serrated teeth for orbital and linear adjustment
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 4, 2015
Grant Date -
Jul 25, 2013
app pub date -
Mar 12, 2013
filing date -
Feb 8, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

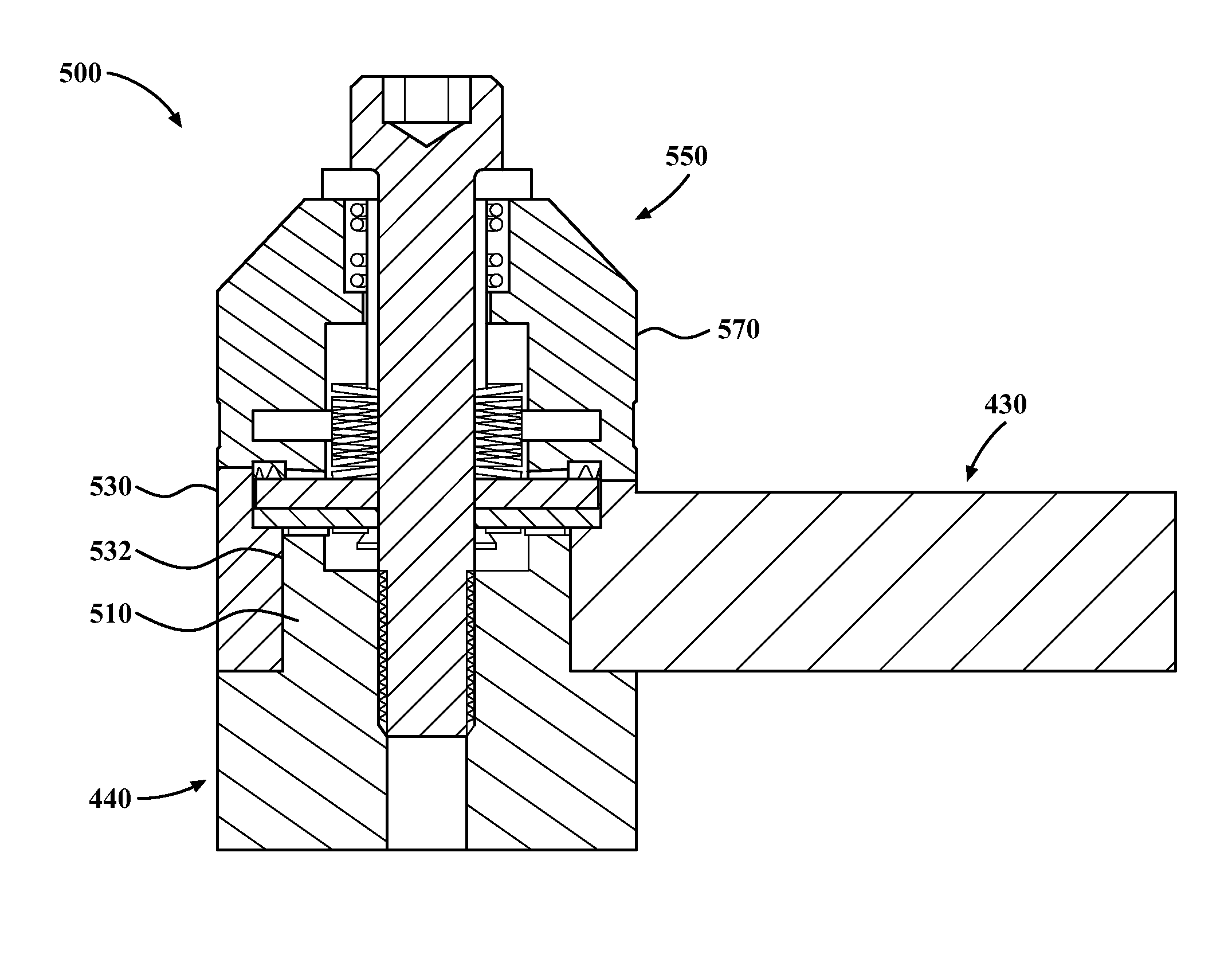

A modular tooling apparatus includes a first coupler portion, a second coupler portion, a locking member, and a friction member. The first coupler portion and the second coupler portion are rotationally adjustable with respect to one another. The locking member is moveable to a locked position wherein the locking member engages the first coupler portion and the second coupler portion to restrain the first coupler portion from rotating with respect to the second coupler portion. The friction member engages the first coupler portion and the second coupler portion to resist rotation of the first coupler portion with respect to the second coupler portion when the locking member is not in the locked position.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B23Q Class
- 473 Applications Filed
- 407 Patents Issued To-Date
- 86.05 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- B23Q Class
- 19.75 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 4, 2027 |
