Solar cell capable of recycling a substrate and method for manufacturing the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 15, 2015
Grant Date -
Oct 6, 2011
app pub date -
Oct 27, 2009
filing date -
Oct 27, 2009
priority date (Note) -
Withdrawn
status (Latency Note)
Importance
Calculated Rating
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

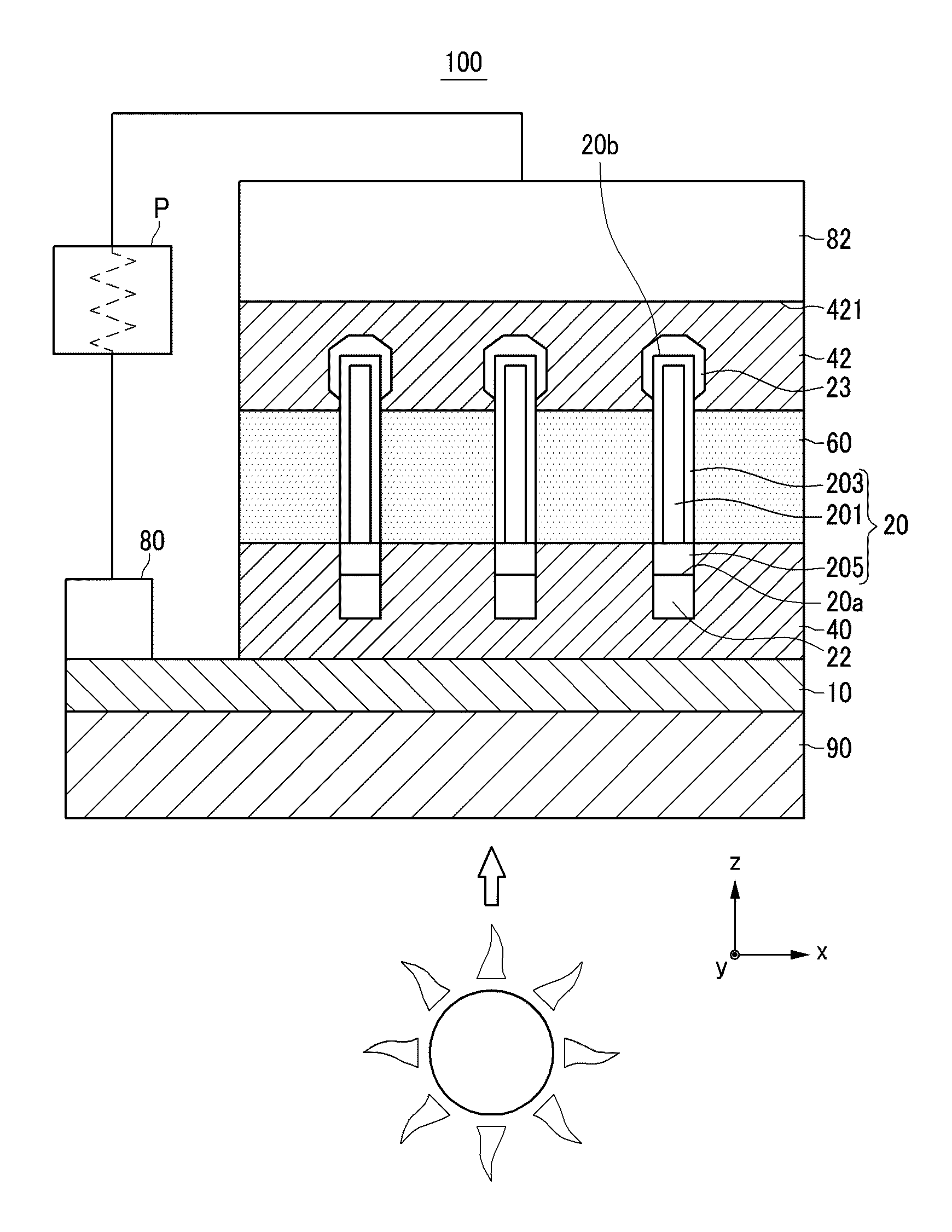

The present invention relates to a solar cell that can recycle a substrate, and a manufacturing method thereof. The solar cell includes: i) a plurality of nano-structures distanced from each other and extended in one direction; ii) a first conductive layer covering a first end of at least one of the plurality of nano-structures; iii) a second conductive layer distanced from the first conductive layer and covering a second end of the nano-structure; and iv) a dielectric layer disposed between the first conductive layer and the second conductive layer.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01L Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 28, 2027 |
