Electronic front derailleur
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 21, 2015
Grant Date -
N/A
app pub date -
Mar 14, 2014
filing date -
Mar 14, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

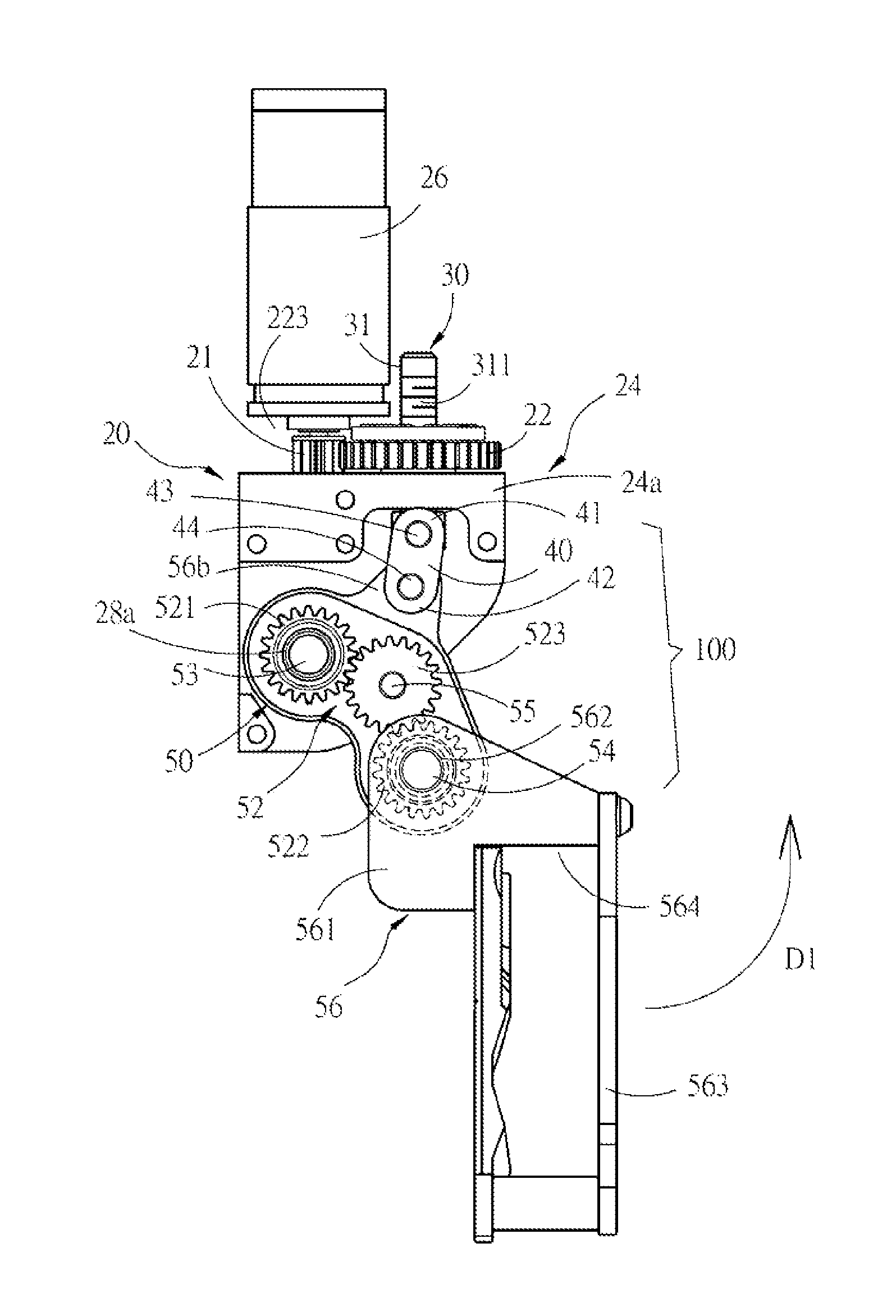

The present invention provides an electronic front derailleur including a driving member, a driving pulley, a driven pulley, a transmission shaft, a transmission assembly, and a chain guide member disposed with a chain-moving member connected to the transmission assembly, wherein the chain-moving member is disposed with a groove to receive a chain. When the driving member drives the driving pulley to rotate the driven pulley, then the driven pulley further actuates the transmission shaft to move therewith, and then the transmission assembly and the chin guide member are further driven to make movements, allowing the bicycle chain move from one sprocket to another sprocket with a different size.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B62M Class
- 329 Applications Filed
- 279 Patents Issued To-Date
- 84.81 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 12 Citation Count
- B62M Class
- 82.61 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 21, 2027 |
