Water resistant holder with a speaker for electronic product
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 14, 2015
Grant Date -
Feb 20, 2014
app pub date -
Aug 15, 2012
filing date -
Aug 15, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

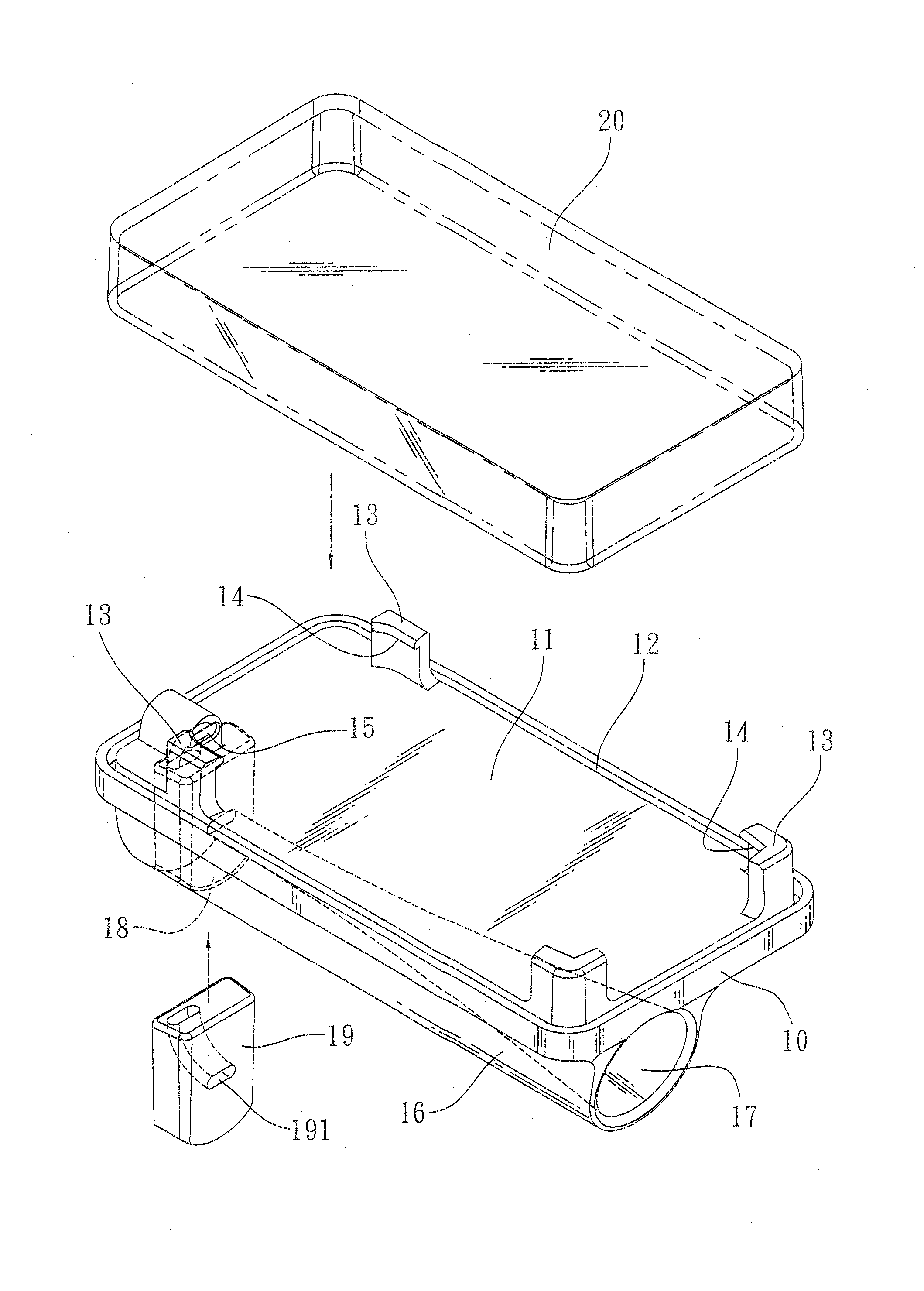

A water resistant holder with a speaker for electronic products, which is used to contain a portable electronic product, and is designed to be water resistant by way of the provision of the base that can be disposed at an appropriate angle and simultaneously allows the sound to be amplified and played out through the base; said holder includes a base and a cover for mounting on the base, wherein the base is provided on its top with a platform, which has a surrounding groove for receiving the edge of the cover for fastening purpose; the interior of the platform has locking pieces accommodating to the portable electronic product, and has a sound receiving hole at an appropriate position for connecting to the sound outlet; the sound receiving hole is connect to the loudspeaker hole via a through path in the speaker under the base, such that the sound can be amplified.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2012 Application Filing Year
- H04M Class
- 4040 Applications Filed
- 3785 Patents Issued To-Date
- 93.69 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- H04M Class
- 9.47 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 14, 2027 |
