Scroll compressor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 14, 2015
Grant Date -
Oct 17, 2013
app pub date -
Apr 16, 2013
filing date -
Apr 16, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

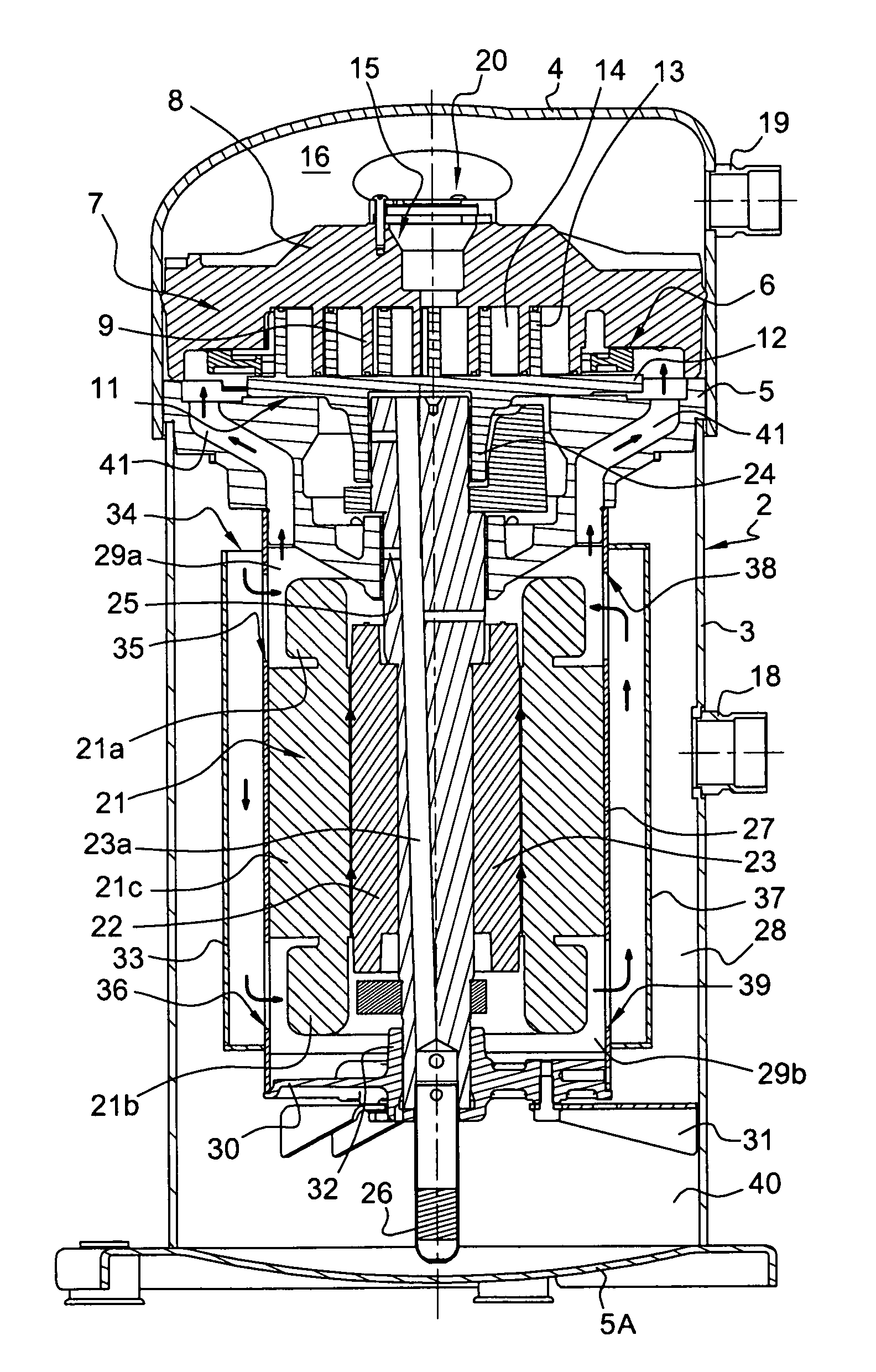

The compressor includes a sealed enclosure containing a compression stage, an electric motor having a stator provided with a first and second end windings, an intermediate casing surrounding the stator so as to define an annular outer volume with the sealed enclosure, connecting means arranged to fluidly connect the compression stage and a distal chamber defined by the intermediate casing and the electric motor and comprising the second end winding, and a refrigerant suction inlet emerging in the annular outer volume. The connecting means include at least one refrigerant circulation duct situated outside the intermediate casing, and at least one distal window formed on the intermediate casing and emerging on the one hand in the at least one refrigerant circulation duct and on the other hand in the distal chamber near the second end winding of the stator.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| FR | B1 | FR2989433 | Apr 16, 2012 |
| DE | B4 | DE102013005620 | Apr 04, 2013 |
| CN | B | CN103375403 | Apr 15, 2013 |
International Classification(s)
- 2013 Application Filing Year
- F04C Class
- 391 Applications Filed
- 348 Patents Issued To-Date
- 89.01 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F04C Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 14, 2027 |
