Method and device for hardening profiles
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 14, 2015
Grant Date -
Jan 20, 2011
app pub date -
Jul 28, 2008
filing date -
Sep 11, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

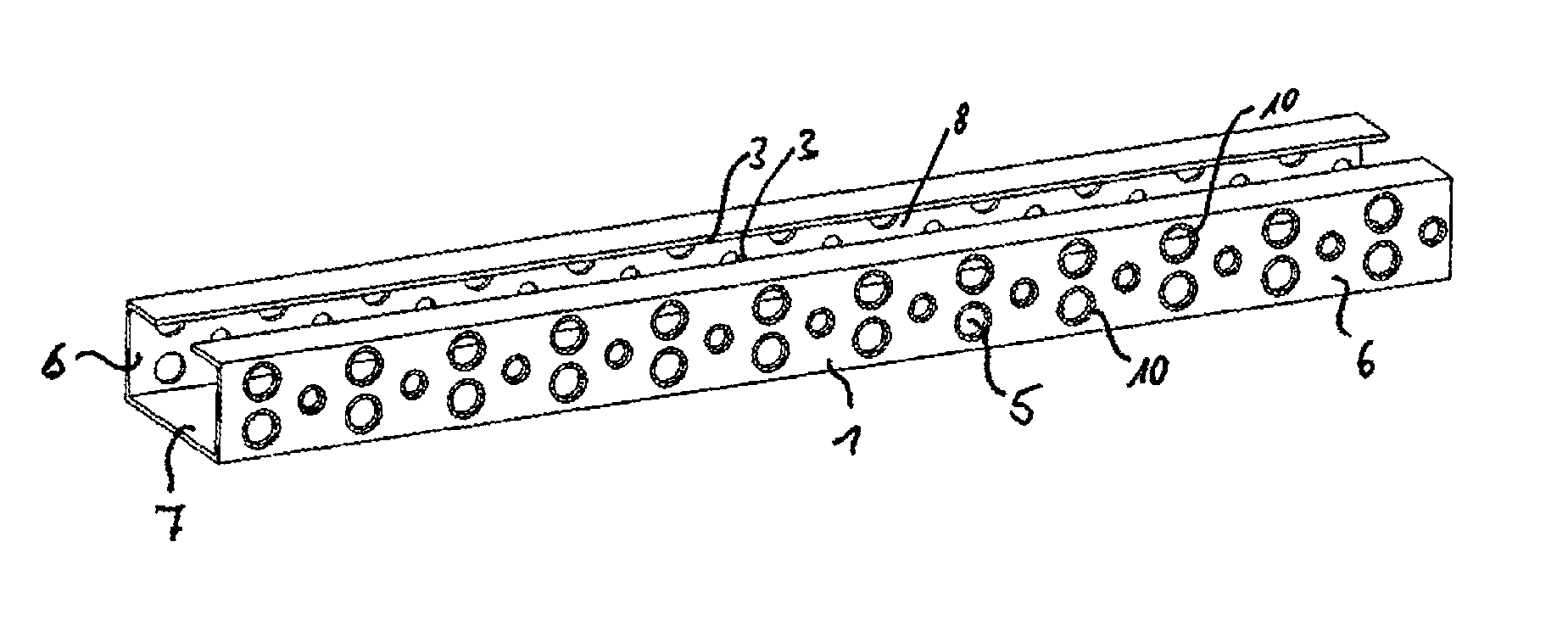

The invention relates to a method for producing hardened profiles, in particular hardened open profiles, wherein the component is at least partly heated to above the austenitizing temperature of the base material and after heating the component is cooled at a rate above the critical hardening rate, the energy necessary for the heating being introduced at least partly by induction, wherein free edges are provided in the component to adjust a temperature or hardness gradient over the cross section of the component, the size, type and extension of the edges being set for a desired degree of hardness and/or hardness gradient.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2008 Application Filing Year
- C21D Class
- 225 Applications Filed
- 138 Patents Issued To-Date
- 61.34 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- C21D Class
- 31.67 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 14, 2027 |
