Feeder for feeding document to document imaging system and method for feeding documents
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 14, 2015
Issued Date -
N/A
app pub date -
Apr 19, 2011
filing date -
Apr 19, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

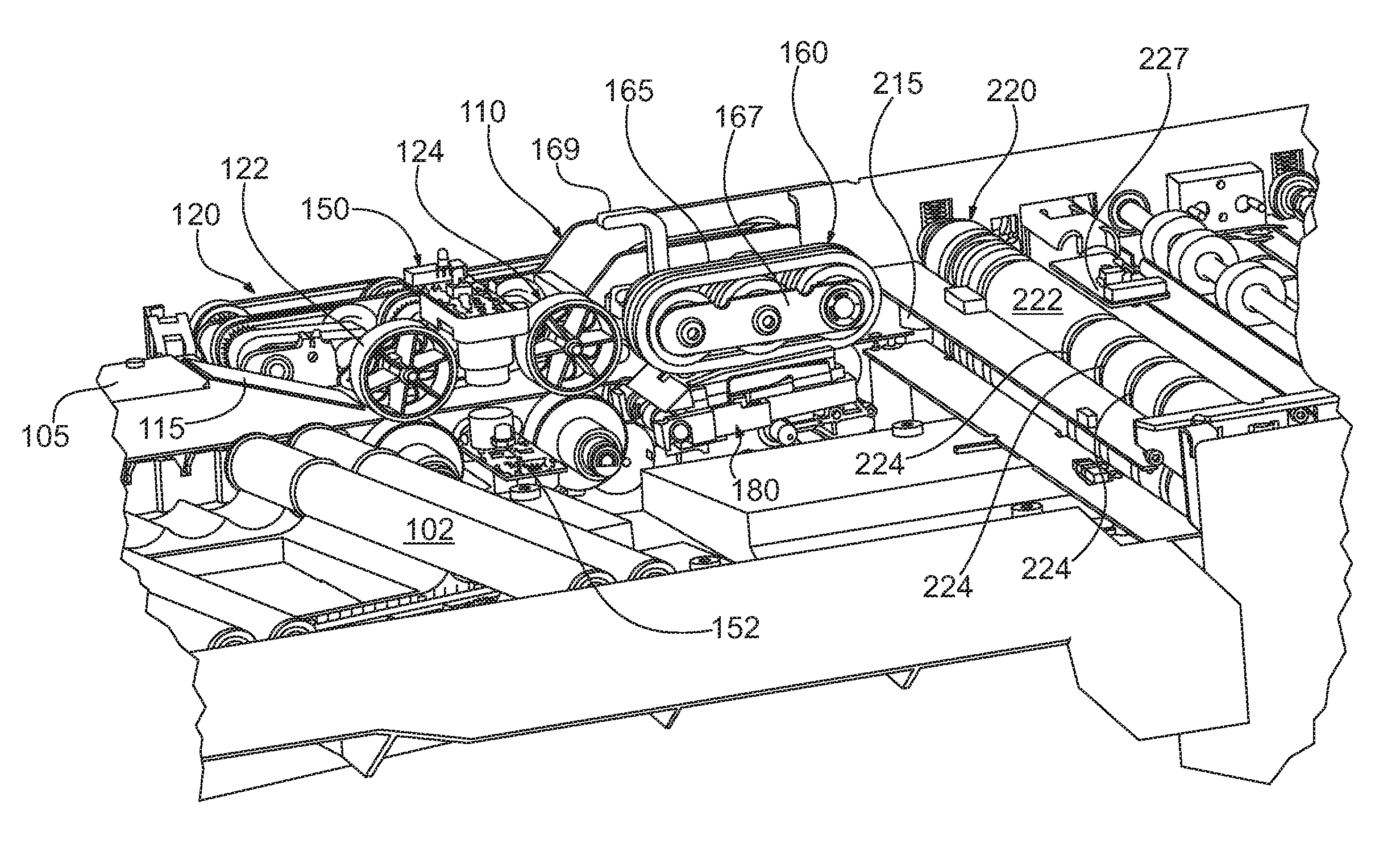

A method and apparatus for processing documents are provided. The apparatus includes a feeder for receiving a packet of a plurality of documents and separating the documents to serially feed the documents to a scanner. A retard adjacent the feeder is operable in first and second positions. In the first position the retard forms a nip with the feeder so that the retard is operable to impede the progress of one or more documents in the packet while the feeder feeds one of the documents in the packet. In the second position, the retard is spaced apart from the feeder to form a gap between the feeder and the retard. The system further includes a sensor for detecting a characteristic of the documents in a packet indicative of whether the number of documents in the packet exceeds a predetermined threshold. A drive mechanism automatically drives the retard pad between the first and second positions in response to the detected characteristic.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- B07C Class
- 103 Applications Filed
- 78 Patents Issued To-Date
- 75.73 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B07C Class
- 10.94 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 14, 2027 |
