Assembly and method for compressive swaging side frames to a package supporting housing associated with a forward dump vehicle headrest
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 14, 2015
Issued Date -
N/A
app pub date -
Mar 14, 2013
filing date -
May 31, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

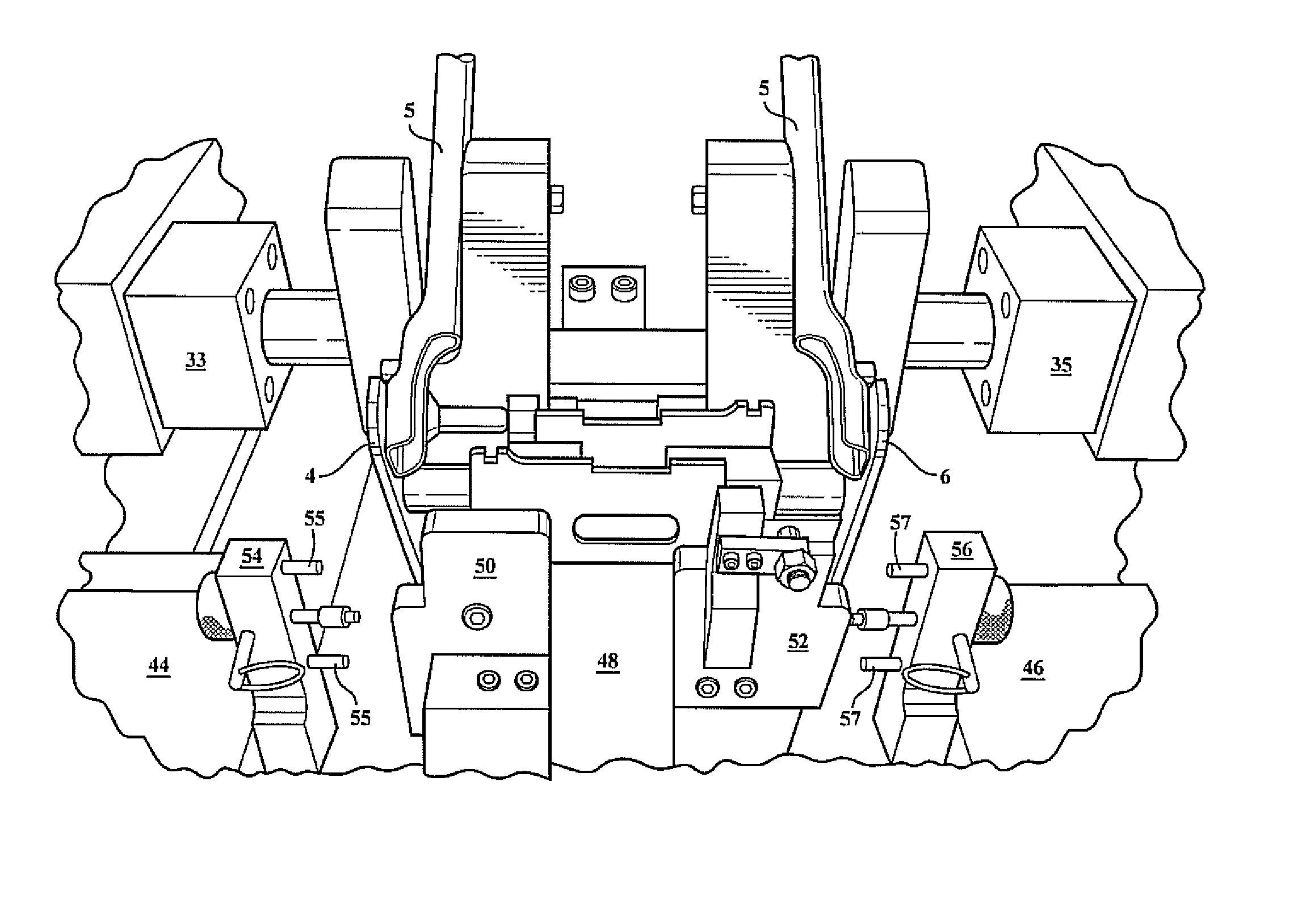

A jig assembly and corresponding method for swage assembling a workpiece having first and second side components and a central component. A first pair of bi-directional traversable platforms are supported in inward and outward reciprocating fashion relative to a central support fixture, and upon which are mounted supporting structures for mounting the workpiece. A pair of engaging jigs are mounted to inner opposing sides of the pair of traversable platforms. Each of the engaging jigs includes a plurality of fingers which are adapted to seat within aperture locations associated with the workpiece side components and to facilitate loading and positioning the workpiece prior to swaging. A pair of opposing and synchronized inward compressing dies simultaneously swage locations associated with opposite edges of the central component which project through apertures defined in the side components.
