Outlet valve for use with a pressurized fluid container
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 30, 2015
Grant Date -
Oct 31, 2013
app pub date -
Feb 7, 2012
filing date -
Feb 9, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

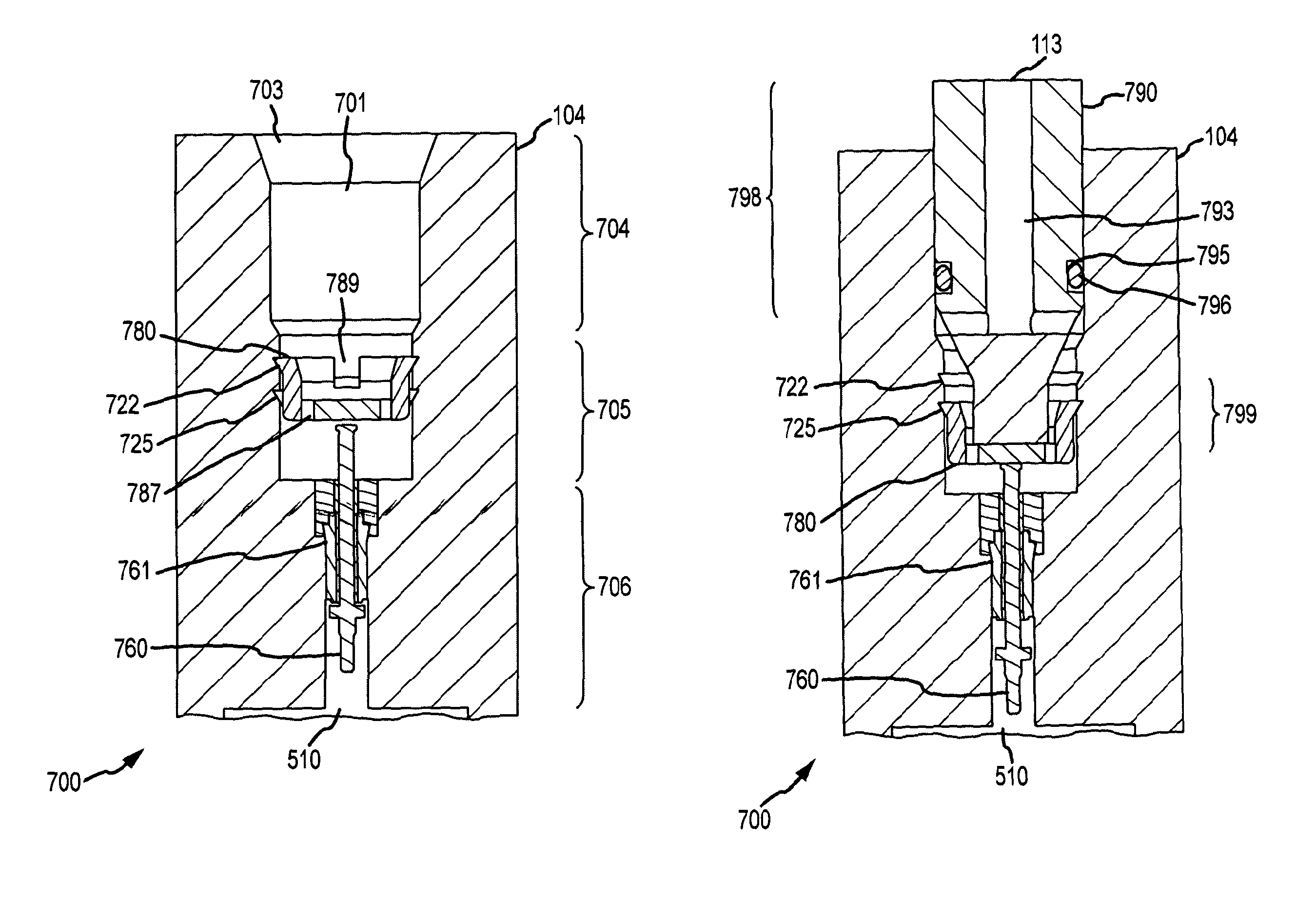

An outlet valve (700) adapted for use with a pressurized fluid container includes an outlet valve chamber (701) including an upper groove (722) and a lower groove (725), an outlet valve member (760) configured to move between substantially open and substantially closed positions in the outlet valve chamber (701), and a non-return member (780) configured to be retained in one of the upper groove (722) or the lower groove (725) in a snap-fit arrangement. When the non-return member (780) is retained in the upper groove (722) the non-return member (780) does not contact the outlet valve member (760). When the non-return member (780) is retained in the lower groove (725) the non-return member (780) blocks the outlet valve member (760) in the substantially open position.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- F16K Class
- 1344 Applications Filed
- 1061 Patents Issued To-Date
- 78.95 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F16K Class
- 15.93 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 30, 2026 |
