Systems and methods for inspection of a specimen
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 30, 2015
Grant Date -
N/A
app pub date -
Mar 14, 2006
filing date -
Mar 14, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

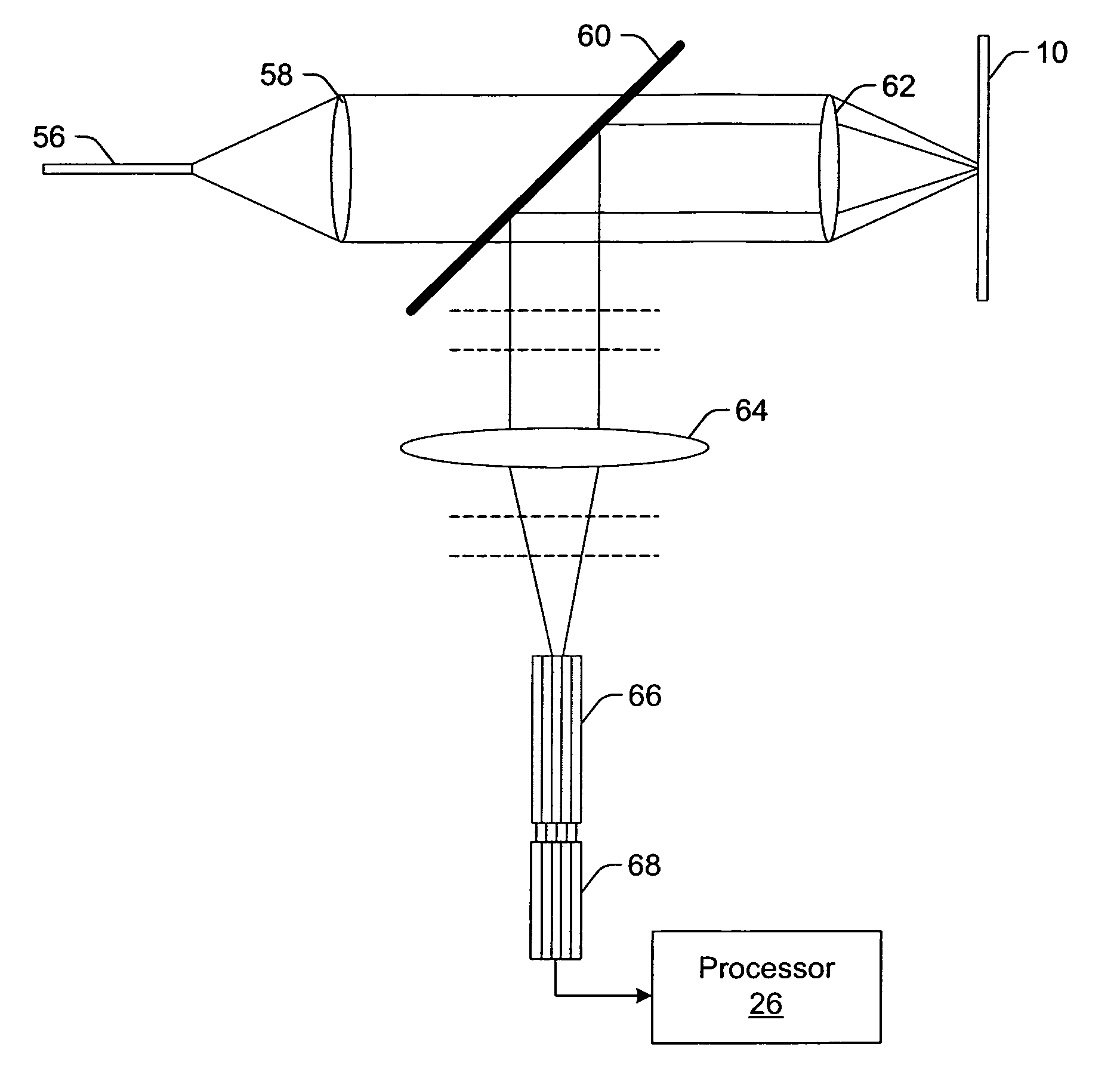

Systems and methods for inspection of a specimen are provided. One system includes an illumination subsystem configured to illuminate the specimen by scanning a spot across the specimen. The system also includes a non-imaging detection subsystem configured to generate output signals responsive to light specularly reflected from the spot scanned across the specimen. In addition, the system includes a processor configured to generate images of the specimen using the output signals and to detect defects on the specimen using the images. In one embodiment, the non-imaging detection subsystem includes an objective and a detector. An NA of the objective does not match a pixel size of the detector. In another embodiment, the non-imaging detection subsystem includes an objective having an NA of greater than about 0.05. The system may be configured for multi-spot illumination and multi-channel detection. Alternatively, the system may be configured for single spot illumination and multi-channel detection.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- G01N Class
- 23.45 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 30, 2026 |
