Mounting arrangement for a trailer coupling
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 30, 2015
Grant Date -
Feb 6, 2014
app pub date -
Oct 4, 2011
filing date -
Nov 10, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

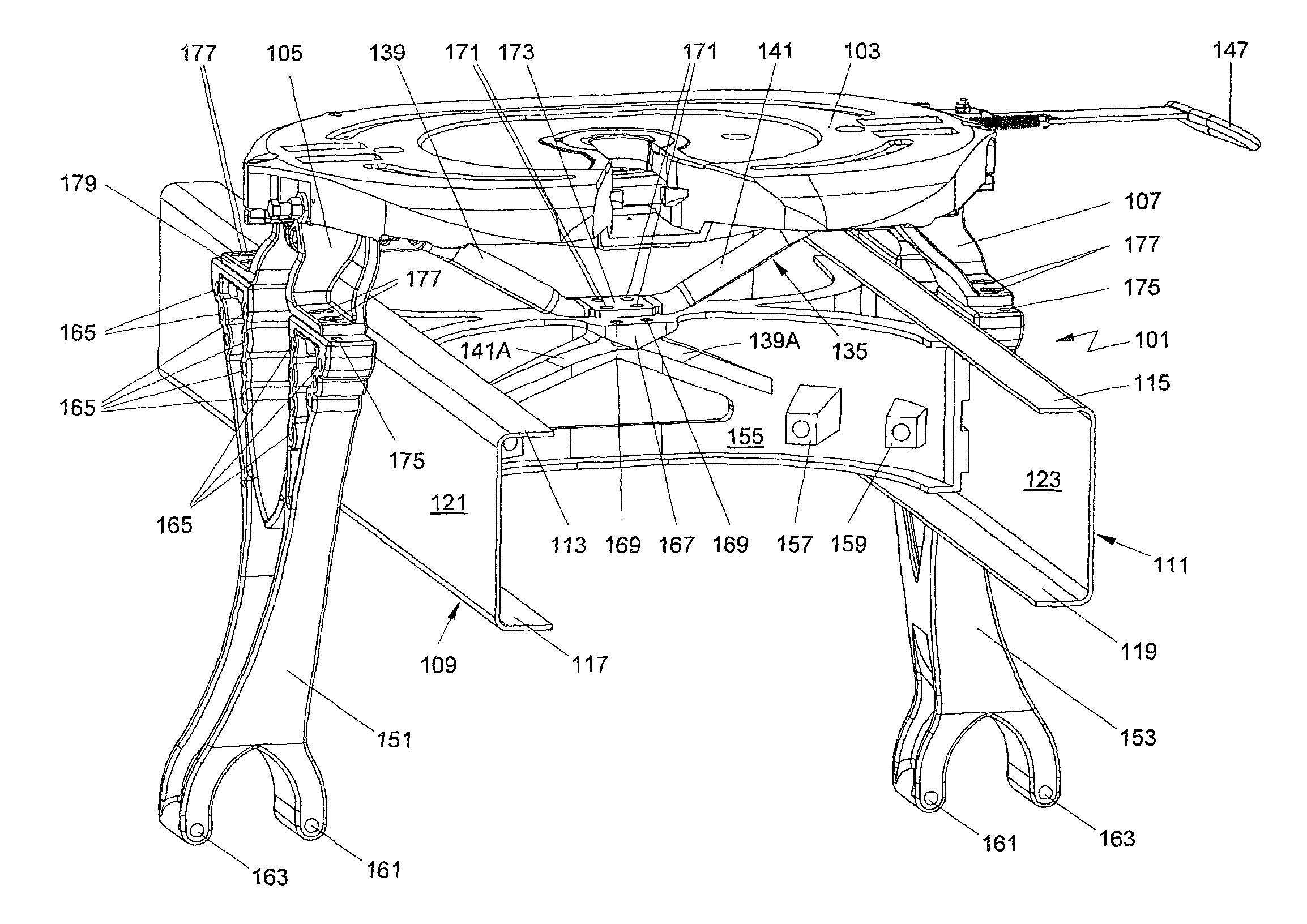

A mounting arrangement (1; 101; 201) for mounting a trailer coupling to a tractor vehicle with a chassis that has a pair of rearwardly extending opposite left and right frame side members (9, 11; 109, 111; 209, 211) that includes opposite left and right bearing blocks (5, 7; 105, 107; 205, 207). The opposite left and right bearing blocks (5, 7; 105, 107; 205, 207) each have a support surface and a pivot bearing for being fixed directly or indirectly to the chassis of the tractor vehicle. A coupling saddle plate (3; 103; 203) is pivotally mounted from the opposite pivot bearings of the left and right bearing blocks (5, 7; 105, 107; 205, 207), while a diagonal cross brace (35; 135; 235) is provided between at least one of the left and right bearing blocks and a respective one of the transversely opposite right or left frame side members (9, 11; 109, 111; 209, 211). The diagonal cross brace (35; 135; 235) comprises at least one diagonally extending leg (39, 41; 139, 141) that is adapted to extend laterally inwardly and diagonally downward from at least one of the left and right bearing blocks (5, 7; 105, 107; 205, 207).
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B62D Class
- 5.82 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 30, 2026 |
