Tool for drilling bone tissue, particularly suitable for performing a sinus lift according to the summers technique or for the fitting of extra-short implants
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 23, 2015
Grant Date -
Mar 29, 2012
app pub date -
Sep 21, 2011
filing date -
Sep 24, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

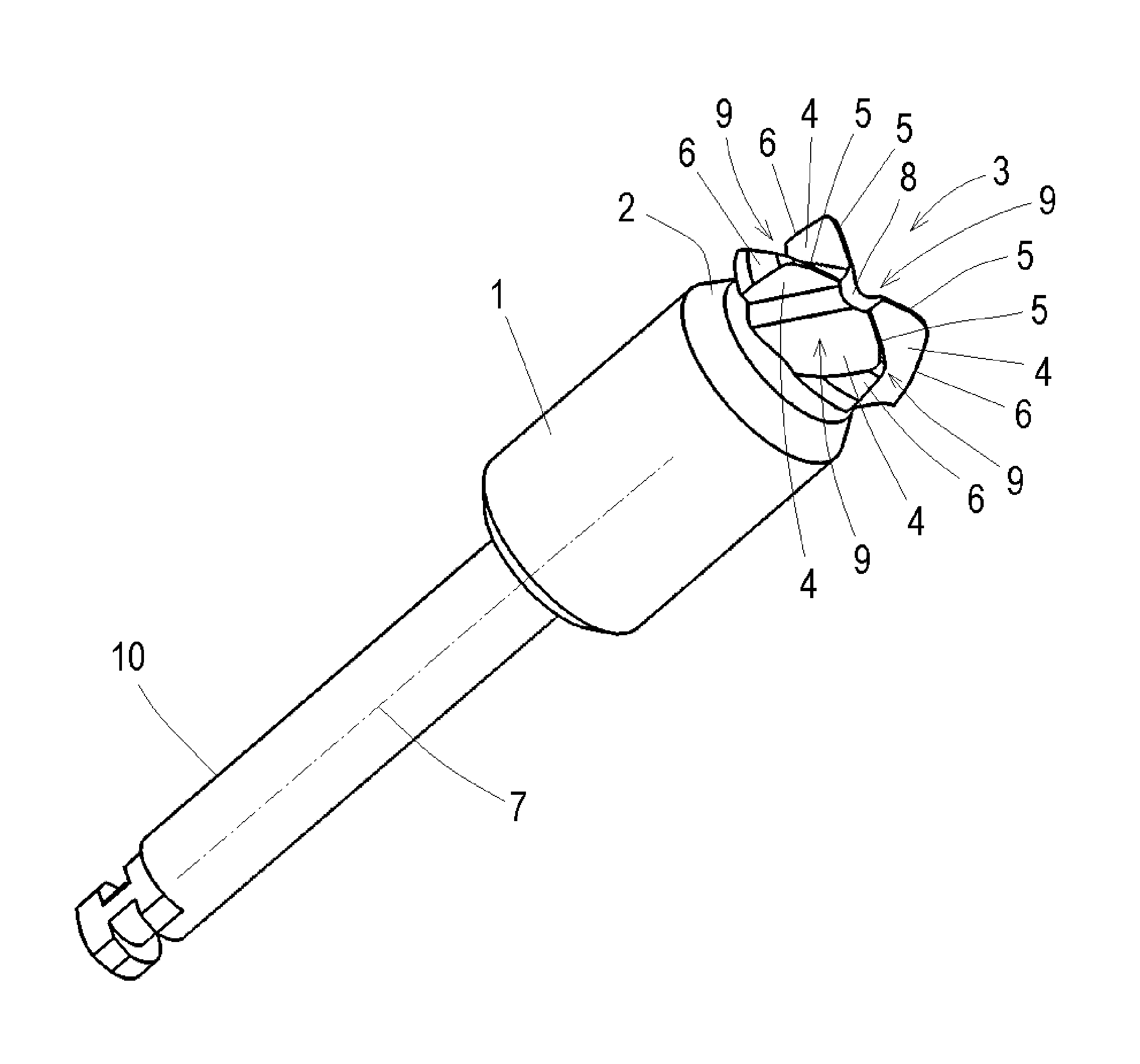

A tool for drilling bone tissue, which has the advantage of having a cutting tip with a flat effective shape that prevents perforation of the Schneider membrane or injury to the dental nerve when drilling close to them. The tool is disposed along an longitudinal axis and includes a non-cutting main body, a narrowed area for retaining bone and a cutting tip, which includes cutting blades, each one of which is provided with a front cutting edge substantially perpendicular to the longitudinal axis and a substantially lateral cutting edge that forms an angle of between 0 and 10° with the longitudinal axis. Spaces for receiving bone are disposed between the cutting blades and are connected to the narrowed area.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- A61B Class
- 8515 Applications Filed
- 7347 Patents Issued To-Date
- 86.29 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- A61B Class
- 6.55 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 23, 2026 |
