Charged particle beam acceleration method and apparatus as part of a charged particle cancer therapy system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 16, 2015
Grant Date -
Jul 28, 2011
app pub date -
May 21, 2009
filing date -
May 22, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

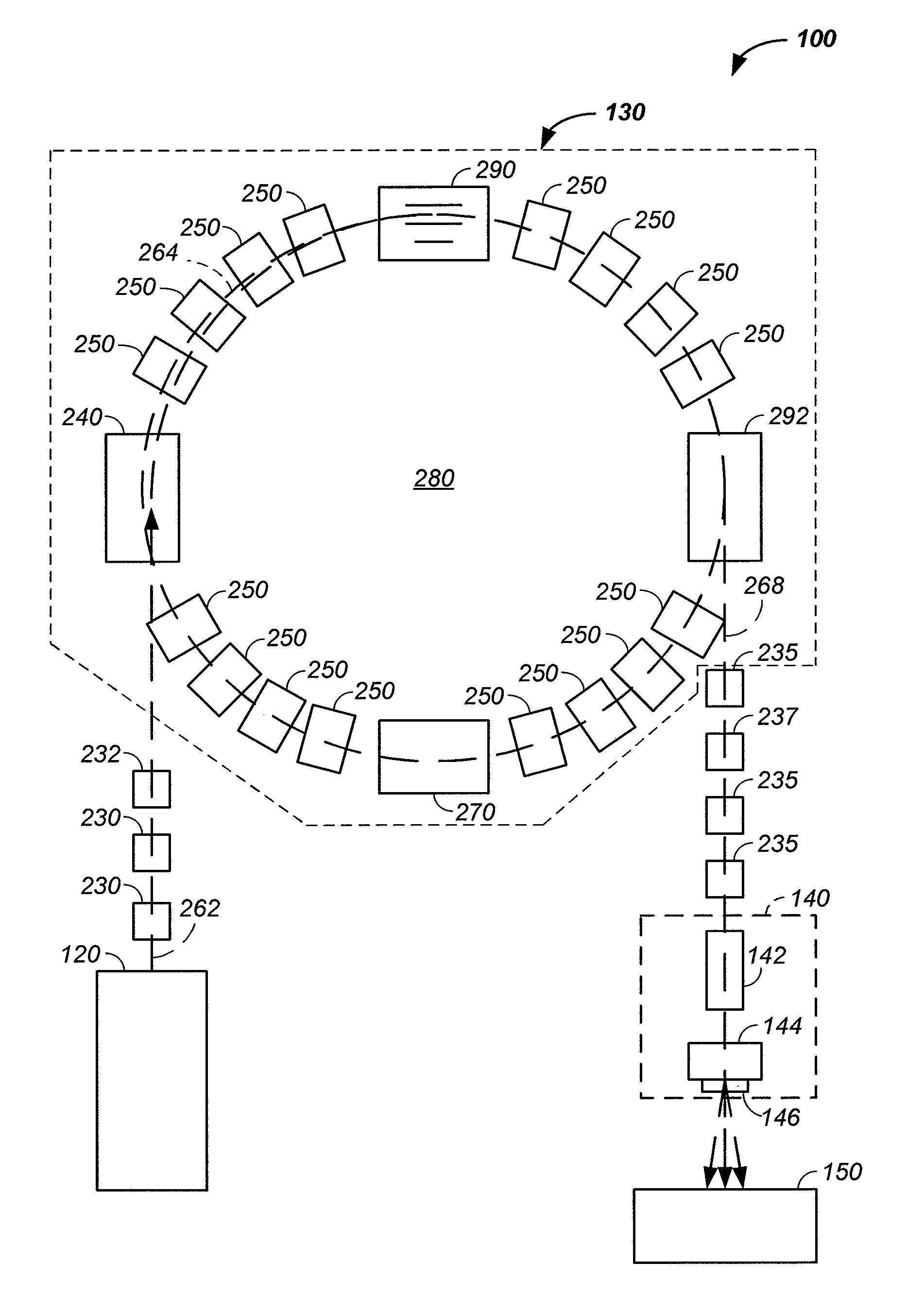

The invention comprises a charged particle beam acceleration method and apparatus used as part of multi-axis charged particle radiation therapy of cancerous tumors. The accelerator includes a synchrotron having advances in turning magnets, edge focusing magnets, magnetic field concentration magnets, and extraction and intensity control elements that minimize the overall size of the synchrotron, provide a tightly controlled proton beam, directly reduce the size of required magnetic fields, directly reduces required operating power, and allows independent energy and intensity control of extracted charged particles from the synchrotron.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2009 Application Filing Year
- G21K Class
- 353 Applications Filed
- 196 Patents Issued To-Date
- 55.53 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 21 Citation Count
- G21K Class
- 86.90 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 16, 2026 |
