Force sensor and method for testing its reliability
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 16, 2015
Grant Date -
Mar 6, 2014
app pub date -
Aug 26, 2013
filing date -
Aug 31, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

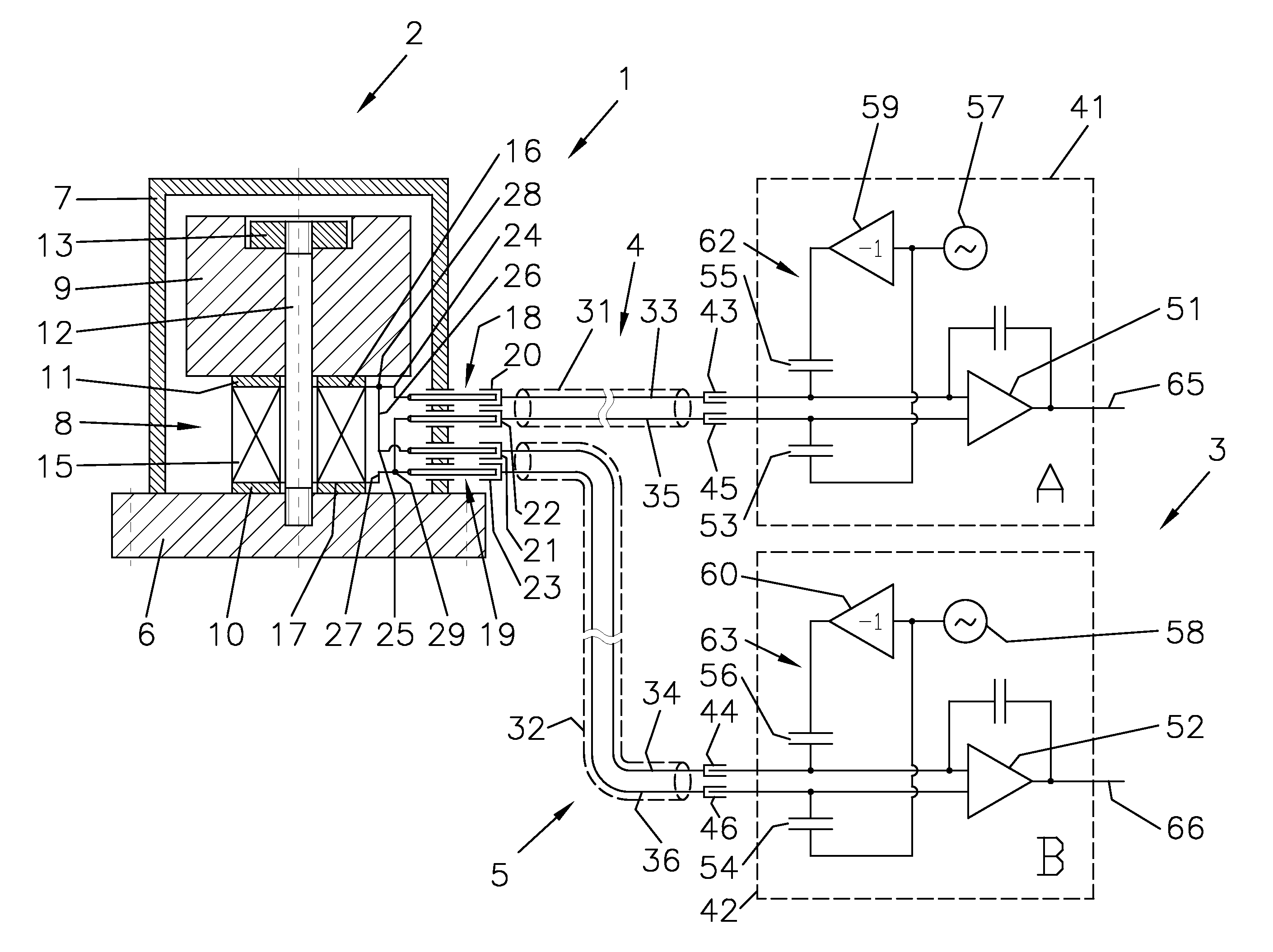

A force sensor includes a transducer with a measuring element operatively connected to a measuring object for generating measuring signals of a force acting on the measuring object, and two in parallel transmission channels transmit mutually corresponding signals of the measuring signals independently from one another and connected in parallel to the same transducer. A test signal is evaluated in a transmission channel in which the test signal has been injected and in another transmission channel in which the test signal has not been injected. In another testing method, the transmitted signals are compared.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- G01H Class
- 187 Applications Filed
- 153 Patents Issued To-Date
- 81.82 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G01H Class
- 10.91 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 16, 2026 |
