Railcar coupler system and method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 16, 2015
Issued Date -
N/A
app pub date -
Sep 17, 2009
filing date -
Sep 17, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

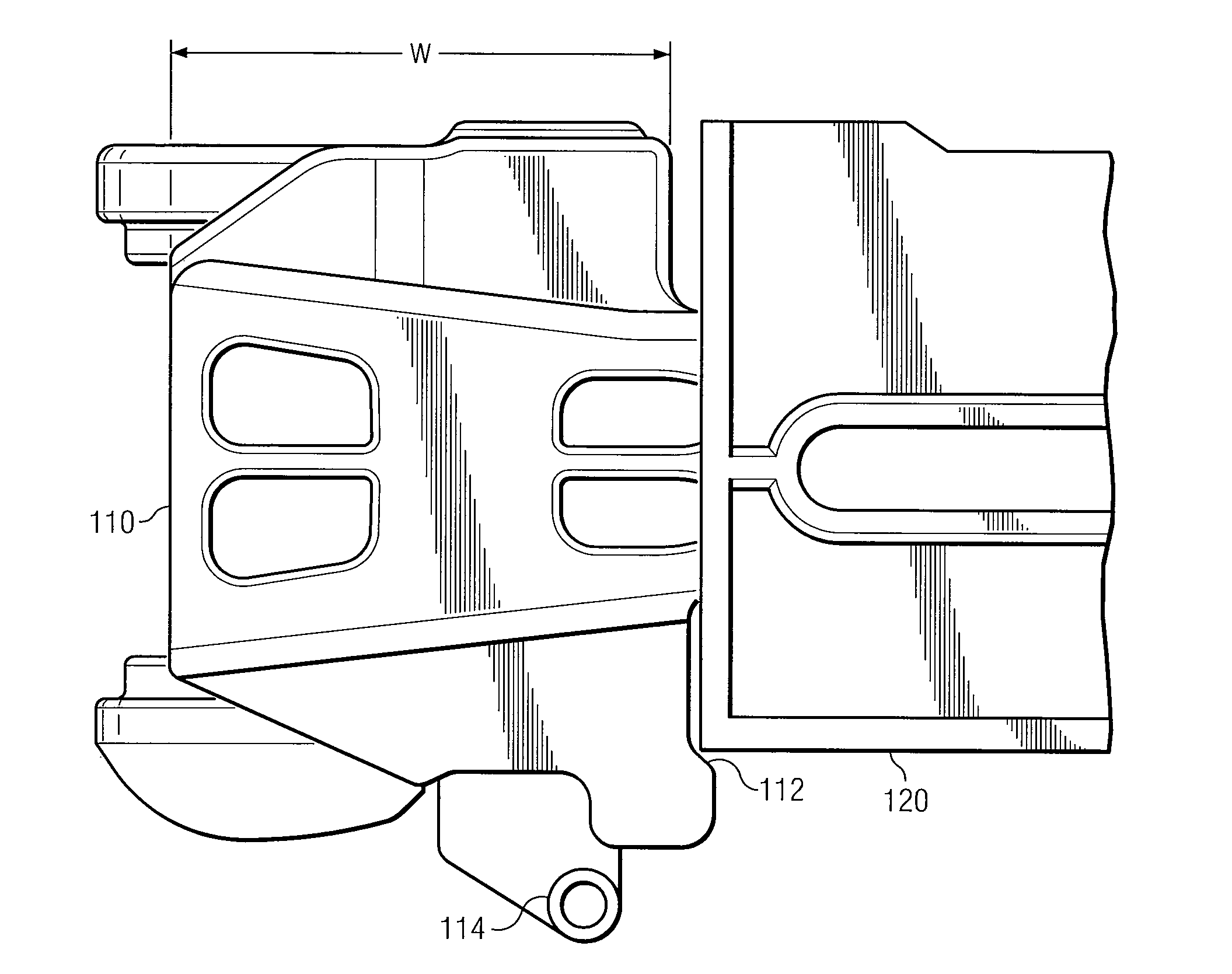

A railcar coupler includes a coupler head portion extending from a shank portion. The coupler head portion is configured to couple to a first coupler knuckle for coupling the railcar coupler to a second railcar coupler of an adjacent railcar. The coupler head portion comprises a nose portion and a gathering face extending from the nose portion for engaging a second coupler knuckle coupled to the second railcar coupler. The coupler head portion comprises a guard arm portion extending from the nose portion towards the shank portion. The coupler head portion comprises a horn portion having a back surface. A distance between the back surface of the horn portion and a nose end of the guard arm portion is less than 11 inches. The coupler head portion comprises a locklifter shelf less than 2 inches above a bottom edge of the coupler.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2009 Application Filing Year
- B61G Class
- 24 Applications Filed
- 18 Patents Issued To-Date
- 75 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 8 Citation Count
- B61G Class
- 13.33 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 16, 2026 |
