Method for manufacturing outer conductor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 9, 2015
Issued Date -
N/A
app pub date -
Mar 24, 2011
filing date -
Apr 9, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

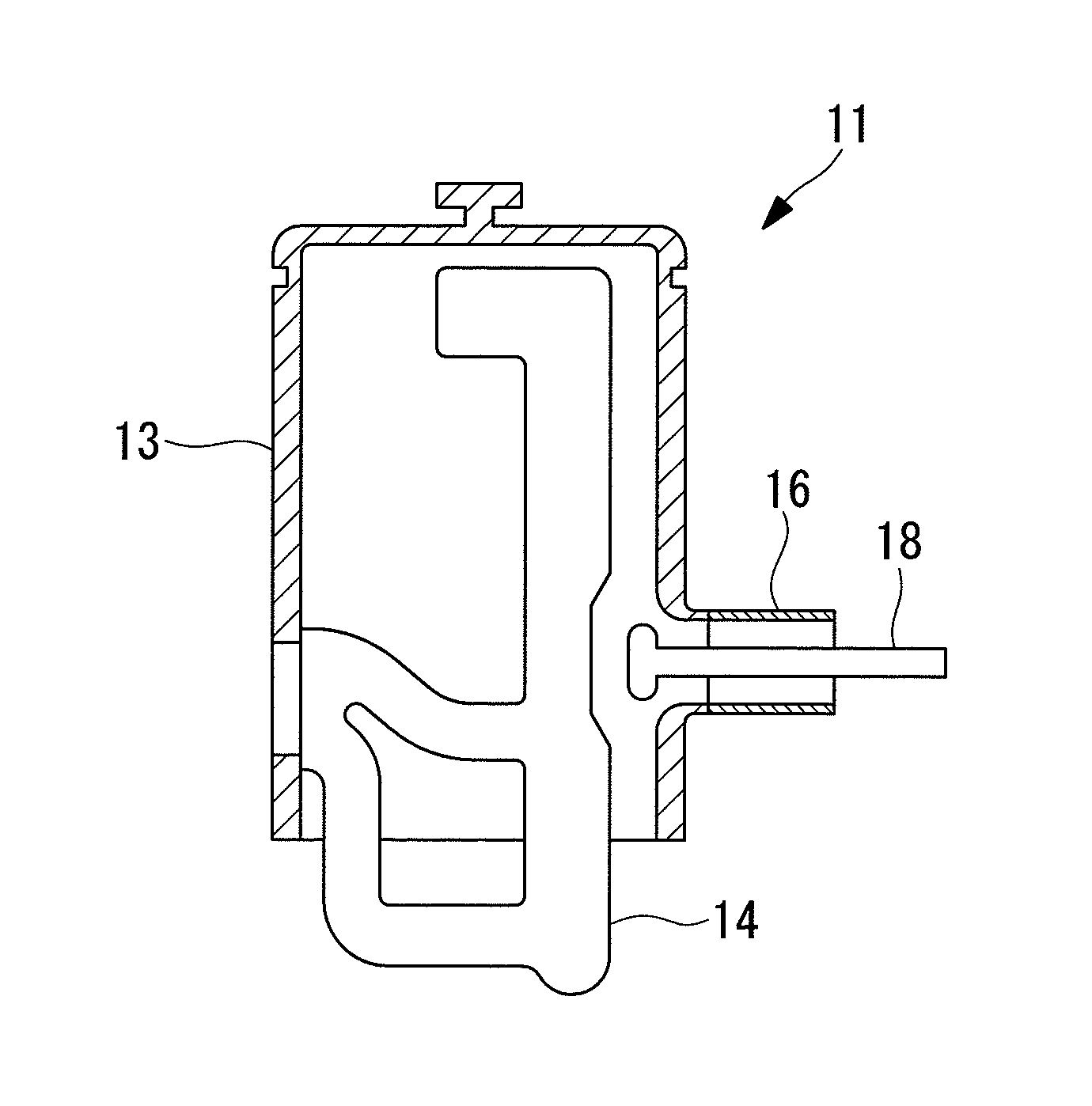

A method for manufacturing an outer conductor of a higher-order-mode coupler for a superconducting acceleration cavity. The outer conductor includes a cylindrical main body that is open at one end surface thereof, a port formed in a side of the main body so as to penetrate therethrough, and a protruding part formed outside another end surface of the main body. The method includes a deep drawing step of deep-drawing a metal plate to form the main body, a port-forming step of flanging the thus-formed main body to form the port, and a first machining step of machining the main body to adjust an outer shape thereof.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H01L Class
- 10.46 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 9, 2026 |
