Grinding disk and apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 9, 2015
Grant Date -
Jan 30, 2014
app pub date -
Jul 29, 2013
filing date -
Jun 29, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

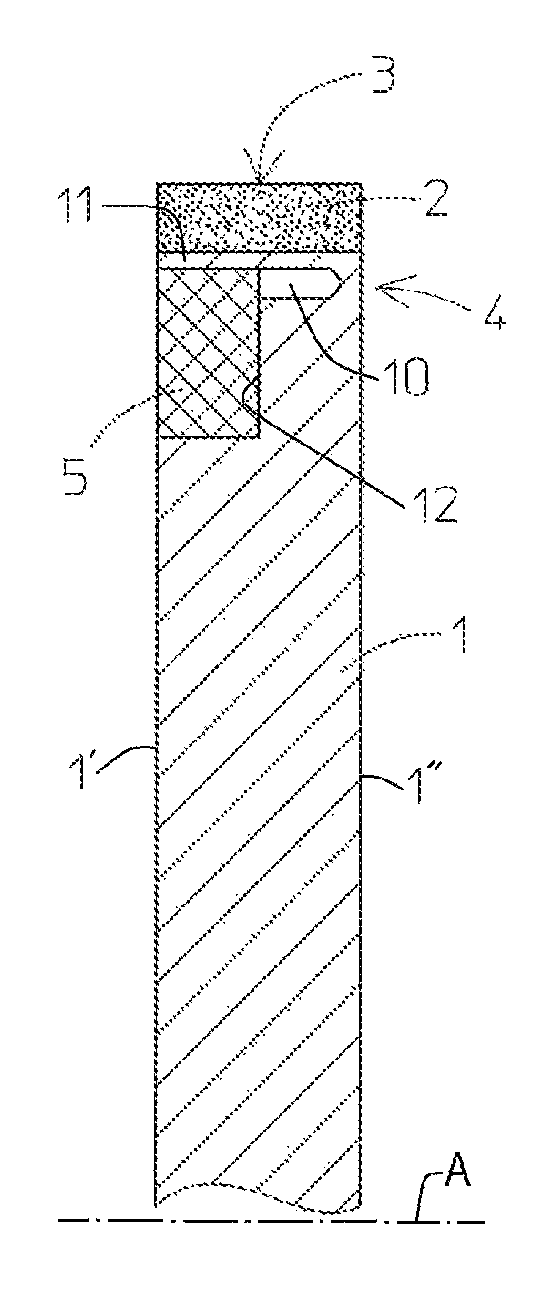

A grinding wheel assembly has a support disk centered on an axis and having an outer edge and a pair of axially opposite faces. An annular abrasive ring is juxtaposed with the outer edge, and a flexible hinge formation joins the ring to the outer edge of the disk at one of the faces. An actuator body of controlledly radially variable dimension joins the ring to outer edge of the disk at the other of the faces for deforming the ring and flexing the hinge formation so as to vary a shape of an outer face of the ring radially of the axis. Thus with this system the exact shape of the outer face of the abrasive ring can be controlled remotely. The control can be very accurate, and can be monitored by sensors in a feedback system to ensure exact position of the outer ring surface.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B24B Class
- 563 Applications Filed
- 515 Patents Issued To-Date
- 91.48 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B24B Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 9, 2026 |
