Fan assemblies and methods for assembling same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 26, 2015
Grant Date -
Feb 9, 2012
app pub date -
Jul 21, 2011
filing date -
Aug 9, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

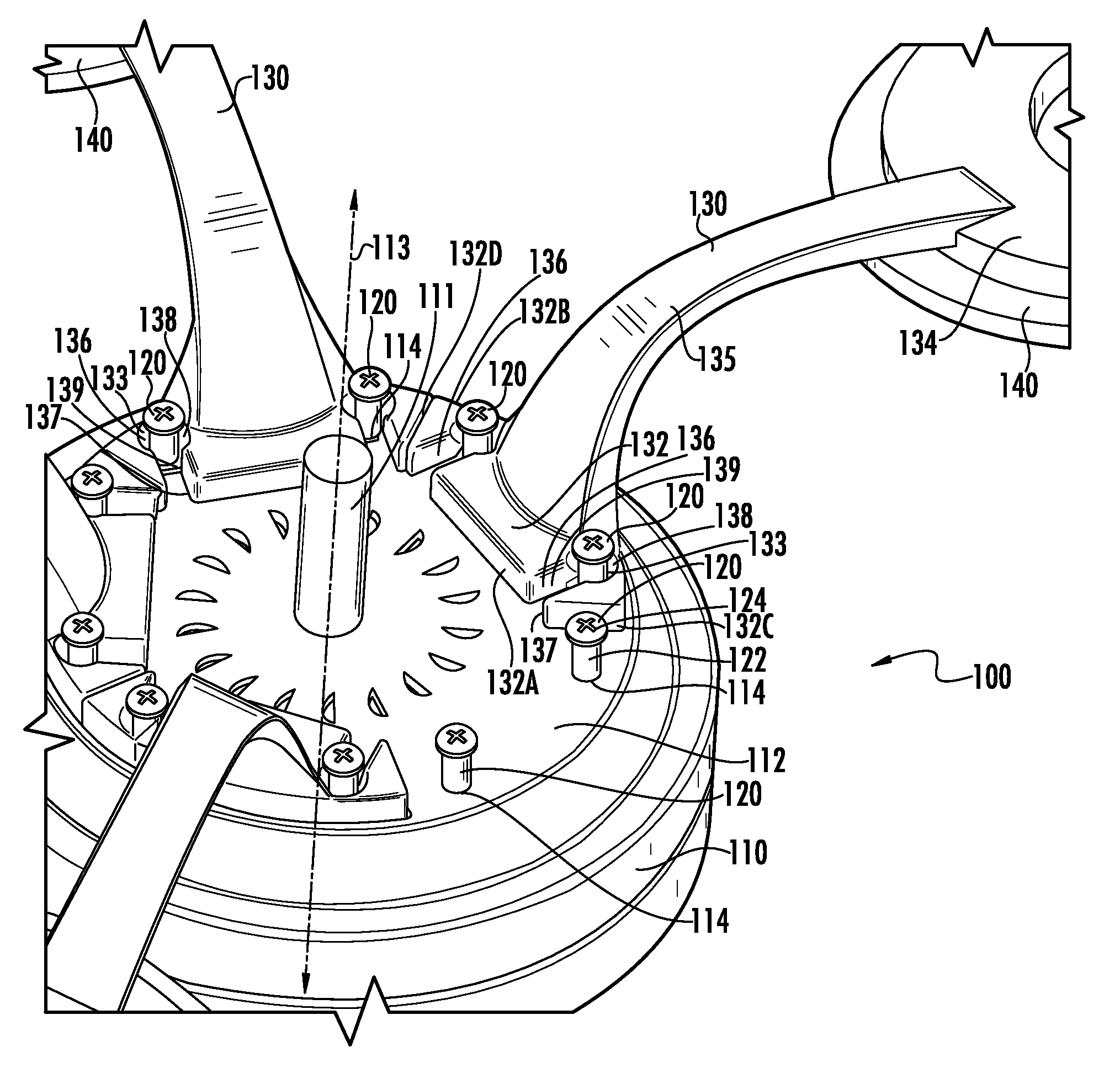

In general terms, embodiments of the present invention relate to fan assemblies and methods for installing the same. For example, some embodiments of the present invention include a fan assembly that includes: (a) a rotational member; (b) a connection member structured for connection to the rotational member and including a body portion and a head portion; and (c) a blade arm defining an opening therein, such that the opening includes an open end portion and a closed end portion. In some embodiments, the connection member and the blade arm are configured such that, (a) when the blade arm is positioned in a support state, the head portion of the connection member rests against the blade arm to support the blade arm relative to the rotational member, and (b) when the blade arm is positioned in a secure state, the head portion of the connection member at least partially bears against the blade arm adjacent to the opening defined in the blade arm. Also, some of these embodiments of the present invention may be characterized as “easy install” fan assemblies because they include an “easy install” blade arm to motor connection, as described above, and/or an “easy install” blade arm to fan blade connection.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- F04D Class
- 829 Applications Filed
- 694 Patents Issued To-Date
- 83.72 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F04D Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 26, 2026 |
