Convertible mobile fire pit and cooker assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 26, 2015
Grant Date -
Dec 20, 2012
app pub date -
Jun 15, 2012
filing date -
Jun 17, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

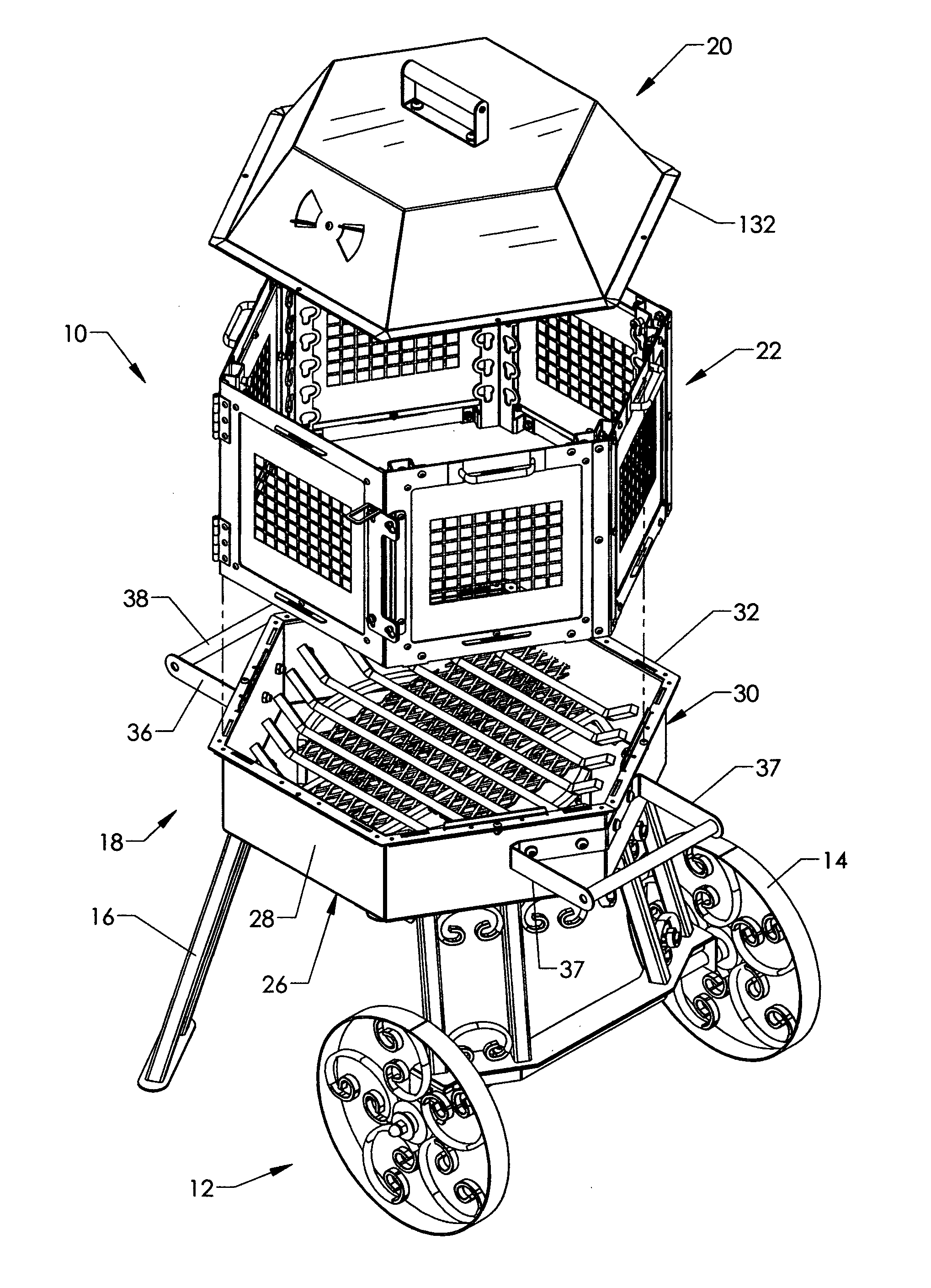

A multi-sided, portable outdoor fireplace convertible to an open grill, a rotisserie assembly, and a smoker assembly, the fireplace includes a carriage assembly with a pair of rotatable wheels and at least one leg member; a base pan assembly for containing a solid fuel heat source affixed to the carriage assembly; and a removable screen assembly residing on top of the base pan assembly. When converted to an open grill, the fireplace further includes a grill bracket removably attachable to the screen assembly. When converted to a smoker, the fireplace, in one embodiment, further includes at least one heat/wind shield attachable to the screen assembly; a smoker adaptor body residing on the screen assembly; an adjustable grate support bracket affixed to the interior of the smoker body and a cover.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- F23G Class
- 90 Applications Filed
- 75 Patents Issued To-Date
- 83.34 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 8 Citation Count
- F23G Class
- 27.27 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 26, 2026 |
