Lithographic fabrication of general periodic structures by exposing a photosensitive layer to a range of lateral intensity distributions
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 19, 2015
Grant Date -
Dec 22, 2011
app pub date -
Aug 26, 2011
filing date -
Feb 16, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

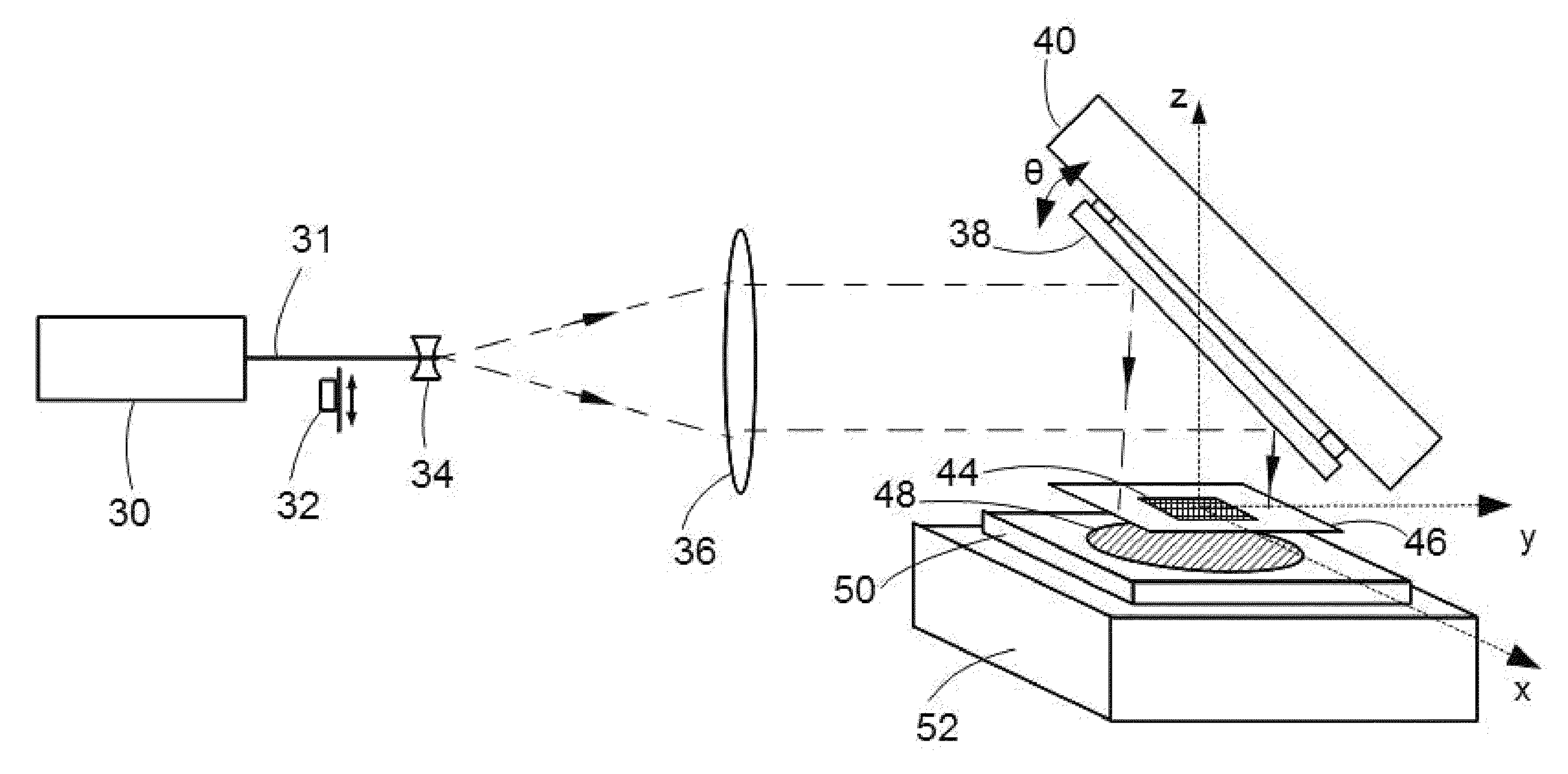

A lithographic method related to Talbot imaging for printing a desired pattern of features that is periodic or quasi-periodic in at least one direction onto a substrate surface, which method includes providing a mask bearing a pattern of mask features, arranging the substrate parallel and in proximity to the mask, providing an illumination source having a central wavelength and a spectral bandwidth, forming from said source an illumination beam with an angular distribution of intensity, arranging the distance of the substrate from the mask and exposing the mask pattern to said beam so that each angular component of illumination exposes the substrate to substantially the entire range of lateral intensity distributions that occur between successive Talbot image planes for the illumination wavelengths, wherein the angular distribution of the beam is designed in conjunction with the pattern of features in the mask and the distance of the substrate from the mask.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- G03B Class
- 15.46 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 19, 2026 |
