Charging device with battery management system for rechargeable battery
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 19, 2015
Grant Date -
Dec 26, 2013
app pub date -
Jun 21, 2012
filing date -
Jun 21, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

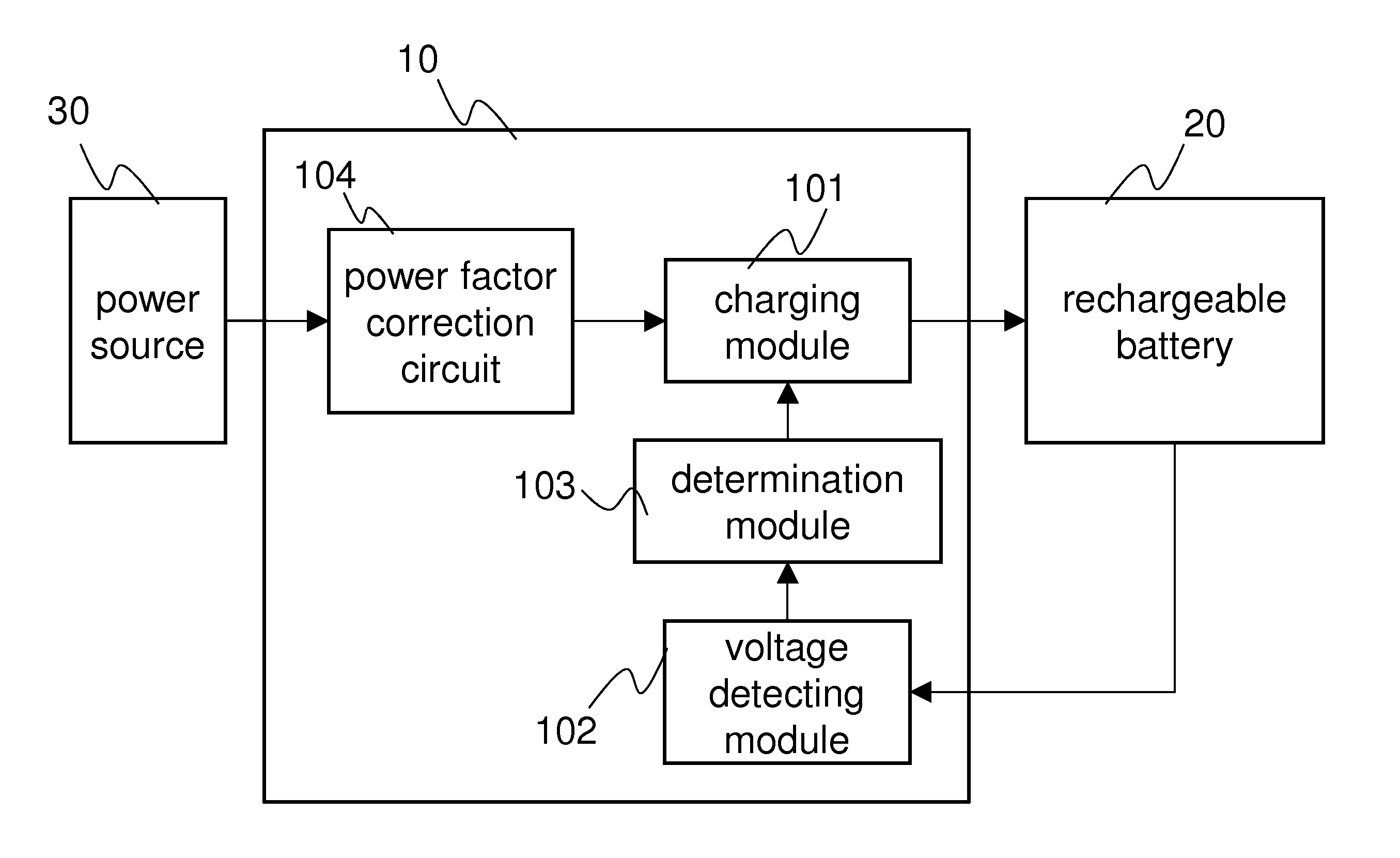

A charging device with a battery management system which remains a rechargeable battery in full capacity during standby after being fully charged is disclosed. The charging device includes a charging module, electrically connected to a power source, for charging the rechargeable battery; a voltage detecting module, for detecting a voltage of the rechargeable battery; and a determination module, for instructing the charging module to charge the rechargeable battery with a supplementary current, when the voltage of the rechargeable battery detected by the voltage detecting module reduces to a first predetermined voltage, until the voltage of the rechargeable battery reaches a second predetermined voltage. A reduction of the voltage of the rechargeable battery is due to self-discharge of the rechargeable battery during standby after being fully charged.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- H02J Class
- 8.76 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 19, 2026 |
