Surface covering kit comprising panels and an extraneous locking element
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 19, 2015
Grant Date -
Feb 13, 2014
app pub date -
Apr 15, 2011
filing date -
Apr 15, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

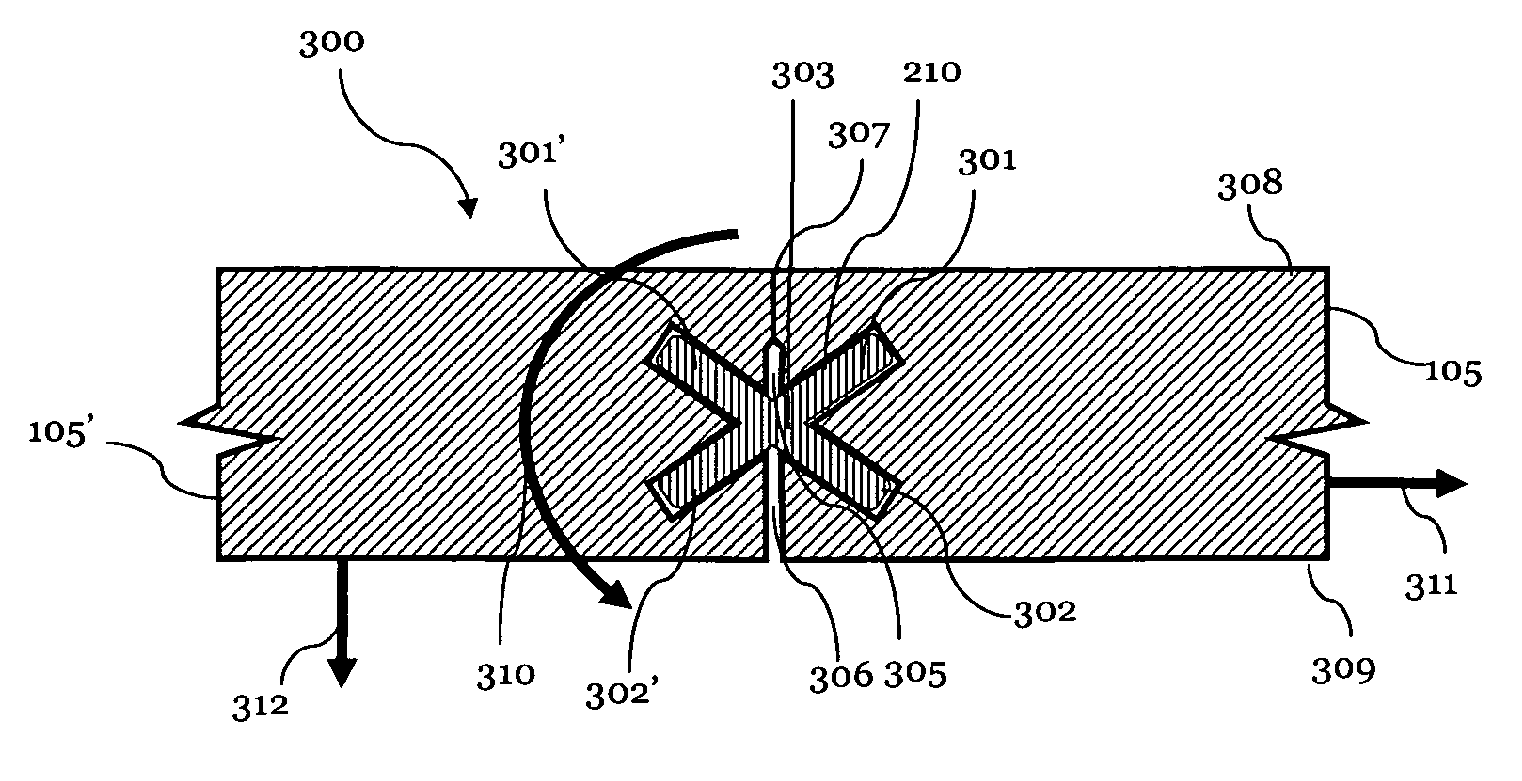

A surface covering kit is disclosed, comprising a plurality of generally rectangular panels (100). Each panel is provided with grooves (301, 302, 301′, 302′) forming an insertion channel (303) when two panels (100) are laid next to each other along their transverse sides (105, 105′) in a common laying plane (101). An extraneous locking element (210) is received by the insertion channel (303), the extraneous locking element (210) having a longitudinal dimension and a cross-section perpendicular to said longitudinal dimension which forms a cross with at least four cross arms. The corresponding cross arms of the insertion channel have two parallel flank surfaces (1603, 1604) each, and each of the cross arms is oriented diagonally in a plane perpendicular to the panel plane (102).
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F16B Class
- 18.00 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 19, 2026 |
