Fuel metering diaphragm with backing plate
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 12, 2015
Grant Date -
Sep 12, 2013
app pub date -
Feb 20, 2013
filing date -
Mar 7, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

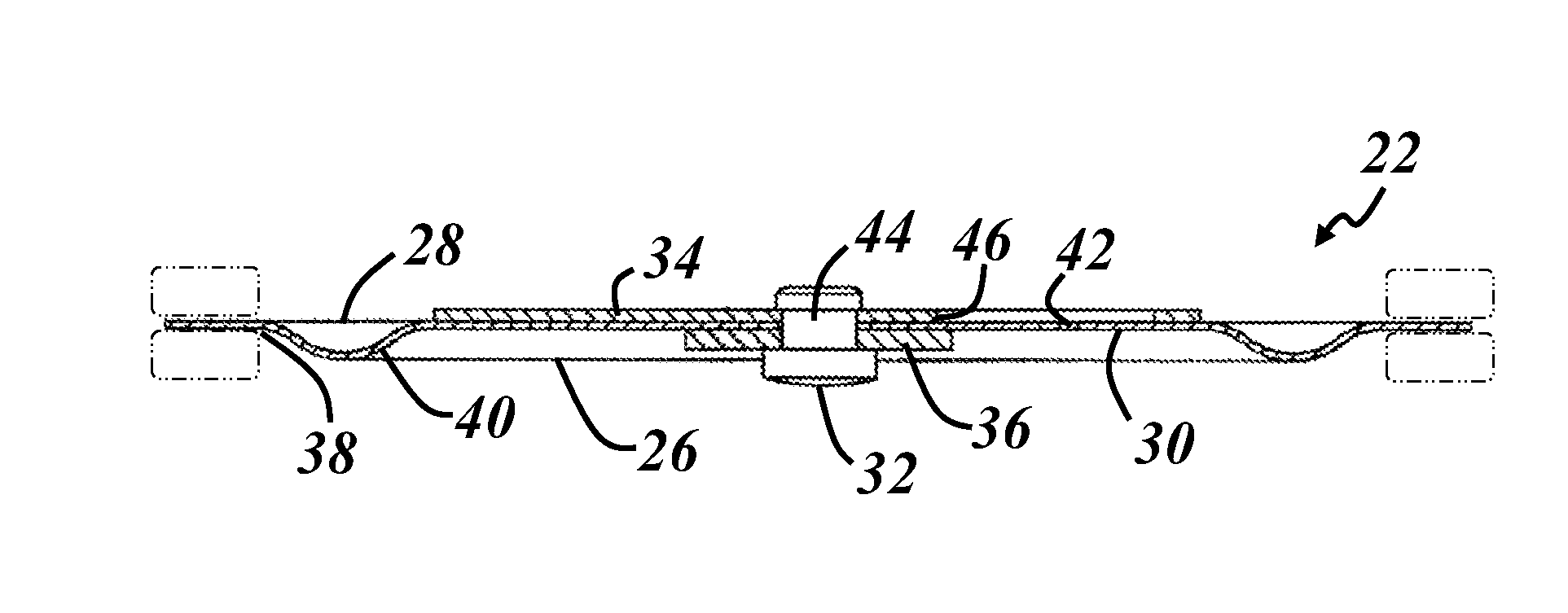

In at least some implementations, a carburetor having a fuel metering system including a diaphragm assembly that moves in response to pressure changes in a metering chamber to actuate a metering valve may include a flexible diaphragm adapted to carried by a body of the carburetor at a periphery to define part of the metering chamber. The portion of the diaphragm that defines part of the metering chamber defines a chamber projected area of the diaphragm. A backing plate is attached to the flexible diaphragm and arranged to be located outside the metering chamber. The backing plate having an outer perimeter defining a plate projected area, wherein an area ratio of the plate projected area to the chamber projected area is greater than about 0.1.
