Assembly having a holding toric body for closing an annular collar, or connecting to same, which can be rapidly positioned and removed and used in the biopharamaceutical field
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 12, 2015
Grant Date -
Feb 16, 2012
app pub date -
Mar 5, 2010
filing date -
Mar 6, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

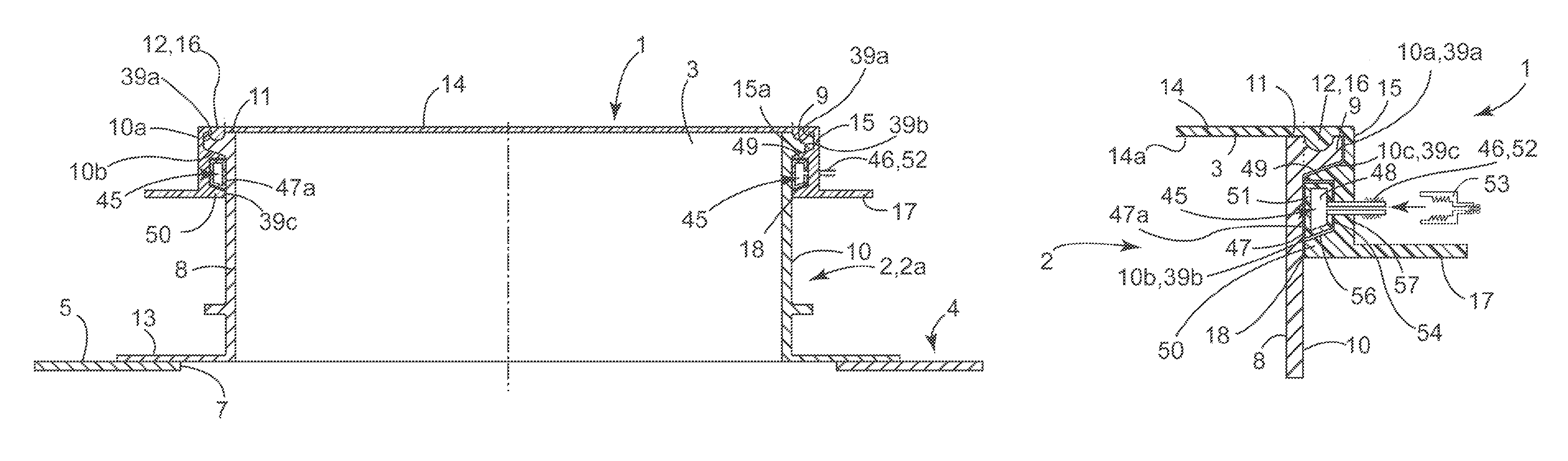

A first piece mounted in a fixed and rigid manner on a rigid annular collar of a second piece having an end opening, includes a transversal wall; an annular wall forming a skirt, whose inner face includes a part having a larger diameter and a part having a smaller diameter; a holding toric body adjacent to the inner face, deformable between a retracted state and an expanded state, and filled with a swelling medium; and at least one inlet/outlet port for the swelling media, communicating with the holding body. The first piece is dimensioned in relation to the collar, so as to enable the first piece to be slipped onto, or removed from, the second piece, when the holding body is in the retracted state, and to be mounted onto the collar in a fixed, rigid and tight manner, when the holding body is in the expanded state.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B65D Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 12, 2026 |
