Food-drying device and related drive mechanism
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 12, 2015
Grant Date -
Jul 18, 2013
app pub date -
Apr 17, 2012
filing date -
Jan 13, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

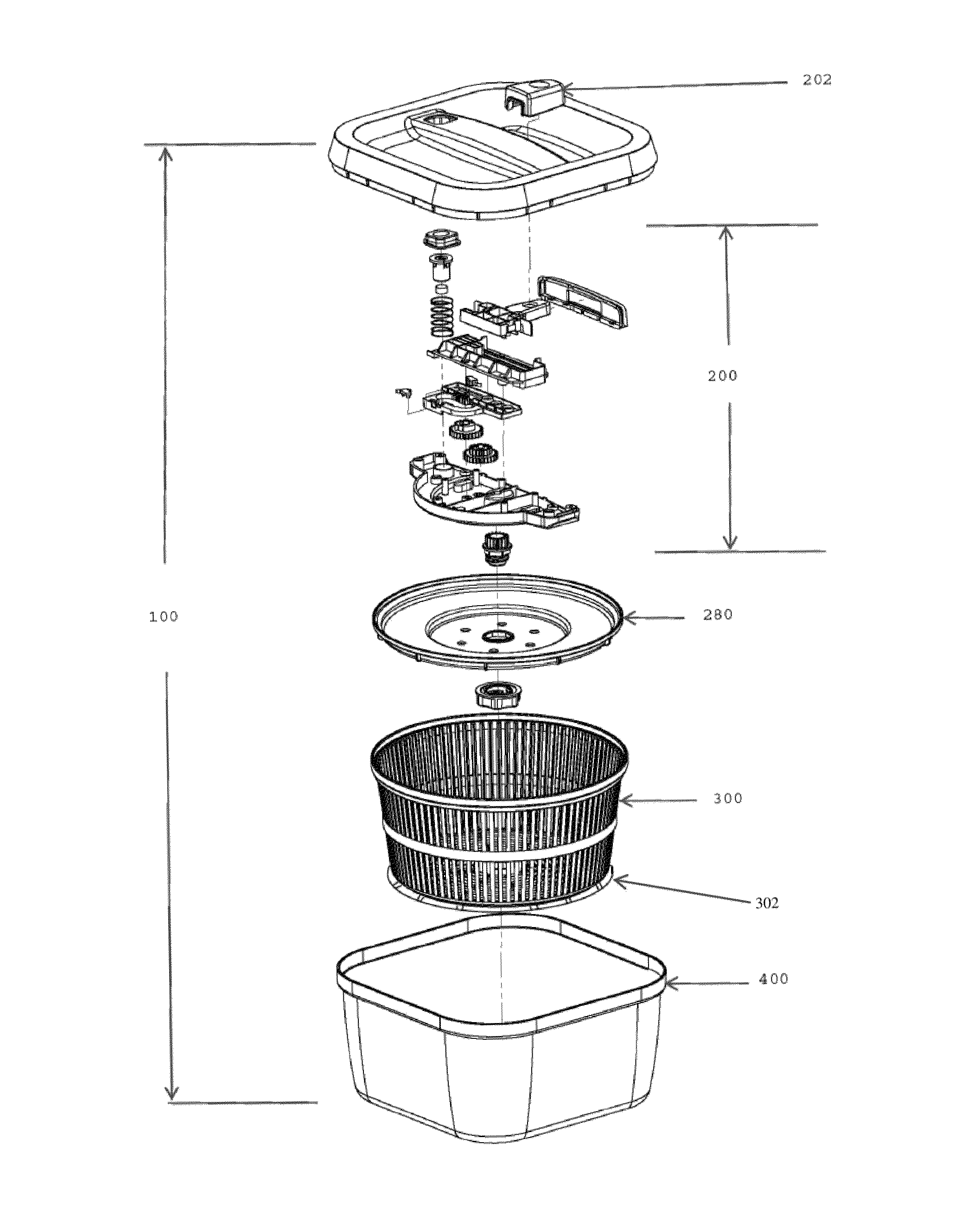

The current invention discloses a food-drying device that includes a container, a drying assembly having a plurality of bores, and a drive mechanism. The drying assembly is disposed in the container and is capable of being rotated relative to the container. The drive mechanism rotates the drying assembly relative to the container. The drive mechanism includes a reciprocating handle movable between a first position and a second position along a linear direction, and a conversion mechanism for converting reciprocating movement of the reciprocating handle to rotary motion of the drying assembly from force supplied by a user to actuate the reciprocating handle moving from the first position to the second position, and from force supplied by the user to actuate the reciprocating handle moving from the second position to the first position.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| HK | A2 | HK1169778 | Jan 13, 2012 |
| CN | U | CN202653117 | Apr 13, 2012 |
| CN | B | CN103202522 | Apr 13, 2012 |
| WO | A1 | WO2013104282 | Jan 06, 2013 |
International Classification(s)
- 2012 Application Filing Year
- A23N Class
- 42 Applications Filed
- 33 Patents Issued To-Date
- 78.58 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- A23N Class
- 28.26 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 12, 2026 |
