Method of conserving power based on electronic device's I/O pattern
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 5, 2015
Grant Date -
Apr 3, 2014
app pub date -
Dec 14, 2012
filing date -
Oct 1, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

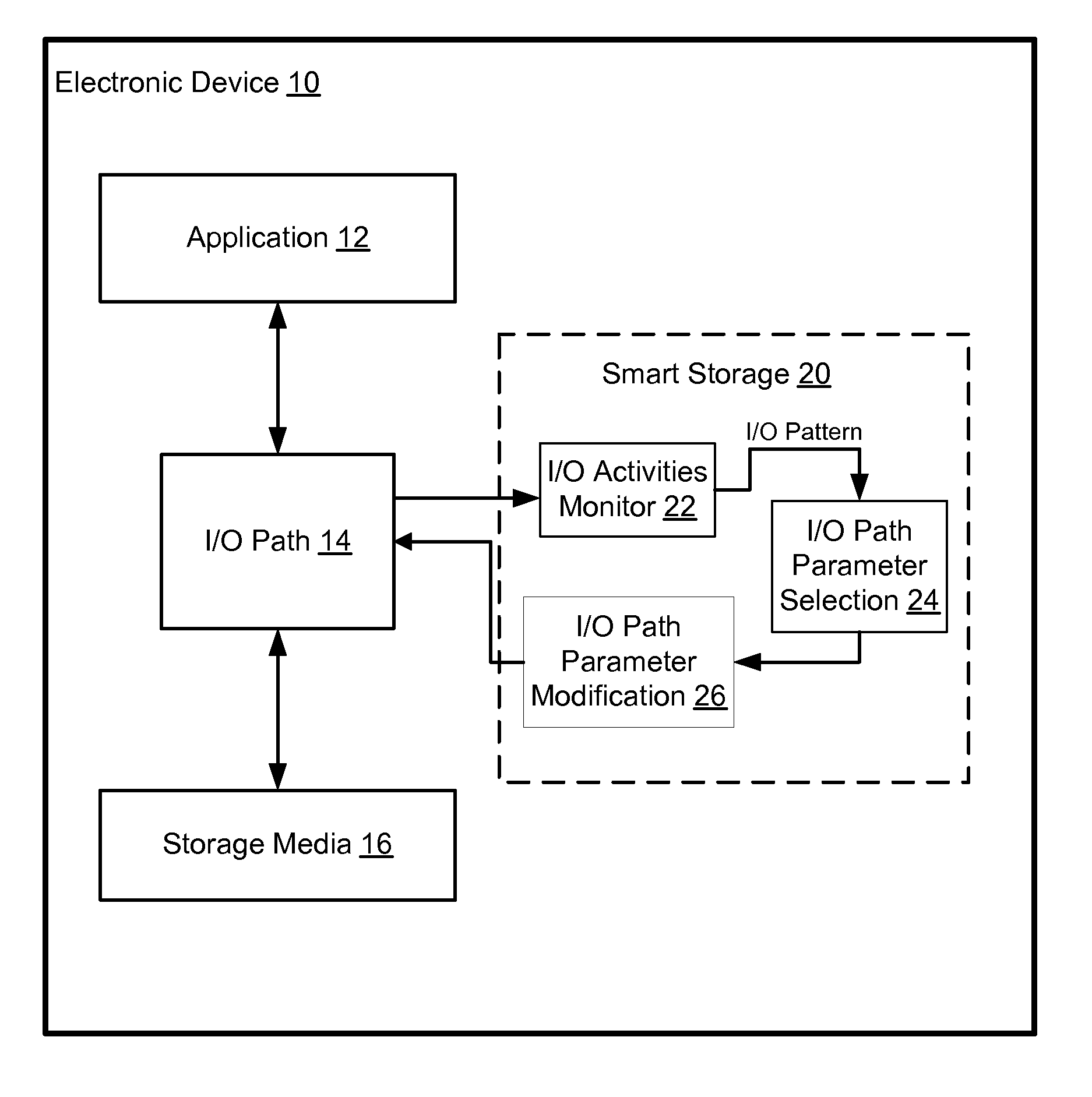

A method of affecting power used by an electronic device is provided for an electronic device having storage media and running at least one application. Each application interfaces with the storage media through an input/output (I/O) path executing I/O activities that access the storage media in accordance with configurable parameters of the I/O path. A run-time I/O pattern defined by the I/O activities is determined during a run-time period of the electronic device. At least one of the I/O path's configurable parameters is then modified based on the run-time I/O pattern. The method is readily adapted for power conservation by providing selections for the configurable parameters with each of the selections optimizing power usage for a hypothetical I/O pattern. Then, one or more configurable parameters are modified in accordance with one of the selections for which the hypothetical I/O pattern associated therewith is closest to the run-time I/O pattern.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2012 Application Filing Year
- G06F Class
- 48051 Applications Filed
- 40472 Patents Issued To-Date
- 84.23 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- G06F Class
- 8.54 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 5, 2026 |
