Fitting for windows or doors
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 5, 2015
Grant Date -
Jan 10, 2013
app pub date -
Jul 3, 2012
filing date -
Jul 5, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

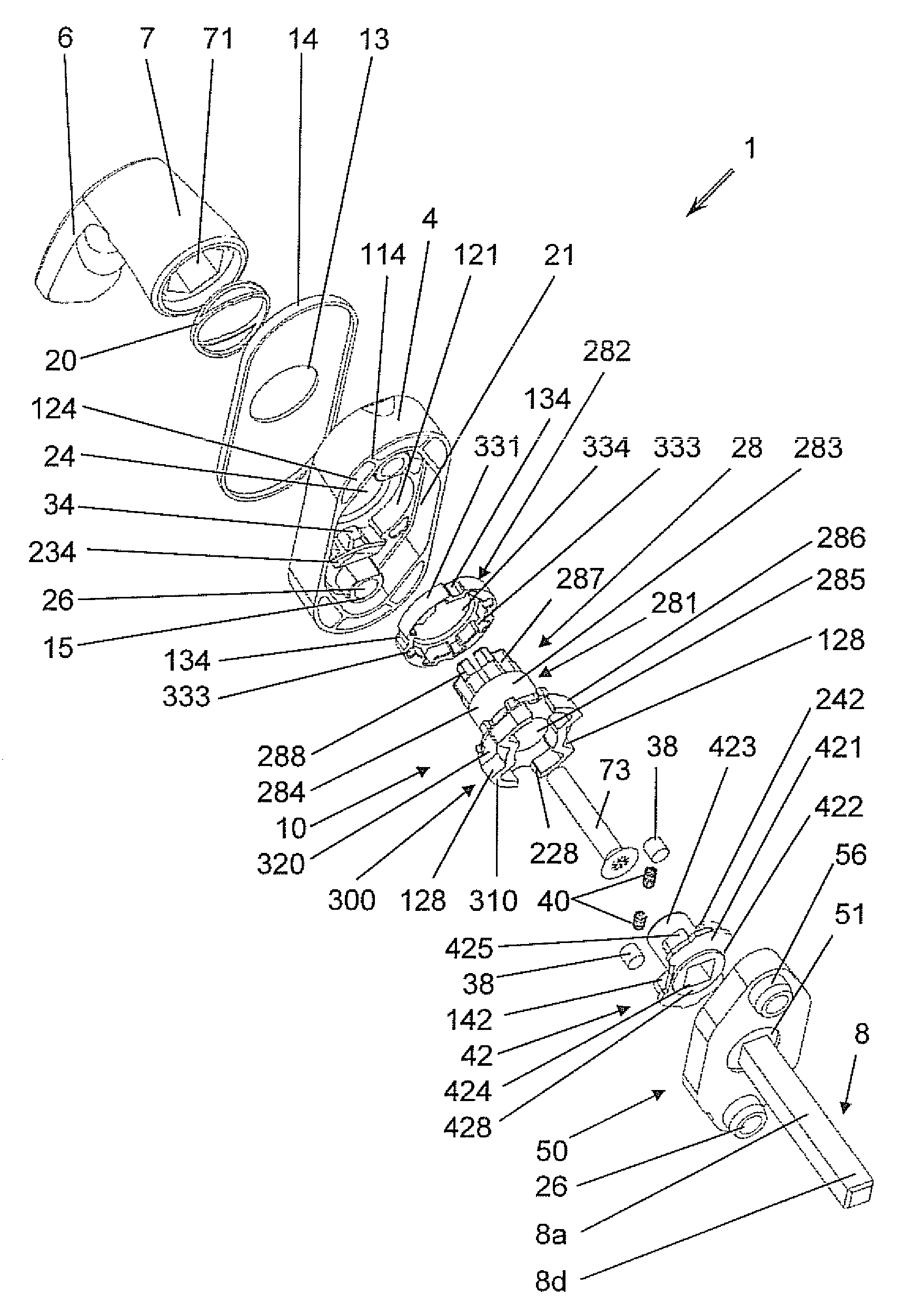

A window or door fitting for actuation of a mechanism integrated in a window or a door has a stop body that can be attached to the window or the door, a handle, that is rotatably mounted on the stop body in an axially fixed manner, a polygonal element for the mechanical coupling of the fitting to the mechanism integrated in the window of the door, and a coupling configuration formed between the handle and the polygonal element, with which a torque transference from the handle to the polygonal element can be effected, but can be blocked in the direction from the polygonal element to the handle. The coupling configuration has two driving elements for this, wherein a first diving element is connected to the handle in a rotationally locked manner, while a second driving element accommodates the polygon in a rotationally fixed manner.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- E05B Class
- 532 Applications Filed
- 445 Patents Issued To-Date
- 83.65 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- E05B Class
- 10.62 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 5, 2026 |
